Summary of Contents for HIKVISION DS-K1T802 Series
- Page 1 Access Control Terminal Quick Start Guide...
- Page 2 This Manual is subject to domestic and international copyright protection. Hangzhou Hikvision Digital Technology Co., Ltd. (“Hikvision”) reserves all rights to this manual. This manual cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision.
- Page 3 PROFITS, BUSINESS INTERRUPTION, SECURITY BREACHES, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF OR RELIANCE ON THIS MANUAL, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR...
- Page 4 Access Control Terminal·Quick Start Guide Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 5 Access Control Terminal·Quick Start Guide therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU. 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
- Page 6 Access Control Terminal·Quick Start Guide Warnings Follow these Cautions Follow these safeguards to prevent precautions to prevent serious injury or death. potential injury or material damage. Warnings All the electronic operation should be strictly compliance with the electrical safety regulations, fire prevention regulations and other related regulations in your local region.
- Page 7 Access Control Terminal·Quick Start Guide equipment installation on vibrations surface or places subject to shock (ignorance can cause equipment damage). Do not place the device in extremely hot (refer to the specification of the device for the detailed operating temperature), cold, dusty or damp locations, and do not expose it to high electromagnetic radiation.
-
Page 8: Table Of Contents
Access Control Terminal·Quick Start Guide Table of Contents 1 Overview ................1 1.1 Introduction ................1 1.2 Main Features ................ 1 2 Appearance ................3 2.1 Appearance of the Termianl ........... 3 2.2 Description of Keypad Items ..........4 3 Terminal Connection .............. 4 3.1 Terminal Description .............. -
Page 9: Overview
Access Control Terminal·Quick Start Guide 1 Overview 1.1 Introduction DS-K1T802 Series Standalone Access Control Terminal DS-K1T802 is a series of standalone access control terminal designed with a LCD display screen. It supports TCP/IP network communication, offline records storage functions and so on. - Page 10 Access Control Terminal·Quick Start Guide Supports time synchronization via NTP, manual or automatic method Supports online upgrade, remote control of the doors, first card open function, first card authentication function, super card, super password function and device rebooting control ...
-
Page 11: Appearance

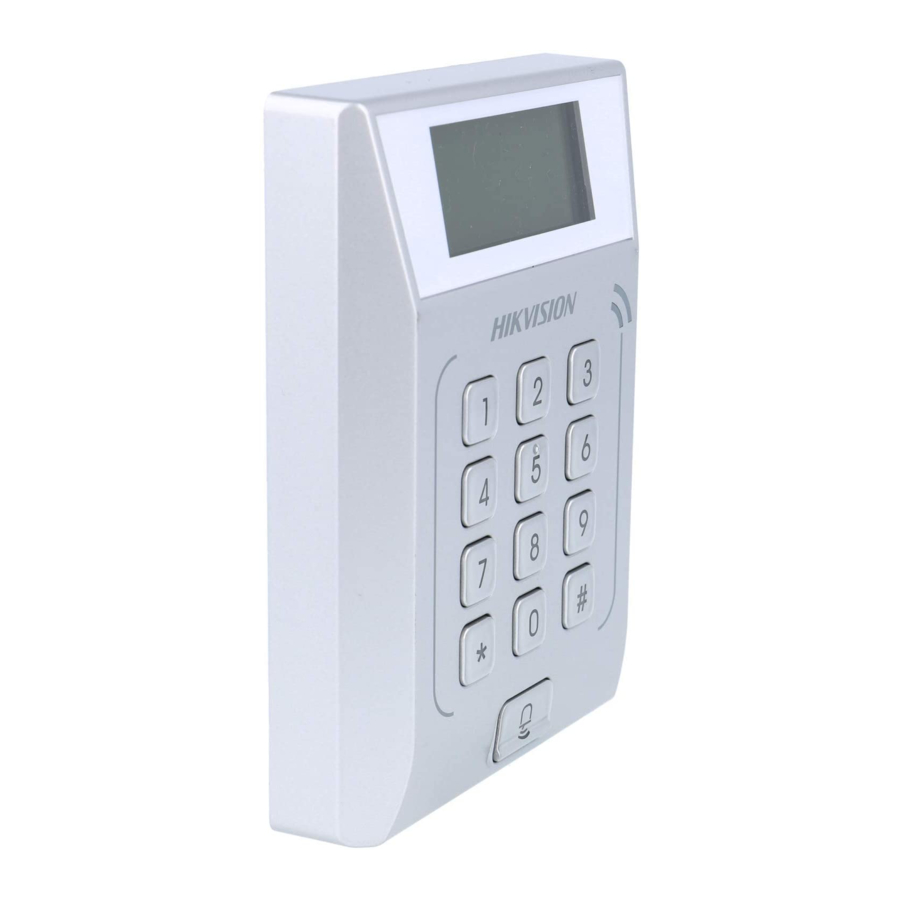

Access Control Terminal·Quick Start Guide 2 Appearance 2.1 Appearance of the Termianl Please refer to the following content for detailed information of the terminal. Appearance of Access Control Terminal Description of Access Control Terminal Name Description First Line: display date Second Line: display time Display Third Line: display authentication information... -
Page 12: Description Of Keypad Items
Access Control Terminal·Quick Start Guide The operation of pressing Solid Red for a keys or swiping card is time period invalid. Numeric key 0 to 9, Clearing key *, and Keypad Confirming key # Door Bell Door Bell Ring Wiring Wire the device with power supply, doorbell, Terminals and door lock. -
Page 13: External Device Wiring
Access Control Terminal·Quick Start Guide Terminal Description Description Color 12V DC Power Input Black Bell+ Orange Bell Bell- Yellow BUTTON_IN Purple DOOR_COM Green DOOR_NO/NC Blue Door Lock SENSOR_IN White Black 12V_LOCK Brown 3.2 External Device Wiring Power Supply Wiring Doorbell Wiring Power Supply Doorbell Wiring... - Page 14 Access Control Terminal·Quick Start Guide Connection Diagram Diagram Door Button Wiring Door Lock Wiring Door Button Wiring Door Lock Wiring Diagram Diagram Door Magnetic Wiring Door Magnetic Wiring Diagram...
-
Page 15: Installation
Access Control Terminal·Quick Start Guide 4 Installation Before you start Please make sure that the device in the package is in good condition and all the assembly parts are included. Make sure that all the related equipment is power-off during the installation. -
Page 16: Mounting Without Gang Box
Access Control Terminal·Quick Start Guide Install the Attach the Front Mounting Base Cover 4. Connect the corresponded cables. 5. Align the buckle of the front cover with the slot of the mounting base, and hang the front cover onto the mounting base. - Page 17 Access Control Terminal·Quick Start Guide 3. Align the screw holes on the base with the screw sockets on the wall. 4. Attach the mounting base on the wall with Inserting 4 KA4*22-SUS screws (supplied) into the 4 screw sockets. Install the Attach the Front Mounting Base Cover...
-
Page 18: Activating The Access Control Terminal
Access Control Terminal·Quick Start Guide 5 Activating the Access Control Terminal Purpose: You are required to activate the terminal first before using it. Activation via SADP, and Activation via client software are supported. The default values of the control terminal are as follows. ... - Page 19 Access Control Terminal·Quick Start Guide SADP Interface 3. Create a password and input the password in the password field, and confirm the password. STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
-
Page 20: Activating Via Client Software
Access Control Terminal·Quick Start Guide Modify Network Parameters Interface 6. Input the password and click the Modify button to activate your IP address modification. 5.2 Activating via Client Software The client software is versatile video management software for multiple kinds of devices. Get the client software from the supplied disk or the official website, and install the software according to the prompts. - Page 21 Access Control Terminal·Quick Start Guide 1. Run the client software and the control panel of the software pops up, as shown in the figure below. Control Panel Interface 2. Click the Device Management to enter the Device Management interface. 3. Check the device status from the device list, and select an inactive device.
- Page 22 Access Control Terminal·Quick Start Guide STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
- Page 23 Access Control Terminal·Quick Start Guide UD05637B...
