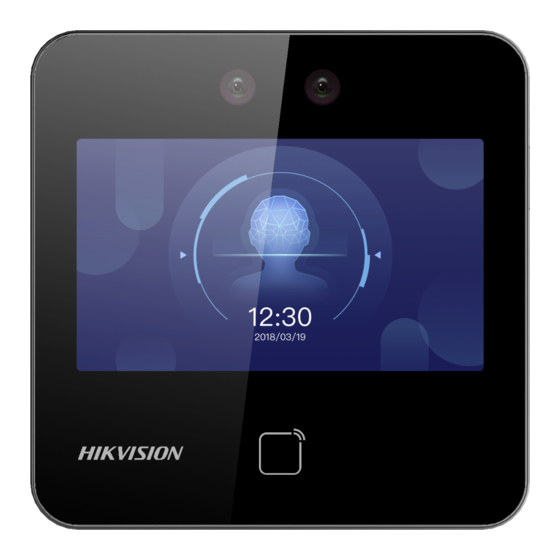

DS-K1T343 Series Face Recognition Terminal
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-K1T343 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-K1T343 Series

Summary of Contents for HIKVISION DS-K1T343 Series

  • Page 1 DS-K1T343 Series Face Recognition Terminal User Manual...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 During the use of device, personal data will be collected, stored and processed. To protect data, the development of Hikvision devices incorporates privacy by design principles. For example, for device with facial recognition features, biometrics data is stored in your device with encryption method;...
  • Page 4 DS-K1T343 Series Face Recognition Terminal User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury.
  • Page 5 DS-K1T343 Series Face Recognition Terminal User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 6 DS-K1T343 Series Face Recognition Terminal User Manual under the EMC Directive 2014/30/EU, RE Directive 2014/53/EU,the RoHS Directive 2011/65/EU 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
  • Page 7 DS-K1T343 Series Face Recognition Terminal User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Dangers and Cautions: Dangers: Neglecting any of the warnings may cause serious injury or death.
  • Page 8 DS-K1T343 Series Face Recognition Terminal User Manual Cautions: Do not drop the device or subject it to physical shock, and do not expose it to high ● electromagnetism radiation. Avoid the equipment installation on vibrations surface or places subject to shock (ignorance can cause equipment damage).
  • Page 9 DS-K1T343 Series Face Recognition Terminal User Manual Available Models Product Name Model Wireless Face Recognition Terminal DS-K1T343MX 13.56 MHz Card Presenting Frequency DS-K1T343MWX 13.56 MHz Card Presenting Frequency, Wi-Fi DS-K1T343MFX 13.56 MHz Card Presenting Frequency DS-K1T343MFWX 13.56 MHz Card Presenting...

  • Page 10: Table Of Contents

    DS-K1T343 Series Face Recognition Terminal User Manual Contents Chapter 1 Overview ........................1 1.1 Overview ..........................1 1.2 Features ..........................1 Chapter 2 Appearance ........................ 2 Chapter 3 Installation ......................... 4 3.1 Installation Environment ......................4 3.2 Install with Gang Box ......................4 3.3 Base Mounting ........................
  • Page 11 DS-K1T343 Series Face Recognition Terminal User Manual 6.6 Set Administrator ......................... 24 Chapter 7 Basic Operation ......................27 7.1 Login ............................ 27 7.1.1 Login by Administrator ....................27 7.1.2 Login by Activation Password ..................28 7.1.3 Forgot Password ......................29 7.2 Communication Settings ......................
  • Page 12 DS-K1T343 Series Face Recognition Terminal User Manual 7.6 Basic Settings ........................46 7.7 Set Biometric Parameters ....................49 7.8 Set Access Control Parameters .................... 52 7.9 Time and Attendance Status Settings .................. 54 7.9.1 Disable Attendance Mode via Device ................. 55 7.9.2 Set Manual Attendance via Device ................
  • Page 13 DS-K1T343 Series Face Recognition Terminal User Manual 9.5.1 Set Local Parameters ....................89 9.5.2 View Device Information ..................... 90 9.5.3 Set Time ........................90 9.5.4 Set DST ........................91 9.5.5 View Open Source Software License ................91 9.5.6 Upgrade and Maintenance ..................91 9.5.7 Log Query ........................
  • Page 14 DS-K1T343 Series Face Recognition Terminal User Manual 10.3 Group Management ......................130 10.3.1 Add Group ....................... 130 10.3.2 Import Resources to Group ..................130 10.4 Person Management ......................131 10.4.1 Add Organization ....................131 10.4.2 Import and Export Person Identify Information ............131 10.4.3 Get Person Information from Access Control Device ..........

  • Page 15: Chapter 1 Overview

    DS-K1T343 Series Face Recognition Terminal User Manual Chapter 1 Overview 1.1 Overview Face recognition terminal is a kind of access control device for face recognition, which is mainly applied in security access control systems, such as logistic centers, airports, university campuses, alarm centrals, dwellings, etc.

  • Page 16: Chapter 2 Appearance

    DS-K1T343 Series Face Recognition Terminal User Manual Chapter 2 Appearance The appearance of the device with fingerprint is as follows: Figure 2-1 Appearance（With Fingerprint) The appearance of the device without fingerprint is as follows: Figure 2-2 Appearance（Without Fingerprint)
  • Page 17 DS-K1T343 Series Face Recognition Terminal User Manual Table 2-1 Appearance Description Name Loudspeaker USB Interface Touch Screen IR Light Camera Camera IR Light Card Presenting Area Fingerprint Module Note Only devices that support the fingerprint function contain a fingerprint module.

  • Page 18: Chapter 3 Installation

    DS-K1T343 Series Face Recognition Terminal User Manual Chapter 3 Installation 3.1 Installation Environment Avoid backlight, direct sunlight, and indirect sunlight. ● For better recognition, there should be light source in or near the installation environment. ● Note For details about installation environment, see Tips for Installation Environment.
  • Page 19 DS-K1T343 Series Face Recognition Terminal User Manual Figure 3-2 Install Mounting Plate 3. Route the cables through the cable hole of the mounting plate, and connect to the corresponding peripherals cables. 4. Buckle into the mounting plate after aligning the device with the mounting plate. Use 1 supplied...

  • Page 20: Base Mounting

    DS-K1T343 Series Face Recognition Terminal User Manual Figure 3-3 Secure Device 3.3 Base Mounting Steps 1. Route the cables through the cable hole of the bracket, and connect the terminals with peripherals cables. Place the bracket close to the back side of the device.
  • Page 21 DS-K1T343 Series Face Recognition Terminal User Manual Figure 3-5 Fasten Bracket 3. Buckle into the bracket to the end to complete the installation. Figure 3-6 Complete Installation...

  • Page 22: Chapter 4 Wiring

    DS-K1T343 Series Face Recognition Terminal User Manual Chapter 4 Wiring You can connect the RS-485 terminal with the RS-485 card reader, connect the NC and COM terminal with the door lock, connect the SENSOR terminal with the door contact, the BTN/GND terminal with the exit button, and connect the Wiegand terminal with the Wiegand card reader or the access controller.

  • Page 23: Wire Normal Device

    DS-K1T343 Series Face Recognition Terminal User Manual Group Function Color Name Description White Wiegand Wiring 1 Black Ground Group D Door Lock White/Purple Lock Wiring (NC) White/Yellow Common White/Red Lock Wiring (NO) Yellow/Green SENSOR Door Contact Black Ground Yellow/Grey BUTTON...

  • Page 24: Wire Secure Door Control Unit

    DS-K1T343 Series Face Recognition Terminal User Manual Figure 4-1 Device Wiring Note You should set the face recognition terminal's Wiegand direction as Input to connect to a ● Wiegand card reader. If connects to an access controller, you should set the Wiegand direction as Output to transmit authentication information to the access controller.

  • Page 25: Wire Fire Module

    DS-K1T343 Series Face Recognition Terminal User Manual Figure 4-2 Secure Door Control Unit Wiring Note The secure door control unit should connect to an external power supply separately. The suggested external power supply is 12V, 0.5A. 4.4 Wire Fire Module 4.4.1 Wiring Diagram of Door Open When Powering Off...
  • Page 26 DS-K1T343 Series Face Recognition Terminal User Manual Figure 4-3 Wire Device Figure 4-4 Wire Secure Door Control Unit Type 2 Note The fire system (NO and COM, normally open when powering off) is connected with the lock and the power supply in series. When an fire alarm is triggered, the door remains open. In normal...

  • Page 27: Wiring Diagram Of Door Locked When Powering Off

    DS-K1T343 Series Face Recognition Terminal User Manual Figure 4-5 Wiring Device Figure 4-6 Wiring Secure Door Control Unit 4.4.2 Wiring Diagram of Door Locked When Powering Off Lock Type: Cathode Lock, Electric Lock, and Electric Bolt (NC) Security Type: Door Locked When Powering Off...
  • Page 28 DS-K1T343 Series Face Recognition Terminal User Manual Note The Uninterpretable Power Supply (UPS) is required. ● The fire system (NC and COM, normally closed when powering off) is connected with the lock ● and the power supply in series. When an fire alarm is triggered, the door remains open. In normal times, NC and COM are open.

  • Page 29: Chapter 5 Activation

    DS-K1T343 Series Face Recognition Terminal User Manual Chapter 5 Activation You should activate the device before the first login. After powering on the device, the system will switch to Device Activation page. Activation via the device, SADP tool and the client software are supported.

  • Page 30: Activate Via Web Browser

    DS-K1T343 Series Face Recognition Terminal User Manual characters) in order to increase the security of your product. And we recommend you change your password regularly, especially in the high security system, changing the password monthly or weekly can better protect your product.

  • Page 31: Activate Via Sadp

    Get the SADP software from the supplied disk or the official website http:// ● www.hikvision.com/en/ , and install the SADP according to the prompts. The device and the PC that runs the SADP tool should be within the same subnet.

  • Page 32: Activate Device Via Ivms-4200 Client Software

    DS-K1T343 Series Face Recognition Terminal User Manual Status of the device becomes Active after successful activation. 5. Modify IP address of the device. 1) Select the device. 2) Change the device IP address to the same subnet as your computer by either modifying the IP address manually or checking Enable DHCP.
  • Page 33 DS-K1T343 Series Face Recognition Terminal User Manual Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 34: Chapter 6 Quick Operation

    DS-K1T343 Series Face Recognition Terminal User Manual Chapter 6 Quick Operation 6.1 Select Language You can select a language for the device system. After the device activation, you can select a language for the device system. Figure 6-1 Select System Language By default, the system language is English.

  • Page 35: Set Network Parameters

    DS-K1T343 Series Face Recognition Terminal User Manual Figure 6-2 Welcome Page 2. Tap OK to save. Note You can also change the settings in System Settings. ● If you install the device indoors near the window or the face recognition function is not ●...

  • Page 36: Access To Platform

    DS-K1T343 Series Face Recognition Terminal User Manual Figure 6-3 Select Network Note Disconnect the wired network before connecting a Wi-Fi. 2. Tap Next. Wired Network Note Make sure the device has connected to a network. If enable DHCP, the system will assign the IP address and other parameters automatically.

  • Page 37: Privacy Settings

    DS-K1T343 Series Face Recognition Terminal User Manual Figure 6-4 Access to Hik-Connect 2. Tap Next. 6.5 Privacy Settings After activation, selecting application mode, and selecting network, you should set the privacy parameters, including the picture uploading and storage. Select parameters according to your actual needs.

  • Page 38: Set Administrator

    DS-K1T343 Series Face Recognition Terminal User Manual Figure 6-5 Privacy Upload Captured Pic. When Auth. (Upload Captured Picture When Authenticating) Upload the pictures captured when authenticating to the platform automatically. Save Captured Pic. When Auth. (Save Captured Picture When Authenticating) If you enable this function, you can save the picture when Authenticating to the device.
  • Page 39 DS-K1T343 Series Face Recognition Terminal User Manual Steps 1. Optional: Tap Skip to skip adding administrator if required. 2. Enter the administrator's name (optional) and tap Next. Figure 6-6 Add Administrator Page 3. Select a credential to add. Note Up to one credential should be added.
  • Page 40 DS-K1T343 Series Face Recognition Terminal User Manual The device' Wi-Fi is enabled and connected/not connected/enabled but not connected. Shortcut Keys Description Note You can configure those shortcut keys displayed on the screen. For details, see Basic Settings . Enter the device room No. and tap OK to call.

  • Page 41: Chapter 7 Basic Operation

    DS-K1T343 Series Face Recognition Terminal User Manual Chapter 7 Basic Operation 7.1 Login Login the device to set the device basic parameters. 7.1.1 Login by Administrator If you have added an administrator for the device, only the administrator can login the device for device operation.

  • Page 42: Login By Activation Password

    DS-K1T343 Series Face Recognition Terminal User Manual Figure 7-2 Home Page Note The device will be locked for 30 minutes after 5 failed fingerprint or card attempts. 3. Optional: Tap and you can enter the device activation password for login.

  • Page 43: Forgot Password

    DS-K1T343 Series Face Recognition Terminal User Manual Figure 7-3 Home Page 7.1.3 Forgot Password If you forget the password during authentication, you can reset the password by imprting the key. Steps 1. Long tap on the initial page for 3 s and slide to the left/right by following the gesture and log in the page.

  • Page 44: Communication Settings

    DS-K1T343 Series Face Recognition Terminal User Manual 7.2 Communication Settings You can set the wired network, the Wi-Fi parameter, the RS-485 parameters, the Wiegand parameters, ISUP and access to Hik-Connect on the communication settings page. 7.2.1 Set Wired Network Parameters You can set the device wired network parameters, including the IP address, the subnet mask, the gateway, and DNS parameters.

  • Page 45: Set Wi-Fi Parameters

    DS-K1T343 Series Face Recognition Terminal User Manual Note The device's IP address and the computer IP address should be in the same IP segment. 4. Set the DNS parameters. You can enable Auto Obtain DNS, set the preferred DNS server and the alternate DNS server.

  • Page 46: Set Rs-485 Parameters

    DS-K1T343 Series Face Recognition Terminal User Manual Note Only digits, letters, and special characters are allowed in the password. 5. Set the Wi-Fi's parameters. - By default, DHCP is enable. The system will allocate the IP address, the subnet mask, and the gateway automatically.

  • Page 47: Set Wiegand Parameters

    DS-K1T343 Series Face Recognition Terminal User Manual Note If you select Access Controller: If connect the device to a terminal via the RS-485 interface, set the RS-485 address as 2. If you connect the device to a controller, set the RS-485 address according to the door No.

  • Page 48: Set Isup Parameters

    DS-K1T343 Series Face Recognition Terminal User Manual Note If you change the external device, and after you save the device parameters, the device will reboot automatically. 7.2.5 Set ISUP Parameters Set ISUP parameters and the device can upload data via ISUP protocol.
  • Page 49 DS-K1T343 Series Face Recognition Terminal User Manual Figure 7-8 ISUP Settings 2. Enable the ISUP function and set the ISUP server parameters. ISUP Version Set the ISUP version according to your actual needs. Central Group Enable central group and the data will be uploaded to the center group.

  • Page 50: Platform Access

    DS-K1T343 Series Face Recognition Terminal User Manual Enable ISUP function and the data will be uploaded via EHome protocol. Address Type Select an address type according to your actual needs. IP Address Set the ISUP server's IP address. Port No.

  • Page 51: User Management

    DS-K1T343 Series Face Recognition Terminal User Manual 7.3 User Management On the user management interface, you can add, edit, delete and search the user. 7.3.1 Add Administrator The administrator can log in the device backend and configure the device parameters.

  • Page 52: Add Face Picture

    DS-K1T343 Series Face Recognition Terminal User Manual Note The employee ID should be less than 32 characters. And it can be a combination of lower ● letters, upper letters, and numbers. The employee ID should not be duplicated. ● 4. Tap the Name field and input the user name on the soft keyboard.
  • Page 53 DS-K1T343 Series Face Recognition Terminal User Manual Note The employee ID should be less than 32 characters. And it can be a combination of lower ● letters, upper letters, and numbers. The employee ID should not be duplicated. ● 4. Tap the Name field and input the user name on the soft keyboard.

  • Page 54: Add Fingerprint

    DS-K1T343 Series Face Recognition Terminal User Manual 9. Set the user role. Administrator The user is the administrator. Except for the normal attendance function, the user can also enter the Home page to operate after authenticating the permission. Normal User The User is the normal user.

  • Page 55: Add Card

    DS-K1T343 Series Face Recognition Terminal User Manual For details about the instructions of scanning fingerprints, see Tips for Scanning Fingerprint . 7. Set the user role. Administrator The user is the administrator. Except for the normal attendance function, the user can also enter the Home page to operate after authenticating the permission.

  • Page 56: View Pin Code

    DS-K1T343 Series Face Recognition Terminal User Manual Note The card No. cannot be empty. ● Up to 20 characters are allowed in the card No. ● The card No. cannot be duplicated. ● 8. Configure the card type. 9. Set the user role.

  • Page 57: Set Authentication Mode

    DS-K1T343 Series Face Recognition Terminal User Manual The user is the administrator. Except for the normal attendance function, the user can also enter the Home page to operate after authenticating the permission. Normal User The User is the normal user. The user can only authenticate or take attendance on the initial page.

  • Page 58: Data Management

    DS-K1T343 Series Face Recognition Terminal User Manual 7.4 Data Management You can delete data, import data, and export data. 7.4.1 Delete Data Delete user data. On the Home page, tap Data → Delete Data → User Data . All user data added in the device will be deleted.

  • Page 59: Export Data

    DS-K1T343 Series Face Recognition Terminal User Manual 7.4.3 Export Data Steps 1. Plug a USB flash drive in the device. 2. On the Home page, tap Data → Export Data . 3. Tap Face Data, Event Data, User Data, or Access Control Parameters.

  • Page 60: Authenticate Via Multiple Credential

    DS-K1T343 Series Face Recognition Terminal User Manual Enter the pin code to authenticate via PIN code. If authentication completed, a prompt "Authenticated" will pop up. 7.5.2 Authenticate via Multiple Credential Before You Start Set the user authentication type before authentication. For details, see Set Authentication Mode .
  • Page 61 DS-K1T343 Series Face Recognition Terminal User Manual Figure 7-10 Basic Settings Page Shortcut Key Choose the shortcut key that displayed on the authentication page, including the QR code function, the call function, call type, and the password entering function.
  • Page 62 DS-K1T343 Series Face Recognition Terminal User Manual Note If the combination authentication of face and QR code is supported, and the QR code ● shortcut key is disabled ( there is no QR code shortcut key icon in the authentication page), you can scan the QR code in the middle of the authentication page to authenticate.

  • Page 63: Set Biometric Parameters

    DS-K1T343 Series Face Recognition Terminal User Manual Building No. Set the device installed building No. Unit No. Set the device installed unit No. 7.7 Set Biometric Parameters You can customize the face parameters to improve the face recognition performance. The...
  • Page 64 DS-K1T343 Series Face Recognition Terminal User Manual Figure 7-11 Biometric Parameters Page Table 7-1 Face Picture Parameters Parameter Description Select Application Select either others or indoor according to actual environment. Mode Face Liveness Level After enabling face anti-​ s poofing function, you can set the matching security level when performing live face authentication.
  • Page 65 DS-K1T343 Series Face Recognition Terminal User Manual Parameter Description Face Recognition The time interval between two continuous face recognitions when Interval authenticating. Note You can input the number from 1 to 10. Face 1:N Security Level Set the matching threshold when authenticating via 1:N matching mode.

  • Page 66: Set Access Control Parameters

    DS-K1T343 Series Face Recognition Terminal User Manual Parameter Description Set the matching value when authenticating with face mask via ECO mode 1:N matching mode. The larger the value, the smaller the false accept rate and the larger the false rejection rate.
  • Page 67 DS-K1T343 Series Face Recognition Terminal User Manual Figure 7-12 Access Control Parameters The available parameters descriptions are as follows: Table 7-2 Access Control Parameters Descriptions Parameter Description Terminal Auth. Mode (Terminal Select the face recognition terminal's authentication mode. You Authentication Mode)

  • Page 68: Time And Attendance Status Settings

    DS-K1T343 Series Face Recognition Terminal User Manual Parameter Description Note Only the device with the fingerprint module supports the ● fingerprint related function. Biometric recognition products are not 100% applicable to ● anti-spoofing environments. If you require a higher security level, use multiple authentication modes.

  • Page 69: Disable Attendance Mode Via Device

    DS-K1T343 Series Face Recognition Terminal User Manual 7.9.1 Disable Attendance Mode via Device Disable the attendance mode and the system will not display the attendance status on the initial page. Tap T&A Status to enter the T&A Status page. Figure 7-13 Disable Attendance Mode Set the Attendance Mode as Disable.

  • Page 70: Set Auto Attendance Via Device

    DS-K1T343 Series Face Recognition Terminal User Manual Figure 7-14 Manual Attendance Mode 3. Enable the Attendance Status Required. 4. Enable a group of attendance status. Note The Attendance Property will not be changed. 5. Optional: Select an status and change its name if required.
  • Page 71 DS-K1T343 Series Face Recognition Terminal User Manual Steps 1. Tap T&A Status to enter the T&A Status page. 2. Set the Attendance Mode as Auto. Figure 7-15 Auto Attendance Mode 3. Enable the Attendance Status function. 4. Enable a group of attendance status.

  • Page 72: Set Manual And Auto Attendance Via Device

    DS-K1T343 Series Face Recognition Terminal User Manual Example If set the Break Out as Monday 11:00, and Break In as Monday 12:00, the valid user's authentication from Monday 11:00 to 12:00 will be marked as break. 7.9.4 Set Manual and Auto Attendance via Device Set the attendance mode as Manual and Auto, and the system will automatically change the attendance status according to the configured schedule.

  • Page 73: System Maintenance

    DS-K1T343 Series Face Recognition Terminal User Manual 1) Tap Attendance Schedule. 2) Select Monday, Tuesday, Wednesday, Thursday, Friday, Saturday, or Sunday. 3) Set the selected attendance status's start time of the day. 4) Tap OK. 5) Repeat step 1 to 4 according to your actual needs.
  • Page 74 DS-K1T343 Series Face Recognition Terminal User Manual Figure 7-17 Maintenance Page System Information You can view the device information including serial No., firmware version, MCU version, MAC address, production data, device QR code, open source code license. Note The page may vary according to different device models. Refers to the actual page for details.
  • Page 75 DS-K1T343 Series Face Recognition Terminal User Manual All parameters, except for the communication settings, remotely imported user information, will be restored to the default settings. The system will reboot to take effect. Reboot The device will reboot after the confirmation.

  • Page 76: Chapter 8 Configure The Device Via The Mobile Browser

    DS-K1T343 Series Face Recognition Terminal User Manual Chapter 8 Configure the Device via the Mobile Browser 8.1 Login You can login via mobile browser. Note Parts of the model supports Wi-Fi settings. ● Make sure the device is activated. ●...
  • Page 77 DS-K1T343 Series Face Recognition Terminal User Manual Figure 8-1 Add User 2) Set the following parameters. Employee ID Enter the employee ID. The Employee ID cannot be 0 or exceed 32 characters. It can be a combination of uppercase, lowercase letters and numbers.

  • Page 78: Configuration

    DS-K1T343 Series Face Recognition Terminal User Manual Enter your name. The name supports numbers, uppercase and lowercase English, and characters. The name is recommended to be within 32 characters. Gender Select the gender. User Role Select your user role. Floor No./Room No.

  • Page 79: View Open Source Software License

    DS-K1T343 Series Face Recognition Terminal User Manual Figure 8-2 Time Settings Tap Save to save the settings. Time Zone Select the time zone where the device is located from the drop-down list. Time Sync. Mode Manual By default, the device time should be synchronized manually. You can set the device time manually.
  • Page 80 DS-K1T343 Series Face Recognition Terminal User Manual Set Port Parameters You can set the HTTP, RTSP, HTTPS, and Server according to actual needs when accessing the device via network. Tap Configuration → Network → Basic Settings → Port , to enter the settings page.
  • Page 81 DS-K1T343 Series Face Recognition Terminal User Manual Figure 8-3 Wi-Fi 3. Add Wi-Fi. 1) Tap +.

  • Page 82: General Settings

    DS-K1T343 Series Face Recognition Terminal User Manual Figure 8-4 Add Wi-Fi 2) Enter Wi-Fi Name and Wi-Fi Password, and select Working Mode and Encryption Type. 3) Tap Save. 4. Select the Wi-Fi name, and tap Connect. 5. Enter the password and tap Save.
  • Page 83 DS-K1T343 Series Face Recognition Terminal User Manual Figure 8-5 Authentication Settings 2. Tap Save.
  • Page 84 DS-K1T343 Series Face Recognition Terminal User Manual Device Type Main Card Reader You can configure the device card reader's parameters. If you select main card reader, you need to configure the following parameters: Card Reader Type, Card Reader Description, Enable Card Reader, Authentication, Recognition Interval (s), Minimum Card Swiping Interval (s), Max.
  • Page 85 DS-K1T343 Series Face Recognition Terminal User Manual Communication with Controller Every (s) When the access control device cannot connect with the card reader for longer than the set time, the card reader will turn offline automatically. Max. Interval When Entering Password (s) When you entering the password on the card reader, if the interval between pressing two digits is longer than the set value, the digits you pressed before will be cleared automatically.
  • Page 86 DS-K1T343 Series Face Recognition Terminal User Manual Delete Old Events by Specified Time Set a time and all events will be deleted on the configured time. Overwriting The earliest 5% events will be deleted when the system detects the stored events has been over 95% of the full space.
  • Page 87 DS-K1T343 Series Face Recognition Terminal User Manual Set Card Security Tap Configuration → General Settings → Card Security to enter the settings page. Figure 8-7 Card Security Set the parameters and click Save. Enable NFC Card In order to prevent the mobile phone from getting the data of the access control, you can enable NFC card to increase the security level of the data.

  • Page 88: Face Parameters Settings

    DS-K1T343 Series Face Recognition Terminal User Manual Enable EM card and authenticating by presenting EM card is available. Note If the peripheral card reader supports presenting EM card, the function is also supported to enable/disable the EM card function. Enable CPU Card The device can read the data from CPU card when enabling the CPU card function.
  • Page 89 DS-K1T343 Series Face Recognition Terminal User Manual Face Parameters Settings Tap Configuration → Smart → Intelligent Parameter . Figure 8-9 Face Parameters Note The functions vary according to different models. Refers to the actual device for details. Set Face Parameters.
  • Page 90 DS-K1T343 Series Face Recognition Terminal User Manual Select Indoor or Others according to actual environment. In the outdoor scene, indoor scene near the window, or bad environment, you can choose Others. Note If the device is not activated by other tools, the device uses indoor as the environment mode by default.
  • Page 91 DS-K1T343 Series Face Recognition Terminal User Manual After enabling the face with mask detection, the system will recognize the captured face with mask picture. You can set face with mask1:N matching threshold, its ECO mode, and the strategy. None If the person do not wear a face mask when authenticating, the device will not prompt a notification.

  • Page 92: Video Intercom Settings

    DS-K1T343 Series Face Recognition Terminal User Manual Set the matching threshold when authenticating via ECO mode 1:N matching mode. The larger the value, the smaller the false accept rate and the larger the false rejection rate. The maximum value is 100.
  • Page 93 DS-K1T343 Series Face Recognition Terminal User Manual Note If you change the device type, you should reboot the device. Floor No. Set the device installed floor No. Door Station No. Set the device installed floor No. Note If you change the No., you should reboot the device.

  • Page 94: Access Control Settings

    DS-K1T343 Series Face Recognition Terminal User Manual Note Only the access control device and other devices or systems (such as door station, indoor station, main station, platform) are in the same IP segment, the two-way audio can be performed. Tap Configuration → Intercom → Linked Network Settings .
  • Page 95 DS-K1T343 Series Face Recognition Terminal User Manual Figure 8-13 Door Parameters Settings Page...
  • Page 96 DS-K1T343 Series Face Recognition Terminal User Manual Click Save to save the settings after the configuration. Door No. Select the device corresponded door No. Name You can create a name for the door. Open Duration Set the door unlocking duration. If the door is not opened for the set time, the door will be locked.
  • Page 97 DS-K1T343 Series Face Recognition Terminal User Manual Tap Configuration → Access Control → RS-485 . Figure 8-14 RS-485 Page Tap Save to save the settings after the configuration. Peripheral Type Select a peripheral from the drop-down list according the actual situation. You can select from Card Reader, Extension Module, or Access Controller.
  • Page 98 DS-K1T343 Series Face Recognition Terminal User Manual Note If you select Access Controller: If connect the device to a terminal via the RS-485 interface, set the RS-485 address as 2. If you connect the device to a controller, set the RS-485 address according to the door No.
  • Page 99 DS-K1T343 Series Face Recognition Terminal User Manual The can connect an external access controller. And the two devices will transmit the card No. via Wiegand 26 or 34. 4. Click Save to save the settings. Note If you change the peripheral, and after you save the device parameters, the device will reboot...

  • Page 100: Chapter 9 Operation Via Web Browser

    DS-K1T343 Series Face Recognition Terminal User Manual Chapter 9 Operation via Web Browser 9.1 Login You can login via the web browser or the remote configuration of the client software. Note Make sure the device is activated. For detailed information about activation, see Activation .
  • Page 101 DS-K1T343 Series Face Recognition Terminal User Manual Figure 9-1 Live View Page Function Descriptions: Select the image size when starting live view. Set the volume when starting live view. Note If you adjust the volume when starting two-way audio, you may hear a repeated sounds.

  • Page 102: Person Management

    DS-K1T343 Series Face Recognition Terminal User Manual Full screen view. 9.3 Person Management Click and add the person's information, including the basic information, card, authentication mode, and the picture. Click OK to save the person. Add Basic Information Click User → Add to enter the Add Person page.

  • Page 103: Search Event

    DS-K1T343 Series Face Recognition Terminal User Manual Click OK to save the settings. 9.4 Search Event Click Search to enter the Search page. Figure 9-2 Search Page Enter the search conditions, including the employee ID, the name, the card No., the start time, and the end time, and click Search.

  • Page 104: View Device Information

    DS-K1T343 Series Face Recognition Terminal User Manual Set Record File Saving Path Click Configuration → Local to enter the Local page. Select a record file size and select a saving path from your local computer and click Save. You can also click Open to open the file folder to view details.

  • Page 105: Set Dst

    DS-K1T343 Series Face Recognition Terminal User Manual Select the device located time zone from the drop-down list. Time Sync. You should set the NTP server's IP address, port No., and interval. Manual By default, the device time should be synchronized manually. You can set the device time manually or check Sync.
  • Page 106 DS-K1T343 Series Face Recognition Terminal User Manual Figure 9-5 Upgrade and Maintenance Page Click Reboot to start reboot the device. Restore Parameters Click Configuration → System → Maintenance → Upgrade & Maintenance . Restore All All parameters will be restored to the factory settings. You should activate the device before usage.

  • Page 107: Log Query

    DS-K1T343 Series Face Recognition Terminal User Manual Upgrade Click Configuration → System → Maintenance → Upgrade & Maintenance . Select an upgrade type from the drop-down list. Click and select the upgrade file from your local PC. Click Upgrade to start upgrading.

  • Page 108: Certificate Management

    DS-K1T343 Series Face Recognition Terminal User Manual 9.5.9 Certificate Management It helps to manage the server/client certificates and CA certificate. Note The function is only supported by certain device models. Create and Install Self-signed Certificate Steps 1. Go to Configuration → System → Security → Certificate Management .

  • Page 109: Change Administrator's Password

    DS-K1T343 Series Face Recognition Terminal User Manual Steps 1. Go to Configuration → System → Security → Certificate Management . 2. Create an ID in the Inport CA Certificate area. Note The input certificate ID cannot be the same as the existing ones.
  • Page 110 DS-K1T343 Series Face Recognition Terminal User Manual Note Some device models do not support Wi-Fi settings. Refer to the actual products when configuration. Set Basic Network Parameters Click Configuration → Network → Basic Settings → TCP/IP . Set the parameters and click Save to save the settings.
  • Page 111 DS-K1T343 Series Face Recognition Terminal User Manual Steps Note The function should be supported by the device. 1. Click Configuration → Network → Basic Settings → Wi-Fi . Figure 9-6 Wi-Fi Settings Page 2. Check Wi-Fi. 3. Select a Wi-Fi - Click of a Wi-Fi in the list and enter the Wi-Fi password.
  • Page 112 DS-K1T343 Series Face Recognition Terminal User Manual Select a center group from the drop-down list. Main Channel The device will communicate with the center via the main channel. Note N1 refers to wired network. Platform Access Platform access provides you an option to manage the devices via platform.

  • Page 113: Set Video And Audio Parameters

    DS-K1T343 Series Face Recognition Terminal User Manual Note If you select 5.0 as the version, you should set the ISUP key as well. 5. Set the ISUP listening parameters, including ISUP alarm center IP address/domain name, ISUP alarm center URL, and ISUP alarm center port.

  • Page 114: Customize Audio Content

    DS-K1T343 Series Face Recognition Terminal User Manual Figure 9-7 Video Settings Page Set the stream type, the video type, the bitrate type, the frame rate, the Max. bitrate, the video encoding, and I Frame Interval. Click Save to save the settings after the configuration.
  • Page 115 DS-K1T343 Series Face Recognition Terminal User Manual Steps 1. Click Configuration → Video/Audio → Prompt . Figure 9-8 Customize Audio Content 2. Select Prompt as TTS(Text to Speech) to turn the text to audio content. 3. Select time schedule. 4. Enable the function.

  • Page 116: Set Image Parameters

    DS-K1T343 Series Face Recognition Terminal User Manual Note If authentication is failed in the configured time duration, the device will broadcast the configured content. 3) Enter the audio content. 4) Optional: Repeat substep 1 to 3. 5) Optional: Click to delete the configured time duration.

  • Page 117: Set Supplement Light Brightness

    DS-K1T343 Series Face Recognition Terminal User Manual 25 frames per second. Suitable for mainland China, Hong Kong (China), the Middle East countries, Europe countries, etc. NTSC 30 frames per second. Suitable for the USA, Canada, Japan, Taiwan (China), Korea, the Philippines, etc.

  • Page 118: Time And Attendance Settings

    DS-K1T343 Series Face Recognition Terminal User Manual Figure 9-10 Supplement Light Settings Page 2. Select a supplement light type and mode from the drop-down list. If you select the mode as ON, you should set the brightness. 9.5.17 Time and Attendance Settings...
  • Page 119 DS-K1T343 Series Face Recognition Terminal User Manual Result You will not view or configure the attendance status on the initial page. And the system will follow the attendance rule that configured on the platform. Time Settings Steps 1. Click Configuration → Time Settings to enter the settings page.
  • Page 120 DS-K1T343 Series Face Recognition Terminal User Manual Set Auto Attendance via Web Set the attendance mode as auto, and you can set the attendance status and its available schedule. The system will automatically change the attendance status according to the configured schedule.

  • Page 121: General Settings

    DS-K1T343 Series Face Recognition Terminal User Manual Example If set the Break Out as Monday 11:00, and Break In as Monday 12:00, the valid user's authentication from Monday 11:00 to 12:00 will be marked as break. 9.5.18 General Settings Set Authentication Parameters Click Configuration →...
  • Page 122 DS-K1T343 Series Face Recognition Terminal User Manual Figure 9-11 Set Authentication Parameters Click Save to save the settings after the configuration. Device Type Select Main Card Reader or Sub Card Reader from the drop-down list. Main Card Reader You can configure the device card reader's parameters.
  • Page 123 DS-K1T343 Series Face Recognition Terminal User Manual Enable Card Reader Enable the card reader's function. Authentication Select an authentication mode according to your actual needs from the drop-down list. Recognition Interval You can set the interval between 2 continuous recognition of a same person during the authentication.
  • Page 124 DS-K1T343 Series Face Recognition Terminal User Manual Max. Authentication Failed Attempts Enable to report alarm when the card reading attempts reach the set value. Communication with Controller Every When the access control device cannot connect with the card reader for longer than the set time, the card reader will turn offline automatically.
  • Page 125 DS-K1T343 Series Face Recognition Terminal User Manual You can check Name De-identification, and the whole name will not be displayed. Picture Uploading and Storage Upload Captured Picture When Authenticating Upload the pictures captured when authenticating to the platform automatically. Save Captured Picture When Authenticating If you enable this function, you can save the picture when authenticating to the device.
  • Page 126 DS-K1T343 Series Face Recognition Terminal User Manual Enable M1 Card Enable M1 card and authenticating by presenting M1 card is available. M1 Card Encryption M1 card encryption can improve the security level of authentication. Sector Enable the function and set the encryption sector. By default, Sector 13 is encrypted. It is recommended to encrypt sector 13.

  • Page 127: Video Intercom Settings

    DS-K1T343 Series Face Recognition Terminal User Manual 9.5.19 Video Intercom Settings Set Video Intercom Parameters The device can be used as a door station, outer door station, or access control device. You should set the device No. before usage. Click Configuration → Video Intercom → Device No.
  • Page 128 DS-K1T343 Series Face Recognition Terminal User Manual Door Station No. Set the device installed floor No. Note If you change the No., you should reboot the device. Community No. Set the device installed community No. Building No. Set the device installed building No.

  • Page 129: Access Control Settings

    DS-K1T343 Series Face Recognition Terminal User Manual Press Button to Call Steps 1. Click Intercom → Press Button to Call to enter the settings page. 2. Set the parameters. - Edit call No. for every button. - Check Call Management Center to set the button calling center.
  • Page 130 DS-K1T343 Series Face Recognition Terminal User Manual Select the device corresponded door No. Name You can create a name for the door. Open Duration Set the door unlocking duration. If the door is not opened for the set time, the door will be locked.
  • Page 131 DS-K1T343 Series Face Recognition Terminal User Manual Click Save to save the settings after the configuration. Set the RS-485 No. Peripheral Type Select a peripheral from the drop-down list according the actual situation. You can select from Card Reader, Extension Module, Access Controller, or Disable.

  • Page 132: Set Biometric Parameters

    DS-K1T343 Series Face Recognition Terminal User Manual Figure 9-14 Wiegand Page 2. Check Wiegand to enable the Wiegand function. 3. Set a transmission direction. Input The device can connect a Wiegand card reader. Output The can connect an external access controller. And the two devices will transmit the card No.
  • Page 133 DS-K1T343 Series Face Recognition Terminal User Manual Figure 9-15 Set Face Parameters...
  • Page 134 DS-K1T343 Series Face Recognition Terminal User Manual Note The functions vary according to different models. Refers to the actual device for details. Click Save to save the settings after the configuration. Face Anti-spoofing Enable or disable the live face detection function. If enabling the function, the device can recognize whether the person is a live one or not.
  • Page 135 DS-K1T343 Series Face Recognition Terminal User Manual 1:1 Matching Threshold Set the matching threshold when authenticating via 1:1 matching mode. The larger the value, the smaller the false accept rate and the larger the false rejection rate. 1:N Matching Threshold Set the matching threshold when authenticating via 1:N matching mode.

  • Page 136: Set Notice Publication

    DS-K1T343 Series Face Recognition Terminal User Manual Set the matching threshold when authenticating via ECO mode 1:1 matching mode. The larger the value, the smaller the false accept rate and the larger the false rejection rate. ECO Mode (1:N) Set the matching threshold when authenticating via ECO mode 1:N matching mode. The larger the value, the smaller the false accept rate and the larger the false rejection rate Face with Mask &...
  • Page 137 DS-K1T343 Series Face Recognition Terminal User Manual Figure 9-16 Theme Page Display Mode You can select display theme for device authentication. You can select Display Mode as Simple or Normal. When you select Simple, the information of name, ID, face picture will be not displayed.
  • Page 138 DS-K1T343 Series Face Recognition Terminal User Manual After you have created a theme, you can select the theme and draw a schedule on the time line to set the theme play schedule. Select the drawn schedule and you can edit the exact start and end time.

  • Page 139: Chapter 10 Client Software Configuration

    DS-K1T343 Series Face Recognition Terminal User Manual Chapter 10 Client Software Configuration 10.1 Configuration Flow of Client Software Follow the flow diagram below to configure on the client software. Figure 10-1 Flow Diagram of Configuration on Client Software 10.2 Device Management...

  • Page 140: Add Device

    DS-K1T343 Series Face Recognition Terminal User Manual Example You can control entrance & exit and manage attendance after adding access control devices to the client; you can perform video intercom with the indoor stations and door stations. 10.2.1 Add Device The client provides three device adding modes including by IP/domain, IP segment, and EHome protocol.
  • Page 141 DS-K1T343 Series Face Recognition Terminal User Manual you change your password regularly, especially in the high security system, changing the password monthly or weekly can better protect your product. Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

  • Page 142: Reset Device Password

    DS-K1T343 Series Face Recognition Terminal User Manual Address Edit the address of the device. Port Enter the device port number. The default port number is 8000. User Name Enter the device user name. By default, the user name is admin.

  • Page 143: Manage Added Devices

    DS-K1T343 Series Face Recognition Terminal User Manual Note For the following operations for resetting the password, contact our technical support. Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 144: Group Management

    DS-K1T343 Series Face Recognition Terminal User Manual 10.3 Group Management The client provides groups to manage the added resources in different groups. You can group the resources into different groups according to the resources' locations. Example For example, on the 1st floor, there mounted 16 doors, 64 alarm inputs, and 16 alarm outputs. You can organize these resources into one group (named 1st Floor) for convenient management.

  • Page 145: Person Management

    DS-K1T343 Series Face Recognition Terminal User Manual Note You can click to switch the resource display mode to thumbnail view or to list view. 6. Click Import to import the selected resources to the group. 10.4 Person Management You can add person information to the system for further operations such as access control, video intercom, time and attendance, etc.
  • Page 146 DS-K1T343 Series Face Recognition Terminal User Manual Import Person Information You can enter the information of multiple persons in a predefined template (CSV/Excel file) to import the information to the client in a batch. Steps 1. Enter the Person module.
  • Page 147 DS-K1T343 Series Face Recognition Terminal User Manual Note The (folder of) face pictures should be in ZIP format. ● Each picture file should be in JPG format and should be no larger than 200 KB. ● Each picture file should be named as "Person ID_Name". The Person ID should be the same ●...

  • Page 148: Get Person Information From Access Control Device

    DS-K1T343 Series Face Recognition Terminal User Manual Note The exported file is in ZIP format. ● The exported face picture is named as "Person ID_Name_0" ("0" is for a full-frontal face). ● 10.4.3 Get Person Information from Access Control Device...

  • Page 149: Report Card Loss

    DS-K1T343 Series Face Recognition Terminal User Manual 3. Optional: Enter key words (name or person ID) in the input box to filter the person(s) that need issuing cards. 4. Optional: Click Settings to set the card issuing parameters. For details, refer to .

  • Page 150: Configure Schedule And Template

    DS-K1T343 Series Face Recognition Terminal User Manual Card Enrollment Station Select the model of the connected card enrollment station Note Currently, the supported card enrollment station models include DS-K1F100-D8, DS-K1F100-M, DS-K1F100-D8E, and DS-K1F180-D8E. Card Type This field is only available when the model is DS-K1F100-D8E or DS-K1F180-D8E.

  • Page 151: Add Template

    DS-K1T343 Series Face Recognition Terminal User Manual Steps Note You can add up to 64 holidays in the software system. 1. Click Access Control → Schedule → Holiday to enter the Holiday page. 2. Click Add on the left panel.
  • Page 152 DS-K1T343 Series Face Recognition Terminal User Manual 1. Click Access Control → Schedule → Template to enter the Template page. Note There are two default templates: All-Day Authorized and All-Day Denied, and they cannot be edited or deleted. All-Day Authorized The access authorization is valid in each day of the week and it has no holiday.

  • Page 153: Set Access Group To Assign Access Authorization To Persons

    DS-K1T343 Series Face Recognition Terminal User Manual 10.6 Set Access Group to Assign Access Authorization to Persons After adding the person and configuring the person's credentials, you can create the access groups to define which person(s) can get access to which door(s) and then apply the access group to the access control device to take effect.
  • Page 154 DS-K1T343 Series Face Recognition Terminal User Manual Figure 10-2 Display the Selected Person(s) and Access Point(s) 8. After adding the access groups, you need to apply them to the access control device to take effect. 1) Select the access group(s) to apply to the access control device.

  • Page 155: Configure Advanced Functions

    DS-K1T343 Series Face Recognition Terminal User Manual Note If you change the persons' access information or other related information, you will view the promptAccess Group to Be Applied on the right corner of the client. You can click the prompt to apply the changed data to the device. You can select either Apply Now or Apply Later.
  • Page 156 DS-K1T343 Series Face Recognition Terminal User Manual Configure Parameters for Access Control Device After adding the access control device, you can configure its parameters, including overlaying user information on picture, uploading pictures after capturing, saving captured pictures, etc. Steps 1. Click Access Control → Advanced Function → Device Parameter .
  • Page 157 DS-K1T343 Series Face Recognition Terminal User Manual If enable the function, the device can recognize the EM card. You can present EM card on the device. Note If the peripheral card reader supports presenting EM card, the function is also supported to enable/disable the EM card function.
  • Page 158 DS-K1T343 Series Face Recognition Terminal User Manual The door contact can be enabled with appropriate delay after person with extended accesss needs swipes her/his card. Door Left Open Timeout Alarm The alarm can be triggered if the door has not been closed in a configured time period. If it is set as 0, no alarm will be triggered.
  • Page 159 DS-K1T343 Series Face Recognition Terminal User Manual Note The displayed parameters may vary for different access control devices. There are part of ● parameters listed as follows. Refer to the user manual of the device for more details. Some of the following parameters are not listed in the Basic Information page, click More to ●...
  • Page 160 DS-K1T343 Series Face Recognition Terminal User Manual View the maximum number of available fingerprints. Existing Fingerprint Number View the number of existed fingerprints in the device. Score The device will score the captured picture according to the yaw angle, pitch angle, and pupillary distance.

  • Page 161: Configure Device Parameters

    DS-K1T343 Series Face Recognition Terminal User Manual 5. Optional: Click Copy to, and then select the card reader(s) to copy the parameters in the page to the selected card reader(s). Configure Parameters for Alarm Output After adding the access control device, if the device links to alarm outputs, you can configure the parameters.
  • Page 162 DS-K1T343 Series Face Recognition Terminal User Manual Note These parameters displayed vary according to different device models. Select a COM port for configuration. COM1 refers to the RS-485 interface and COM2 refers to the RS-232 interface. Face Picture Database select Deep Learning as the face picture database.
  • Page 163 DS-K1T343 Series Face Recognition Terminal User Manual 6. Click Save. The configured parameters will be applied to the device automatically. ● When you change the working mode or connection mode, the device will reboot ● automatically. Set Wiegand Parameters You can set the access control device's Wiegand channel and the communication mode. After setting the Wiegand parameters, the device can connect to Wiegand card reader via Wiegand communication.

  • Page 164: Door Control

    DS-K1T343 Series Face Recognition Terminal User Manual 4. Set the switch to on to enable the M1 card encryption function. 5. Set the sector ID. Note The sector ID ranges from 1 to 100. ● By default, Sector 13 is encrypted. It is recommended to encrypt sector 13.

  • Page 165: Check Real-Time Access Records

    DS-K1T343 Series Face Recognition Terminal User Manual Note For Remain All Unlocked and Remain All Locked, ignore this step. 4. Click the following buttons to control the door. Unlock When the door is locked, unlock it and it will be open for once. After the open duration, the door will be closed and locked again automatically.
  • Page 166 DS-K1T343 Series Face Recognition Terminal User Manual Steps 1. Click Monitoring and select a group from the drop-down list on the upper-right corner. The access records triggered at the doors in the selected group will display in real time. You can view the details of the records, including card No., person name, organization, event time, etc.

  • Page 167: Appendix A. Tips For Scanning Fingerprint

    DS-K1T343 Series Face Recognition Terminal User Manual Appendix A. Tips for Scanning Fingerprint Recommended Finger Forefinger, middle finger or the third finger. Correct Scanning The figure displayed below is the correct way to scan your finger: You should press your finger on the scanner horizontally. The center of your scanned finger should align with the scanner center.
  • Page 168 DS-K1T343 Series Face Recognition Terminal User Manual Environment The scanner should avoid direct sun light, high temperature, humid conditions and rain. When it is dry, the scanner may not recognize your fingerprint successfully. You can blow your finger and scan again.

  • Page 169: Appendix B. Tips When Collecting/Comparing Face Picture

    DS-K1T343 Series Face Recognition Terminal User Manual Appendix B. Tips When Collecting/Comparing Face Picture The position when collecting or comparing face picture is as below: Positions (Recommended Distance: 0.5 m) Expression Keep your expression naturally when collecting or comparing face pictures, just like the ●...
  • Page 170 DS-K1T343 Series Face Recognition Terminal User Manual Size Make sure your face is in the middle of the collecting window.

  • Page 171: Appendix C. Tips For Installation Environment

    DS-K1T343 Series Face Recognition Terminal User Manual Appendix C. Tips for Installation Environment 1. Light Source Illumination Reference Value Candle: 10Lux Bulb: 100~850Lux Sunlight: More than 1200Lux 2. Avoid backlight, direct and indirect sunlight...

  • Page 172: Appendix D. Dimension

    DS-K1T343 Series Face Recognition Terminal User Manual Appendix D. Dimension The dimension of the device with fingerprint is as follows: Figure D-1 Dimension (With Fingerprint) The dimension of the device without fingerprint is as follows: Figure D-2 Dimension (Without Fingerprint)

  • Page 173: Appendix E. Communication Matrix And Device Command

    Device Command Scan the following QR code to get the device common serial port commands. Note that the command list contains all commonly used serial ports commands for all Hikvision access control and video intercom devices. Figure E-2 Device Command...
  • Page 174 UD24342B-A...

This manual is also suitable for:

Ds-k1t343mxDs-k1t343mwxDs-k1t343mfxDs-k1t343mfwxDs-k1t343exDs-k1t343ewx ... Show all

Table of Contents

Save PDF
