HIKVISION DS-K1T320 Series User Manual

Face recognition terminal
Hide thumbs Also See for DS-K1T320 Series:
Table of Contents

Advertisement

Quick Links

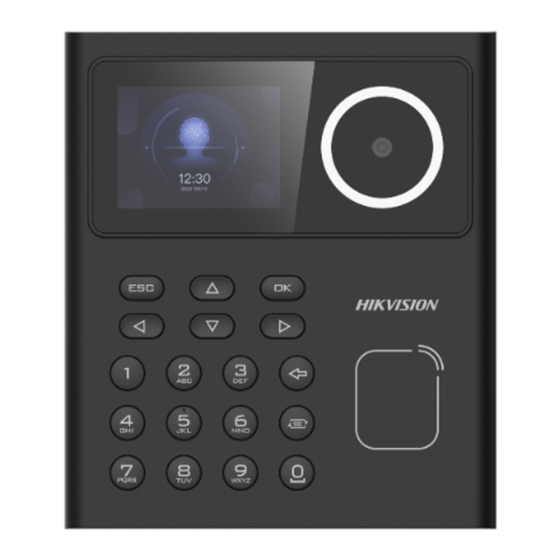

DS-K1T320 Series Face Recogintion Terminal
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-K1T320 Series and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-K1T320 Series

Summary of Contents for HIKVISION DS-K1T320 Series

  • Page 1 DS-K1T320 Series Face Recogintion Terminal User Manual...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 During the use of device, personal data will be collected, stored and processed. To protect data, the development of Hikvision devices incorporates privacy by design principles. For example, for device with facial recognition features, biometrics data is stored in your device with encryption method;...
  • Page 4 DS-K1T320 Series Face Recogintion Terminal User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury.
  • Page 5 DS-K1T320 Series Face Recogintion Terminal User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 6 DS-K1T320 Series Face Recogintion Terminal User Manual under the EMC Directive 2014/30/EU, RE Directive 2014/53/EU,the RoHS Directive 2011/65/EU 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
  • Page 7 DS-K1T320 Series Face Recogintion Terminal User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Dangers and Cautions: Dangers: Neglecting any of the warnings may cause serious injury or death.
  • Page 8 DS-K1T320 Series Face Recogintion Terminal User Manual Cautions: Do not drop the device or subject it to physical shock, and do not expose it to high ● electromagnetism radiation. Avoid the equipment installation on vibrations surface or places subject to shock (ignorance can cause equipment damage).
  • Page 9 DS-K1T320 Series Face Recogintion Terminal User Manual Available Models Product Name Model Wireless Face Recognition Terminal DS-K1T320MFWX 13.56 MHz Card Presenting Frequency, Wi-Fi 2.4G DS-K1T320MFX 13.56 MHz Card Presenting Frequency DS-K1T320MWX 13.56 MHz Card Presenting Frequency, Wi-Fi 2.4G DS-K1T320MX 13.56 MHz Card Presenting...

  • Page 10: Table Of Contents

    DS-K1T320 Series Face Recogintion Terminal User Manual Contents Chapter 1 Overview ........................1 1.1 Overview ..........................1 1.2 Features ..........................1 Chapter 2 Appearance ........................ 2 Chapter 3 Installation ......................... 4 3.1 Installation Environment ......................4 3.2 Install with Gang Box ......................4 3.3 Surface Mounting ........................
  • Page 11 DS-K1T320 Series Face Recogintion Terminal User Manual 7.1.1 Login by Administrator ....................24 7.1.2 Login by Activation Password ..................25 7.1.3 Forgot Password ......................25 7.2 Communication Settings ...................... 25 7.2.1 Set Wired Network Parameters .................. 25 7.2.2 Set Wi-Fi Parameters ....................26 7.2.3 Set ISUP Parameters ....................
  • Page 12 DS-K1T320 Series Face Recogintion Terminal User Manual 7.9.2 Set Manual Attendance via Device ................43 7.9.3 Set Auto Attendance via Device .................. 44 7.9.4 Set Manual and Auto Attendance via Device .............. 46 7.10 System Maintenance ......................47 Chapter 8 Configure the Device via the Mobile Browser ............49 8.1 Login ............................
  • Page 13 DS-K1T320 Series Face Recogintion Terminal User Manual 14.2 Forget Password ......................... 78 14.3 Live View ..........................78 14.4 Person Management ......................80 14.5 Search Event ........................81 14.6 Configuration ........................82 14.6.1 Set Local Parameters ....................82 14.6.2 View Device Information ................... 82 14.6.3 Set Time ........................
  • Page 14 DS-K1T320 Series Face Recogintion Terminal User Manual 15.2.1 Add Device ......................105 15.2.2 Reset Device Password ................... 107 15.2.3 Manage Added Devices ..................108 15.3 Group Management ......................109 15.3.1 Add Group ....................... 109 15.3.2 Import Resources to Group ..................109 15.4 Person Management ......................
  • Page 15 DS-K1T320 Series Face Recogintion Terminal User Manual Chapter 17 Time Settings ......................133 Chapter 18 Environment Settings .................... 134 Chapter 19 Privacy Settings ..................... 135 Chapter 20 Administrator Settings ..................136...

  • Page 16: Chapter 1 Overview

    DS-K1T320 Series Face Recogintion Terminal User Manual Chapter 1 Overview 1.1 Overview Face recognition terminal is a kind of access control device for face recognition, which is mainly applied in security access control systems, such as logistic centers, airports, university campuses, alarm centrals, dwellings, etc.

  • Page 17: Chapter 2 Appearance

    DS-K1T320 Series Face Recogintion Terminal User Manual Chapter 2 Appearance The appearance of the device with fingerprint is as follows: Figure 2-1 Appearance（With Fingerprint) The appearance of the device without fingerprint is as follows: Figure 2-2 Appearance（Without Fingerprint) Table 2-1 Appearance Description...
  • Page 18 DS-K1T320 Series Face Recogintion Terminal User Manual Name Note Only devices that support the fingerprint function contain a fingerprint module. Card Swiping Area Camera Supplement Light USB Interface Network Interface Tamper Wiring Terminal (Including Power Supply Interface) Debugging Port (For Debugging Only)

  • Page 19: Chapter 3 Installation

    DS-K1T320 Series Face Recogintion Terminal User Manual Chapter 3 Installation 3.1 Installation Environment Indoor use only. ● Avoid backlight, direct sunlight, and indirect sunlight. ● For better recognition, there should be light source in or near the installation environment. ●...

  • Page 20: Surface Mounting

    DS-K1T320 Series Face Recogintion Terminal User Manual Figure 3-3 Apply Silicone Sealant 4. Align the device with the mounting plate, and secure the device on the mounting plate with 1 supplied screw (SC-CM4X14-5T10-SUSS). Figure 3-4 Secure Device 3.3 Surface Mounting...
  • Page 21 DS-K1T320 Series Face Recogintion Terminal User Manual Figure 3-5 Mounting Template 2. Drill holes on the wall or other surface according to the Hole 1 on the mounting template. 3. Remove the cable hole on the mounting plate with tools.

  • Page 22: Base Mounting

    DS-K1T320 Series Face Recogintion Terminal User Manual Figure 3-7 Apply Silicone Sealant 6. Align the device with the mounting plate and hang the device on the mounting plate. Use 1 supplied screw (SC-CM4X14_5T10-SUSS) to secure the device and the mounting plate.
  • Page 23 DS-K1T320 Series Face Recogintion Terminal User Manual Figure 3-10 Fasten Bracket 3. Buckle into the bracket to the end to complete the installation. Figure 3-11 Complete Installation...

  • Page 24: Chapter 4 Wiring

    DS-K1T320 Series Face Recogintion Terminal User Manual Chapter 4 Wiring You can connect the NC/NO and COM terminal with the door lock, connect the SEN and GND terminal with the door contact and the BTN/GND terminal with the exit button.

  • Page 25: Wire Normal Device

    DS-K1T320 Series Face Recogintion Terminal User Manual 4.2 Wire Normal Device You can connect the terminal with normal peripherals. Figure 4-1 Device Wiring Note Do not wire the device to the electric supply directly. ● When connecting door contact and exit button, the device should use the same common ground ●...

  • Page 26: Chapter 5 Activation

    DS-K1T320 Series Face Recogintion Terminal User Manual Chapter 5 Activation You should activate the device before the first login. After powering on the device, the system will switch to Device Activation page. Activation via the device, SADP tool and the client software are supported.

  • Page 27: Activate Via Web Browser

    DS-K1T320 Series Face Recogintion Terminal User Manual Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 28: Activate Via Sadp

    Get the SADP software from the supplied disk or the official website http:// ● www.hikvision.com/en/ , and install the SADP according to the prompts. The device and the PC that runs the SADP tool should be within the same subnet.

  • Page 29: Activate Device Via Ivms-4200 Client Software

    DS-K1T320 Series Face Recogintion Terminal User Manual Status of the device becomes Active after successful activation. 5. Modify IP address of the device. 1) Select the device. 2) Change the device IP address to the same subnet as your computer by either modifying the IP address manually or checking Enable DHCP.
  • Page 30 DS-K1T320 Series Face Recogintion Terminal User Manual Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 31: Chapter 6 Quick Operation

    DS-K1T320 Series Face Recogintion Terminal User Manual Chapter 6 Quick Operation 6.1 Select Language You can select a language for the device system. After the device activation, you can select a language for the device system. Figure 6-1 Select System Language...

  • Page 32: Set Application Mode

    DS-K1T320 Series Face Recogintion Terminal User Manual Note After you change the system language, the device will reboot automatically. 6.2 Set Application Mode After activating the device, you should select an application mode for better device application. Steps 1. On the Welcome page, select Indoor or Others from the drop-down list.

  • Page 33: Set Network Parameters

    DS-K1T320 Series Face Recogintion Terminal User Manual Note You can also change the settings in System Settings. ● If you install the device indoors near the window or the face recognition function is not ● working well, select Others. If you do not configure the application mode and tap Next, the system will select Indoor by ●...

  • Page 34: Access To Platform

    DS-K1T320 Series Face Recogintion Terminal User Manual Wired Network Note Make sure the device has connected to a network. If enable DHCP, the system will assign the IP address and other parameters automatically. If disable DHCP, you should set the IP address, the subnet mask, and the gateway.

  • Page 35: Privacy Settings

    DS-K1T320 Series Face Recogintion Terminal User Manual Figure 6-4 Access to Hik-Connect 2. Tap Next. Note If you tap Previous to return to the Wi-Fi configuration page, you need to tap the connected Wi- Fi or connect another Wi-Fi to enter the platform page again.

  • Page 36: Set Administrator

    DS-K1T320 Series Face Recogintion Terminal User Manual Select parameters according to your actual needs. Figure 6-5 Privacy Upload Captured Pic. When Auth. (Upload Captured Picture When Authenticating) Upload the pictures captured when authenticating to the platform automatically. Save Captured Pic. When Auth. (Save Captured Picture When Authenticating) If you enable this function, you can save the picture when Authenticating to the device.
  • Page 37 DS-K1T320 Series Face Recogintion Terminal User Manual Before You Start Activate the device and select an application mode. Steps 1. Optional: Tap Skip to skip adding administrator if required. 2. Enter the administrator's name (optional) and tap Next. Figure 6-6 Add Administrator Page 3.
  • Page 38 DS-K1T320 Series Face Recogintion Terminal User Manual Hik-Connect is enabled/disabled. The device wired network is connected/not connected/connecting failed. The device' Wi-Fi is enabled and connected/not connected/enabled but not connected. Shortcut Keys Description Note You can configure those shortcut keys displayed on the screen. For details, see Basic Settings .

  • Page 39: Chapter 7 Basic Operation

    DS-K1T320 Series Face Recogintion Terminal User Manual Chapter 7 Basic Operation 7.1 Login Login the device to set the device basic parameters. 7.1.1 Login by Administrator If you have added an administrator for the device, only the administrator can login the device for device operation.

  • Page 40: Login By Activation Password

    DS-K1T320 Series Face Recogintion Terminal User Manual 7.1.2 Login by Activation Password You should login the system before other device operations. If you do not configure an administrator, you should follow the instructions below to login. Steps 1. Long press OK to enter Authenticate via Admin page.

  • Page 41: Set Wi-Fi Parameters

    DS-K1T320 Series Face Recogintion Terminal User Manual 2. On the Communication page, select Wired Network. Figure 7-2 Wired Network Settings 3. Set IP Address, Subnet Mask, and Gateway. - Enable DHCP, and the system will assign IP address, subnet mask, and gateway automatically.

  • Page 42: Set Isup Parameters

    DS-K1T320 Series Face Recogintion Terminal User Manual Figure 7-3 Wi-Fi Settings 3. Enable the Wi-Fi function. 4. Select a Wi-Fi from the list, and enter the Wi-Fi's password. Tap OK. Note Only digits, letters, and special characters are allowed in the password.
  • Page 43 DS-K1T320 Series Face Recogintion Terminal User Manual Figure 7-4 ISUP Settings 2. Enable the ISUP function and set the ISUP server parameters. ISUP Version Set the ISUP version according to your actual needs. Central Group Enable central group and the data will be uploaded to the center group.

  • Page 44: Platform Access

    DS-K1T320 Series Face Recogintion Terminal User Manual If you choose V5.0, you should create an account and ISUP key. If you choose other version, you should create an ISUP account only. Note Remember the ISUP account and ISUP key. You should enter the account name or the key ●...
  • Page 45 DS-K1T320 Series Face Recogintion Terminal User Manual 3. Edit the employee ID. Note The employee ID should be less than 32 characters. And it can be a combination of lower ● letters, upper letters, and numbers. The employee ID should not be duplicated.

  • Page 46: Add Face Picture

    DS-K1T320 Series Face Recogintion Terminal User Manual Administrator The user is the administrator. Except for the normal attendance function, the user can also enter the Home page to operate after authenticating the permission. Normal User The User is the normal user. The user can only authenticate or take attendance on the initial page.

  • Page 47: Add Fingerprint

    DS-K1T320 Series Face Recogintion Terminal User Manual Figure 7-5 Add Face Picture 6. Look at the camera. Note Make sure your face picture is in the face picture outline when adding the face picture. ● Make sure the captured face picture is in good quality and is accurate.

  • Page 48: Add Card

    DS-K1T320 Series Face Recogintion Terminal User Manual Steps Note The function should be supported by the device. ● Up to 5000 fingerprints can be added. ● 1. Long press OK and login the device. 2. Press User → Add User to enter the Add User page.

  • Page 49: View Pin Code

    DS-K1T320 Series Face Recogintion Terminal User Manual Steps Note The device supports MIFARE card, FILECA card, and DESfire card. 1. Long press OK and login the device. 2. Select User → Add User to enter the Add User page. 3. Select the Employee ID field and edit the employee ID.

  • Page 50: Set Authentication Mode

    DS-K1T320 Series Face Recogintion Terminal User Manual Steps 1. Long press OK and login the device. 2. Select User → Add User to enter the Add User page. 3. Edit the employee ID. Note The employee ID should be less than 32 characters. And it can be a combination of lower ●...

  • Page 51: Edit User

    DS-K1T320 Series Face Recogintion Terminal User Manual Custom You can combine different authentication modes together according to your actual needs. 4. Press ESC to save the settings. 7.3.7 Edit User After adding the user, you can edit it. Edit User On the User Management page, select a user from the User List to enter the User Information page.

  • Page 52: Export Data

    DS-K1T320 Series Face Recogintion Terminal User Manual Note If you want to transfer all user information from one device (Device A) to another (Device B), ● you should export the information from Device A to the USB flash drive and then import from the USB flash drive to Device B.

  • Page 53: Authenticate Via Single Credential

    DS-K1T320 Series Face Recogintion Terminal User Manual 7.5.1 Authenticate via Single Credential Set the user authentication type before authentication. For details, see Set Authentication Mode . Authenticate face, fingerprint, card or PIN. Face Face forward at the camera and start authentication via face.

  • Page 54: Basic Settings

    DS-K1T320 Series Face Recogintion Terminal User Manual 7.6 Basic Settings You can set the voice, time, sleeping (s), language, supplement light, community No., building No., and unit No. Long press OK and login the device. Select Basic to enter System Settings page. Then select Basic to enter Basic Settings page.

  • Page 55: Set Biometric Parameters

    DS-K1T320 Series Face Recogintion Terminal User Manual Set the device installed community No. Building No. Set the device installed building No. Unit No. Set the device installed unit No. 7.7 Set Biometric Parameters You can customize the face parameters to improve the face recognition performance. The...

  • Page 56: Set Access Control Parameters

    DS-K1T320 Series Face Recogintion Terminal User Manual Parameter Description Reminder of Wearing If the person do not wear a face mask when authenticating, the device prompts a notification and the door will open. Must Wear If the person do not wear a face mask when authenticating, the device prompts a notification and the door keeps closed.

  • Page 57: Time And Attendance Status Settings

    DS-K1T320 Series Face Recogintion Terminal User Manual Table 7-2 Access Control Parameters Descriptions Parameter Description Terminal Auth. Mode Select the face recognition terminal's authentication mode. You can also customize the authentication mode. Note Only the device with the fingerprint module supports the ●...

  • Page 58: Set Manual Attendance Via Device

    DS-K1T320 Series Face Recogintion Terminal User Manual Figure 7-8 Disable Attendance Mode Set the Attendance Mode as Disable. You will not view or configure the attendance status on the initial page. And the system will follow the attendance rule that configured on the platform.

  • Page 59: Set Auto Attendance Via Device

    DS-K1T320 Series Face Recogintion Terminal User Manual Figure 7-9 Manual Attendance Mode 3. Enable the Attendance Status Required. 4. Enable a group of attendance status. Note The Attendance Property will not be changed. 5. Optional: Select an status and change its name if required.
  • Page 60 DS-K1T320 Series Face Recogintion Terminal User Manual Figure 7-10 Auto Attendance Mode 3. Enable the Attendance Status Required function. 4. Enable a group of attendance status. Note The Attendance Property will not be changed. 5. Optional: Select an status and change its name if required.

  • Page 61: Set Manual And Auto Attendance Via Device

    DS-K1T320 Series Face Recogintion Terminal User Manual 7.9.4 Set Manual and Auto Attendance via Device Set the attendance mode as Manual and Auto, and the system will automatically change the attendance status according to the configured schedule. At the same time you can manually change the attendance status after the authentication.

  • Page 62: System Maintenance

    DS-K1T320 Series Face Recogintion Terminal User Manual Note The attendance status will be valid within the configured schedule. Result On the initial page and authenticate. The authentication will be marked as the configured attendance status according to the schedule. If you tap the edit icon on the result tab, you can select a status to take attendance manually, the authentication will be marked as the edited attendance status.
  • Page 63 DS-K1T320 Series Face Recogintion Terminal User Manual Note The page may vary according to different device models. Refers to the actual page for details. Capacity You can view the number of user, face picture, card, and event. Note Parts of the device models support displaying the fingerprint number. Refers to the actual page for details.

  • Page 64: Chapter 8 Configure The Device Via The Mobile Browser

    DS-K1T320 Series Face Recogintion Terminal User Manual Chapter 8 Configure the Device via the Mobile Browser 8.1 Login You can login via mobile browser. Note Parts of the model supports Wi-Fi settings. ● Make sure the device is activated. ●...
  • Page 65 DS-K1T320 Series Face Recogintion Terminal User Manual Figure 8-1 Add User...

  • Page 66: Configuration

    DS-K1T320 Series Face Recogintion Terminal User Manual 2) Set the following parameters. Employee ID Enter the employee ID. The employee ID cannot be 0 or exceed 32 characters. It can be a combination of uppercase, lowercase letters and numbers. Name Enter the name.
  • Page 67 DS-K1T320 Series Face Recogintion Terminal User Manual Tap Configuration → System → System Settings → Basic Information , to enter the settings page. Figure 8-2 Device Information...

  • Page 68: Time Settings

    DS-K1T320 Series Face Recogintion Terminal User Manual You can view the device name, device No., language, model, serial No., version, device capacity, etc. 8.4.2 Time Settings Set the time zone, time sync. mode, and displayed time. Tap Configuration → System → System Settings → Time Settings to enter the settings page.
  • Page 69 DS-K1T320 Series Face Recogintion Terminal User Manual Figure 8-4 DST 2. Tap Enable DST. 3. Set the start time, end time, and DST bias. 4. Tap Save.

  • Page 70: View Open Source Software License

    DS-K1T320 Series Face Recogintion Terminal User Manual 8.4.4 View Open Source Software License Tap Configuration → System → System Settings → About , and tap View Licenses to view the device license. 8.4.5 User Management Steps 1. Tap Configuration → System → User Management → admin → Modify Password to enter the setting page.

  • Page 71: Security Settings

    DS-K1T320 Series Face Recogintion Terminal User Manual The device will restore to the default settings, except for the device IP address and the user information. Restore All All parameters will be restored to the factory settings. You should activate the device before usage.
  • Page 72 DS-K1T320 Series Face Recogintion Terminal User Manual Figure 8-5 Wi-Fi 3. Add Wi-Fi.
  • Page 73 DS-K1T320 Series Face Recogintion Terminal User Manual 1) Tap +. Figure 8-6 Add Wi-Fi 2) Enter Wi-Fi Name and Wi-Fi Password, and select Working Mode and Encryption Type. 3) Tap Save. 4. Select the Wi-Fi name, and tap Connect. 5. Enter the password and tap Save.
  • Page 74 DS-K1T320 Series Face Recogintion Terminal User Manual 1) Set the IP address, subnet mask, and gateway. Or enable DHCP and the system will allocate the IP address, subnet mask, and gateway automatically. 2) Set the DNS parameters. You can enable Auto Obtain DNS, set the preferred DNS server and the alternate DNS server.
  • Page 75 DS-K1T320 Series Face Recogintion Terminal User Manual HTTPS Set the HTTPS for accessing the browser. Certificate is required when accessing. Server It refers to the port through which the client adds the device. Platform Access Platform access provides you an option to manage the devices via platform.

  • Page 76: General Settings

    DS-K1T320 Series Face Recogintion Terminal User Manual Main Channel/Backup Channel The device will communicate with the center via the main channel. When exception occurs in the main channel, the device and the center will communicate with each other via the backup channel.
  • Page 77 DS-K1T320 Series Face Recogintion Terminal User Manual Figure 8-7 Authentication Settings 2. Tap Save. Device Type Main Card Reader...
  • Page 78 DS-K1T320 Series Face Recogintion Terminal User Manual You can configure the device card reader's parameters. If you select main card reader, you need to configure the following parameters: Card Reader Type, Card Reader Description, Enable Card Reader, Authentication, Recognition Interval (s), Minimum Card Swiping Interval (s), Max.
  • Page 79 DS-K1T320 Series Face Recogintion Terminal User Manual...
  • Page 80 DS-K1T320 Series Face Recogintion Terminal User Manual Event Storage Settings Select a method to delete the event. You can select from Delete Old Events Periodically, Delete Old Events by Specified Time, or Overwriting. Delete Old Events Periodically Enter number to set the period for event deleting. All events will be deleted according to the configured time duration.
  • Page 81 DS-K1T320 Series Face Recogintion Terminal User Manual Clear Registered Face Pictures Select Face Picture, and tap Clear. All registered pictures in the device will be deleted. Clear Authentication/Captured Picture Select Authentication/Captured Picture, and tap Clear. All authentication/captured pictures in the device will be deleted.

  • Page 82: Face Parameters Settings

    DS-K1T320 Series Face Recogintion Terminal User Manual Sector Enable the function and set the encryption sector. By default, Sector 13 is encrypted. It is recommended to encrypt sector 13. Enable CPU Card The device can read the data from CPU card when enabling the CPU card function.
  • Page 83 DS-K1T320 Series Face Recogintion Terminal User Manual Figure 8-11 Face Parameters...
  • Page 84 DS-K1T320 Series Face Recogintion Terminal User Manual Note The functions vary according to different models. Refers to the actual device for details. Set Face Parameters. Face Anti-spoofing Enable or disable the live face detection function. If enabling the function, the device can recognize whether the person is a live one or not.

  • Page 85: Access Control Settings

    DS-K1T320 Series Face Recogintion Terminal User Manual Configure the timeout period for face recognition. If the face recognition time exceeds the configured value, the device will prompt the face recognition timeout. Face with Mask Detection After enabling the face with mask detection, the system will recognize the captured face with mask picture.
  • Page 86 DS-K1T320 Series Face Recogintion Terminal User Manual Figure 8-12 Door Parameters Settings Page Tap Save to save the settings after the configuration. Door No. Select the device corresponded door No. Name You can create a name for the door. Open Duration...

  • Page 87: Door Operation

    DS-K1T320 Series Face Recogintion Terminal User Manual Set the door unlocking duration. If the door is not opened for the set time, the door will be locked. Door Open Timeout Alarm An alarm will be triggered if the door has not been closed within the configured time duration.

  • Page 88: Chapter 9 Select Language

    DS-K1T320 Series Face Recogintion Terminal User Manual Chapter 9 Select Language You can select a language for the device system. After the device activation, you can select a language for the device system from the drop-down list. By default, the system language is English.

  • Page 89: Chapter 10 Time Settings

    DS-K1T320 Series Face Recogintion Terminal User Manual Chapter 10 Time Settings Set Time and DST Click Wizzard → Time Settings . Time Zone Select the device located time zone from the drop-down list. Time Sync. You should set the NTP server's IP address, port No., and interval.

  • Page 90: Chapter 11 Environment Settings

    DS-K1T320 Series Face Recogintion Terminal User Manual Chapter 11 Environment Settings After activating the device, you should select an application mode for better device application. Steps 1. Click Wizard → Environment Settings. 2. Select Indoor or Other. Note If you install the device indoors near the window or the face recognition function is not ●...

  • Page 91: Chapter 12 Privacy Settings

    DS-K1T320 Series Face Recogintion Terminal User Manual Chapter 12 Privacy Settings Set the picture uploading and storage parameters. Go to Wizard → Privacy Settings . Picture Uploading and Storage Save Picture When Authenticating Save picture when authenticating automatically. Upload Picture When Authenticating Upload the pictures when authenticating to the platform automatically.

  • Page 92: Chapter 13 Administrator Settings

    DS-K1T320 Series Face Recogintion Terminal User Manual Chapter 13 Administrator Settings Steps 1. Click Wizard → Administrator Settings . 2. Enter the employee ID and name of the administrator. 3. Select a credential to add. Note You should select at least one credential.

  • Page 93: Chapter 14 Operation Via Web Browser

    Answer the security questions. E-mail Verification 1. Export the QR code and send it to pw_recovery@hikvision.com as attachment. 2. You will receive a verification code within 5 minutes in your reserved email. 3. Enter the verification code into the verification code field to verify your identification.
  • Page 94 DS-K1T320 Series Face Recogintion Terminal User Manual Figure 14-1 Live View Page Function Descriptions: Door Status Click to view the device live view. Set the volume when starting live view. Note If you adjust the volume when starting two-way audio, you may hear a repeated sounds.

  • Page 95: Person Management

    DS-K1T320 Series Face Recogintion Terminal User Manual You can view the event Employee ID, Name, Card No., Event Type, Time, and Operation. You can also click View More to enter the search conditions, including the event type, employee ID, the name, the card No., the start time, and the end time, and click Search.

  • Page 96: Search Event

    DS-K1T320 Series Face Recogintion Terminal User Manual Click Save to save the settings. Authentication Settings Click Person Management → Add to enter the Add Person page. Set the authentication type. Click Save to save the settings. Add Card Click Person Management → Add to enter the Add Person page.

  • Page 97: Configuration

    DS-K1T320 Series Face Recogintion Terminal User Manual Figure 14-2 Search Event Enter the search conditions, including the event type, the employee ID, the name, the card No., the start time, and the end time, and click Search. The results will be displayed on the right panel.

  • Page 98: Set Time

    DS-K1T320 Series Face Recogintion Terminal User Manual 14.6.3 Set Time Set the device's time zone, synchronization mode, server address, NTP port, and interval. Click Configuration → System → System Settings → Time Settings . Figure 14-3 Time Settings Click Save to save the settings after the configuration.

  • Page 99: Change Administrator's Password

    DS-K1T320 Series Face Recogintion Terminal User Manual Figure 14-4 DST Page 2. Enable DST. 3. Set the DST start time, end time and bias time. 4. Click Save to save the settings. 14.6.5 Change Administrator's Password Steps 1. Click Configuration → User Management .

  • Page 100: Network Settings

    DS-K1T320 Series Face Recogintion Terminal User Manual 14.6.7 Network Settings Set TCP/IP, port, Wi-Fi parameters, ISUP, and platform access. Note Some device models do not support Wi-Fi or mobile data settings. Refer to the actual products when configuration. Set Basic Network Parameters Click Configuration →...
  • Page 101 DS-K1T320 Series Face Recogintion Terminal User Manual Set Wi-Fi Parameters Set the Wi-Fi parameters for device wireless connection. Steps Note The function should be supported by the device. 1. Click Configuration → Network → Network Settings → Wi-Fi . Figure 14-6 Wi-Fi Settings Page 2.
  • Page 102 DS-K1T320 Series Face Recogintion Terminal User Manual HTTP It refers to the port through which the browser accesses the device. For example, when the HTTP Port is modified to 81, you need to enter http://192.0.0.65:81 in the browser for login.

  • Page 103: Set Video And Audio Parameters

    DS-K1T320 Series Face Recogintion Terminal User Manual Set ISUP Parameters Set the ISUP parameters for accessing device via ISUP protocol. Steps Note The function should be supported by the device. 1. Click Configuration → Network → Device Access → ISUP .

  • Page 104: Set Image Parameters

    DS-K1T320 Series Face Recogintion Terminal User Manual Set the stream type, the video type, the bitrate type, the frame rate, the Max. bitrate, the video encoding, and I Frame Interval. Click Save to save the settings after the configuration. Note The functions vary according to different models.
  • Page 105 DS-K1T320 Series Face Recogintion Terminal User Manual Note The functions vary according to different models. Refers to the actual device for details. Figure 14-8 Set Authentication Parameters Click Save to save the settings after the configuration. Terminal/Terminal Type/Terminal Model Get terminal description. They are read-only.
  • Page 106 DS-K1T320 Series Face Recogintion Terminal User Manual Tampering Detection Enable the anti-tamper detection for the card reader. Card No. Reversing The read card No. will be in reverse sequence after enabling the function. Set Door Parameters Click Configuration → Access Control → Door Parameters .

  • Page 107: Card Settings

    DS-K1T320 Series Face Recogintion Terminal User Manual Exit Button Type You can set the exit button as Remain Open or Remain Closed according to your actual needs. By default, it is Remain Open. Door Lock Powering Off Status You can set the door lock status when the door lock is powering off. By default, it is Remain Closed.

  • Page 108: Set Privacy Parameters

    DS-K1T320 Series Face Recogintion Terminal User Manual In order to prevent the mobile phone from getting the data of the access control, you can enable NFC card to increase the security level of the data. Enable M1 Card Enable M1 card and authenticating by presenting M1 card is available.

  • Page 109: Time And Attendance Settings

    DS-K1T320 Series Face Recogintion Terminal User Manual Set a time and all events will be deleted on the configured time. Overwriting The earliest 5% events will be deleted when the system detects the stored events has been over 95% of the full space.
  • Page 110 DS-K1T320 Series Face Recogintion Terminal User Manual schedule repeats, the shift type, break settings, and the card swiping rule.) to the shift group to define the attendance parameters for the persons in the shift group. Disable Attendance Mode via Web Disable the attendance mode and the system will not display the attendance status on the initial page.
  • Page 111 DS-K1T320 Series Face Recogintion Terminal User Manual Note The Attendance Property will not be changed. 5. Optional: Select an status and change its name if required. Result You should select an attendance status manually after authentication. Note If you do not select a status, the authentication will be failed and it will not be marked as a valid attendance.

  • Page 112: Set Biometric Parameters

    DS-K1T320 Series Face Recogintion Terminal User Manual 4. Enable a group of attendance status. Note The Attendance Property will not be changed. 5. Optional: Select an status and change its name if required. 6. Set the status' schedule. Refers to Time Settings for details.
  • Page 113 DS-K1T320 Series Face Recogintion Terminal User Manual Figure 14-10 Smart Settings Page Click Save to save the settings after the configuration. Face Anti-spoofing Enable or disable the live face detection function. If enabling the function, the device can recognize whether the person is a live one or not.
  • Page 114 DS-K1T320 Series Face Recogintion Terminal User Manual Select either others or indoor according to actual environment. Face Recognition Mode Normal Mode Recognize face via the camera normally. Pitch Angle The maximum pitch angle when starting face authentication. Yaw Angle The maximum yaw angle when starting face authentication.

  • Page 115: Set Preference

    DS-K1T320 Series Face Recogintion Terminal User Manual Set Recognition Area Click Configuration → Smart → Area Configuration . Drag the yellow frame in the live video to adjust the recognition area. Only the face within the area can be recognized by the system.

  • Page 116: Device Debugging

    DS-K1T320 Series Face Recogintion Terminal User Manual Restore Parameters Click Maintenance and Security → Maintenance → Backup and Reset . Restore All All parameters will be restored to the factory settings. You should activate the device before usage. Restore The device will restore to the default settings, except for the device IP address and the user information.

  • Page 117: Security Mode Settings

    DS-K1T320 Series Face Recogintion Terminal User Manual Set the major and minor type of the log type. Set the start time and end time for searching, and click Search. The results will be displayed below, which including the No., time, the major type the minor type, the channel No., the local/remote user information, the remote host IP, etc.
  • Page 118 DS-K1T320 Series Face Recogintion Terminal User Manual 2) Select a certificate type in the Import Communication Certificate area, and select a certificate from the local, and click Install. Install Other Authorized Certificate If you already has an authorized certificate (not created by the device), you can import it to the device directly.

  • Page 119: Chapter 15 Client Software Configuration

    DS-K1T320 Series Face Recogintion Terminal User Manual Chapter 15 Client Software Configuration 15.1 Configuration Flow of Client Software Follow the flow diagram below to configure on the client software. Figure 15-1 Flow Diagram of Configuration on Client Software 15.2 Device Management...

  • Page 120: Add Device

    DS-K1T320 Series Face Recogintion Terminal User Manual Example You can control entrance & exit and manage attendance after adding access control devices to the client; you can perform video intercom with the indoor stations and door stations. 15.2.1 Add Device The client provides three device adding modes including by IP/domain, IP segment, and EHome protocol.
  • Page 121 DS-K1T320 Series Face Recogintion Terminal User Manual you change your password regularly, especially in the high security system, changing the password monthly or weekly can better protect your product. Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

  • Page 122: Reset Device Password

    DS-K1T320 Series Face Recogintion Terminal User Manual Address Edit the address of the device. Port Enter the device port number. The default port number is 8000. User Name Enter the device user name. By default, the user name is admin.

  • Page 123: Manage Added Devices

    DS-K1T320 Series Face Recogintion Terminal User Manual Note For the following operations for resetting the password, contact our technical support. Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 124: Group Management

    DS-K1T320 Series Face Recogintion Terminal User Manual 15.3 Group Management The client provides groups to manage the added resources in different groups. You can group the resources into different groups according to the resources' locations. Example For example, on the 1st floor, there mounted 16 doors, 64 alarm inputs, and 16 alarm outputs. You can organize these resources into one group (named 1st Floor) for convenient management.

  • Page 125: Person Management

    DS-K1T320 Series Face Recogintion Terminal User Manual Note You can click to switch the resource display mode to thumbnail view or to list view. 6. Click Import to import the selected resources to the group. 15.4 Person Management You can add person information to the system for further operations such as access control, video intercom, time and attendance, etc.
  • Page 126 DS-K1T320 Series Face Recogintion Terminal User Manual Import Person Information You can enter the information of multiple persons in a predefined template (CSV/Excel file) to import the information to the client in a batch. Steps 1. Enter the Person module.
  • Page 127 DS-K1T320 Series Face Recogintion Terminal User Manual Note The (folder of) face pictures should be in ZIP format. ● Each picture file should be in JPG format and should be no larger than 200 KB. ● Each picture file should be named as "Person ID_Name". The Person ID should be the same ●...

  • Page 128: Get Person Information From Access Control Device

    DS-K1T320 Series Face Recogintion Terminal User Manual Note The exported file is in ZIP format. ● The exported face picture is named as "Person ID_Name_0" ("0" is for a full-frontal face). ● 15.4.3 Get Person Information from Access Control Device...

  • Page 129: Report Card Loss

    DS-K1T320 Series Face Recogintion Terminal User Manual 3. Optional: Enter key words (name or person ID) in the input box to filter the person(s) that need issuing cards. 4. Optional: Click Settings to set the card issuing parameters. For details, refer to Issue a Card by Local Mode.

  • Page 130: Configure Schedule And Template

    DS-K1T320 Series Face Recogintion Terminal User Manual Local Mode: Issue Card by Card Enrollment Station Connect a card enrollment station to the PC running the client. You can place the card on the card enrollment station to get the card number.

  • Page 131: Add Holiday

    DS-K1T320 Series Face Recogintion Terminal User Manual 15.5.1 Add Holiday You can create holidays and set the days in the holidays, including start date, end date, and holiday duration in one day. Steps Note You can add up to 64 holidays in the software system.
  • Page 132 DS-K1T320 Series Face Recogintion Terminal User Manual Steps Note You can add up to 255 templates in the software system. 1. Click Access Control → Schedule → Template to enter the Template page. Note There are two default templates: All-Day Authorized and All-Day Denied, and they cannot be edited or deleted.

  • Page 133: Set Access Group To Assign Access Authorization To Persons

    DS-K1T320 Series Face Recogintion Terminal User Manual 4) Optional: Select a selected holiday in the right list and click to remove the selected one, or click Clear to clear all the selected holiday(s) in the right list. 7. Click Save to save the settings and finish adding the template.
  • Page 134 DS-K1T320 Series Face Recogintion Terminal User Manual Figure 15-2 Display the Selected Person(s) and Access Point(s) 8. After adding the access groups, you need to apply them to the access control device to take effect. 1) Select the access group(s) to apply to the access control device.

  • Page 135: Configure Advanced Functions

    DS-K1T320 Series Face Recogintion Terminal User Manual Note If you change the persons' access information or other related information, you will view the promptAccess Group to Be Applied on the right corner of the client. You can click the prompt to apply the changed data to the device. You can select either Apply Now or Apply Later.
  • Page 136 DS-K1T320 Series Face Recogintion Terminal User Manual Configure Parameters for Access Control Device After adding the access control device, you can configure its parameters, including overlaying user information on picture, uploading pictures after capturing, saving captured pictures, etc. Steps 1. Click Access Control → Advanced Function → Device Parameter .
  • Page 137 DS-K1T320 Series Face Recogintion Terminal User Manual If enable the function, the device can recognize the EM card. You can present EM card on the device. Note If the peripheral card reader supports presenting EM card, the function is also supported to enable/disable the EM card function.
  • Page 138 DS-K1T320 Series Face Recogintion Terminal User Manual The door contact can be enabled with appropriate delay after person with extended accesss needs swipes her/his card. Door Left Open Timeout Alarm The alarm can be triggered if the door has not been closed in a configured time period. If it is set as 0, no alarm will be triggered.
  • Page 139 DS-K1T320 Series Face Recogintion Terminal User Manual Note The displayed parameters may vary for different access control devices. There are part of ● parameters listed as follows. Refer to the user manual of the device for more details. Some of the following parameters are not listed in the Basic Information page, click More to ●...
  • Page 140 DS-K1T320 Series Face Recogintion Terminal User Manual View the maximum number of available fingerprints. Existing Fingerprint Number View the number of existed fingerprints in the device. Score The device will score the captured picture according to the yaw angle, pitch angle, and pupillary distance.

  • Page 141: Configure Device Parameters

    DS-K1T320 Series Face Recogintion Terminal User Manual 5. Optional: Click Copy to, and then select the card reader(s) to copy the parameters in the page to the selected card reader(s). Configure Parameters for Alarm Output After adding the access control device, if the device links to alarm outputs, you can configure the parameters.
  • Page 142 DS-K1T320 Series Face Recogintion Terminal User Manual Note These parameters displayed vary according to different device models. Select a COM port for configuration. COM1 refers to the RS-485 interface and COM2 refers to the RS-232 interface. Face Picture Database select Deep Learning as the face picture database.
  • Page 143 DS-K1T320 Series Face Recogintion Terminal User Manual 6. Click Save. The configured parameters will be applied to the device automatically. ● When you change the working mode or connection mode, the device will reboot ● automatically. Set Wiegand Parameters You can set the access control device's Wiegand channel and the communication mode.

  • Page 144: Door Control

    DS-K1T320 Series Face Recogintion Terminal User Manual 5. Set the sector ID. Note The sector ID ranges from 1 to 100. ● By default, Sector 13 is encrypted. It is recommended to encrypt sector 13. ● 6. Click Save to save the settings.

  • Page 145: Check Real-Time Access Records

    DS-K1T320 Series Face Recogintion Terminal User Manual Note For Remain All Unlocked and Remain All Locked, ignore this step. 4. Click the following buttons to control the door. Unlock When the door is locked, unlock it and it will be open for once. After the open duration, the door will be closed and locked again automatically.
  • Page 146 DS-K1T320 Series Face Recogintion Terminal User Manual Steps 1. Click Monitoring and select a group from the drop-down list on the upper-right corner. The access records triggered at the doors in the selected group will display in real time. You can view the details of the records, including card No., person name, organization, event time, etc.

  • Page 147: Chapter 16 Select Language

    DS-K1T320 Series Face Recogintion Terminal User Manual Chapter 16 Select Language You can select a language for the device system. After the device activation, you can select a language for the device system from the drop-down list. By default, the system language is English.
  • Page 148 DS-K1T320 Series Face Recogintion Terminal User Manual Chapter 17 Time Settings Set Time and DST Click Wizzard → Time Settings . Time Zone Select the device located time zone from the drop-down list. Time Sync. You should set the NTP server's IP address, port No., and interval.
  • Page 149 DS-K1T320 Series Face Recogintion Terminal User Manual Chapter 18 Environment Settings After activating the device, you should select an application mode for better device application. Steps 1. Click Wizard → Environment Settings. 2. Select Indoor or Other. Note If you install the device indoors near the window or the face recognition function is not ●...
  • Page 150 DS-K1T320 Series Face Recogintion Terminal User Manual Chapter 19 Privacy Settings Set the picture uploading and storage parameters. Go to Wizard → Privacy Settings . Picture Uploading and Storage Save Picture When Authenticating Save picture when authenticating automatically. Upload Picture When Authenticating Upload the pictures when authenticating to the platform automatically.
  • Page 151 DS-K1T320 Series Face Recogintion Terminal User Manual Chapter 20 Administrator Settings Steps 1. Click Wizard → Administrator Settings . 2. Enter the employee ID and name of the administrator. 3. Select a credential to add. Note You should select at least one credential.

  • Page 152: Appendix A. Tips For Scanning Fingerprint

    DS-K1T320 Series Face Recogintion Terminal User Manual Appendix A. Tips for Scanning Fingerprint Recommended Finger Forefinger, middle finger or the third finger. Correct Scanning The figure displayed below is the correct way to scan your finger: You should press your finger on the scanner horizontally. The center of your scanned finger should align with the scanner center.
  • Page 153 DS-K1T320 Series Face Recogintion Terminal User Manual Environment The scanner should avoid direct sun light, high temperature, humid conditions and rain. When it is dry, the scanner may not recognize your fingerprint successfully. You can blow your finger and scan again.

  • Page 154: Appendix B. Tips When Collecting/Comparing Face Picture

    DS-K1T320 Series Face Recogintion Terminal User Manual Appendix B. Tips When Collecting/Comparing Face Picture The position when collecting or comparing face picture is as below: Positions (Recommended Distance: 0.5 m) Expression Keep your expression naturally when collecting or comparing face pictures, just like the ●...
  • Page 155 DS-K1T320 Series Face Recogintion Terminal User Manual Posture In order to get a good quality and accurate face picture, position your face looking at the camera when collecting or comparing face pictures. Size Make sure your face is in the middle of the collecting window.

  • Page 156: Appendix C. Tips For Installation Environment

    DS-K1T320 Series Face Recogintion Terminal User Manual Appendix C. Tips for Installation Environment 1. Light Source Illumination Reference Value Candle: 10Lux Bulb: 100~850Lux Sunlight: More than 1200Lux...
  • Page 157 DS-K1T320 Series Face Recogintion Terminal User Manual 2. Avoid backlight, direct and indirect sunlight...

  • Page 158: Appendix D. Communication Matrix And Device Command

    Device Command Scan the following QR code to get the device common serial port commands. Note that the command list contains all commonly used serial ports commands for all Hikvision access control and video intercom devices. Figure D-2 Device Command...
  • Page 159 UD28901B...

This manual is also suitable for:
