HIKVISION DS-K1T805 Series Quick Start Manual

DS-K1T805 Series
Access Control Terminal
Quick Start Guide
UD32453B
©2023 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.
About this Manual
The Manual includes instruc�ons for using and managing the Product. Pictures, charts, images and all other informa�on
hereina�er are for descrip�on and explana�on only. The informa�on contained in the Manual is subject to change,
without no�ce, due to firmware updates or other reasons. Please find the latest version of this Manual at the Hikvision
website (h�ps://www.hikvision.com/).
Please use this Manual with the guidance and assistance of professionals trained in suppor�ng the Product.
Trademarks
and other Hikvision's trademarks and logos are the proper�es of Hikvision in various jurisdic�ons.
Other trademarks and logos men�oned are the proper�es of their respec�ve owners.
Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT DESCRIBED, WITH ITS
HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED "AS IS" AND "WITH ALL FAULTS AND ERRORS". HIKVISION
MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY
QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO
EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,
INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA,
CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT
(INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT,
EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND HIKVISION
SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES
RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS;
HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE
FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING
THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT
LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY
RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR
PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR
BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR
FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATTER PREVAILS.
Data Protec�on
During the use of device, personal data will be collected, stored and processed. To protect data, the development of
Hikvision devices incorporates privacy by design principles. For example, for device with facial recogni�on features,
biometrics data is stored in your device with encryp�on method; for fingerprint device, only fingerprint template will
be saved, which is impossible to reconstruct a fingerprint image.
As data controller, you are advised to collect, store, process and transfer data in accordance with the applicable data
protec�on laws and regula�ons, including without limita�on, conduc�ng security controls to safeguard personal data,
such as, implemen�ng reasonable administra�ve and physical security controls, conduct periodic reviews and
assessments of the effec�veness of your security controls.

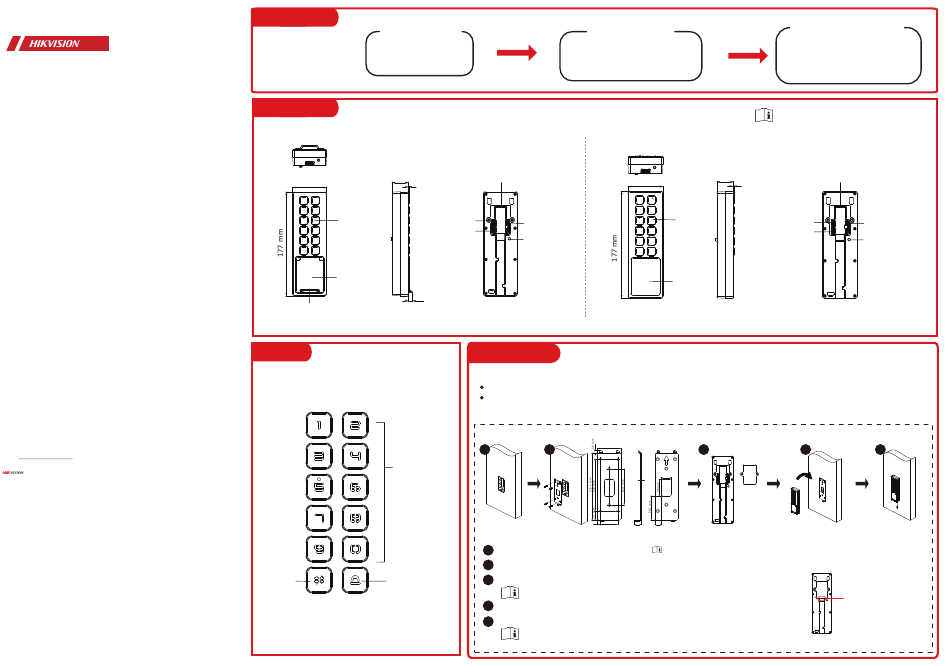

Quick Guide
1 Installation
1.1 Check the environment.
1.3 Install the device.

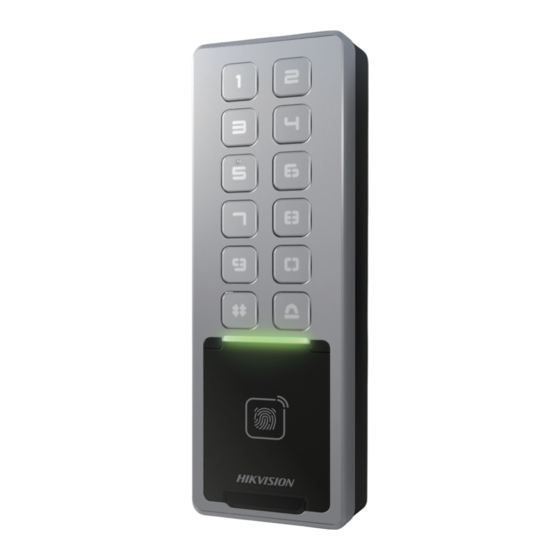

Appearance
Fingerprint + Card Series
27.5 mm
57.7 mm
1 mm
Keypad
Alarm Interface
Debugging Port
(For debugging
only)
Card
Presenting
Area
7.1 mm
Fingerprint Module
(Open to Display)
Keypad
Number Key
Doorbell Button
Confirm Key
Key 5: Hold to enable AP mode
#: Press # to confirm PIN entering.
2 Wiring
2.1 Normal device wiring.
2.2 Wiring with secure door control unit.
Card Series
Network Interface
57.7 mm
Wiring Terminal
(With Power
Input)
Tamper
1
Installation
Before Installation:
Supports indoor and outdoor use.
The minimum bearing weight of the wall or other places should be 3 times heavier than the device weight
1 2
54 mm
2 mm
7 mm 40 mm
14.5 mm
Mounting Plate Dimension
1
Make sure the gang box is installed on the wall.
2
Secure the mounting plate on the wall with 4 supplied screws (SC-KA4X22). Make sure the cables are through the cable hole.
3
Remove the back panel to display the wiring area. Wire the cables and install the back panel back.
Apply Silicone sealant among the cable wiring area to keep the raindrop from entering.
4
Align and hang the device with the mounting plate.
5
Secure the device on the mounting plate with 1 supplied screw (
For more installation methods, see the user manual.
3 Quick Operation
3.2 Activate the device.
3.3 Log in.
The pictures here are for reference only.
27.5 mm Network Interface
1 mm
Keypad
Alarm Interface
Debugging Port
(For debugging
only)
Card
Presenting
Area
.
3 4
23 mm
15.5 mm
Gang box is not supplied.
SC-KM3X8-T10-SUS-NL).
Wiring Terminal
(With Power
Input)
Tamper
5
Apply
Silicone
sealant
