- Page 1 Access Control Terminal Quick Start Guide UD.6L0206D1136A01...
- Page 2 This Manual is subject to domestic and international copyright protection. Hangzhou Hikvision Digital Technology Co., Ltd. (“Hikvision”) reserves all rights to this manual. This manual cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision.
- Page 3 PROFITS, BUSINESS INTERRUPTION, SECURITY BREACHES, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF OR RELIANCE ON THIS MANUAL, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR...
- Page 4 Access Control Terminal·Quick Start Guide Regulatory Information FCC Information compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 5 Access Control Terminal·Quick Start Guide 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg).
- Page 6 Access Control Terminal·Quick Start Guide Please use the power adapter, which is provided by normal company. The power consumption cannot be less than the required value. Do not connect several devices to one power adapter as adapter overload may cause over-heat or fire hazard. ...
- Page 7 Access Control Terminal·Quick Start Guide malfunction however), and affecting the endurance of sensor at the same time. Please use the provided glove when open up the device cover, avoid direct contact with the device cover, because the acidic sweat of the fingers may erode the surface coating of the device cover.
-
Page 8: Table Of Contents
Access Control Terminal·Quick Start Guide Table of Contents 1 Overview ...................... 1 1.1 Introduction ................1 1.2 Main Features ................ 1 2 Appearance ....................3 2.1 Appearance of the Termianl ........... 3 2.2 Description of Keypad Items ..........4 3 Terminal Connection ..................5 3.1 Terminal Description .............. -
Page 9: Access Control Terminal·quick Start Guide

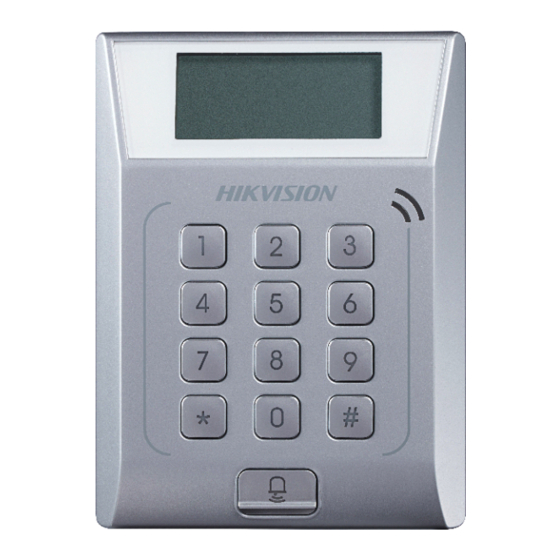

Access Control Terminal·Quick Start Guide 1 Overview 1.1 Introduction Figure 1-1 DS-K1T802 Series Standalone Access Control Terminal DS-K1T802 is a series of standalone access control terminal designed with a LCD display screen. It supports TCP/IP network communication, offline records storage functions and so on. - Page 10 Access Control Terminal·Quick Start Guide data is specially encrypted to relieve the concern of privacy leak Supports EM card and Mifare card reading Supports authentication methods of card, card and password Doorbell ring design Supports time synchronization via NTP, manual or automatic method ...
-
Page 11: Appearance
Access Control Terminal·Quick Start Guide 2 Appearance 2.1 Appearance of the Termianl Please refer to the following content for detailed information of the terminal. Figure 2-1 Appearance of Access Control Terminal Table 2-1 Description of Access Control Terminal Name Description First Line: display date Second Line: display time Display... -
Page 12: Description Of Keypad Items
Access Control Terminal·Quick Start Guide Name Description The operation of Solid Green for pressing keys or a period swiping card is valid. Power The operation of Indicator Solid Red for a pressing keys or period swiping card is invalid. Solid light Normal Link Indicator... -
Page 13: Terminal Connection
Access Control Terminal·Quick Start Guide 3 Terminal Connection 3.1 Terminal Description The following table shows the terminals description Table 3-1 Terminal Description Description Color 12VDC Power Input Black Bell+ Orange Bell Bell- Yellow BUTTON_IN Purple DOOR_COM Green DOOR_NO/NC Blue Door Lock SENSOR_IN White Black... -
Page 14: External Device Wiring
Access Control Terminal·Quick Start Guide 3.2 External Device Wiring Power Supply Wiring Doorbell Wiring Figure 3-1 Power Supply Figure 3-2 Doorbell Wiring Connection Diagram Diagram Door Button Wiring Door Lock Wiring Figure 3-3 Door Button Wiring Figure 3-4 Door Lock Wiring Diagram Diagram... -
Page 15: Installation
Access Control Terminal·Quick Start Guide Door Magnetic Wiring Figure 3-5 Door Magnetic Wiring Diagram 4 Installation Before you start Please make sure that the device in the package is in good condition and all the assembly parts are included. ... -
Page 16: Mounting With Gang Box
Access Control Terminal·Quick Start Guide If the product does not function properly, please contact your dealer or the nearest service center. Do not disassemble the camera for repair or maintenance by yourself. Please make sure the wall is strong enough to withstand three times the weight of the camera and the mounting. -
Page 17: Mounting Without Gang Box
Access Control Terminal·Quick Start Guide 4. Connect the corresponded cables. 5. Align the buckle of the front cover with the slot of the mounting base, and hang the front cover onto the mounting base. Make sure the buckle is embedded into the slot. - Page 18 Access Control Terminal·Quick Start Guide Figure 4-4 Install the Figure 4-5 Attach the Front Mounting Base Cover 5. Connect the corresponded cables. 6. Align the buckle of the front cover with the slot of the mounting base, and hang the front cover onto the mounting base.
-
Page 19: Activating The Access Control Terminal
Access Control Terminal·Quick Start Guide 5 Activating the Access Control Terminal Purpose: You are required to activate the terminal first before using Activation via SADP, and Activation via client software are supported. The default values of the control terminal are as follows. ... - Page 20 Access Control Terminal·Quick Start Guide Figure 5-1 SADP Interface 3. Create a password and input the password in the password field, and confirm the password. STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the...
-
Page 21: Activating Via Client Software
Access Control Terminal·Quick Start Guide 4. Click OK to save the password. You can check whether the activation is completed on the pop-up window. If activation failed, please make sure that the password meets the requirement and then try again. 5. - Page 22 Access Control Terminal·Quick Start Guide Get the client software from the supplied disk or the official website, and install the software according to the prompts. Follow the steps to activate the control panel. Steps: 1. Run the client software and the control panel of the software pops up, as shown in the figure below.
- Page 23 Access Control Terminal·Quick Start Guide figure below. Figure 5-4 Device List 4. Check the device status from the device list, and select an inactive device. 5. Click the Activate button to pop up the Activation interface. Figure 5-5 List Selecting Interface 6.
- Page 24 Access Control Terminal·Quick Start Guide STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
