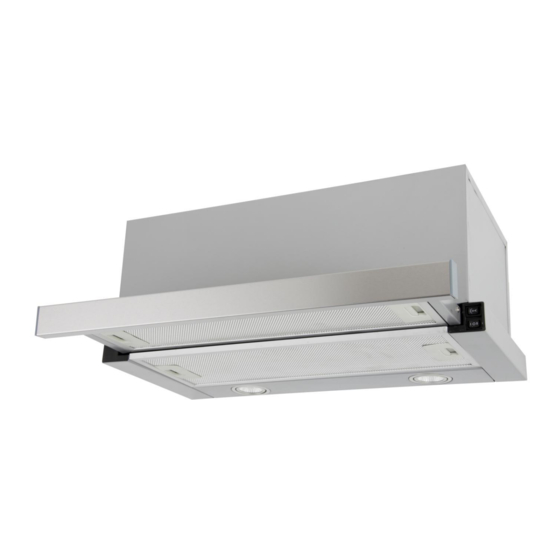

- Page 1 Issue: 1 Description: ROBINHOOD SLIDEOUTS Model RSA2CL6SS Numbers: RSA2CL9SS RSA2CL6SS model pictured...
- Page 2 * All dimensions shown above are in mm and apply to 600mm and 900mm models Pre-installation Thank you for purchasing a quality Robinhood rangehood. Robinhood has a high standard of quality control and every rangehood is tested and approved before it leaves the factory.
- Page 3 Some authorities require rangehoods to be vented outside. Ducted models should comply with this requirement in every respect. Please note that this chart is designed as a guide. Please consult Robinhood customer services if unsure. For NZ phone 0800 760 667 or www.robinhood.co.nz. For AUS phone 1800 648 556 or www.robinhood.com.au.
- Page 4 Installation continued holes Cabinet holes * All dimensions shown above are in mm TO INSTALL To install the rangehood you will need to drill four 6mm holes into the base of the cabinet to correspond with the existing holes in the rangehood as shown in the drawing above. To allow the ducting vent and power cord to fit into the cabinet, you will need to cut a 280mm x 200mm hole into the base of the cabinet as shown in the diagram above.
- Page 5 To remove the filters from their locations you will need to release the anchoring points as shown below, to install is the reverse of the removal. Replacement of LED Lamps – RSA2CL6SS & RSA2CL9SS models To replace a lamp, first disconnect the rangehood from the power supply and ensure the lamp has had time to cool down before touching.
- Page 6 Product approvals and ratings Product approval number SGS/100427 Product rating 202W Max at 220-240V 50Hz Electric approval AS/NZS 60335.2.31:2004, +A1:2006+A2:2007+A3:2009 EMC approval AS/NZS CISPR 14.1:2010 Performance tested IEC61591 Important safety information This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 7 The product was not used, cleaned or cared for in accordance with our instructions. The product was used outdoors. All Robinhood rangehoods are suitable for indoor use only, and not suitable over BBQs or charcoal cookers designed for outdoor use.
- Page 8 The product was not used, cleaned or cared for in accordance with our instructions. The product was used outdoors. All Robinhood rangehoods are suitable for indoor use only, and not suitable over BBQs or charcoal cookers designed for outdoor use.
