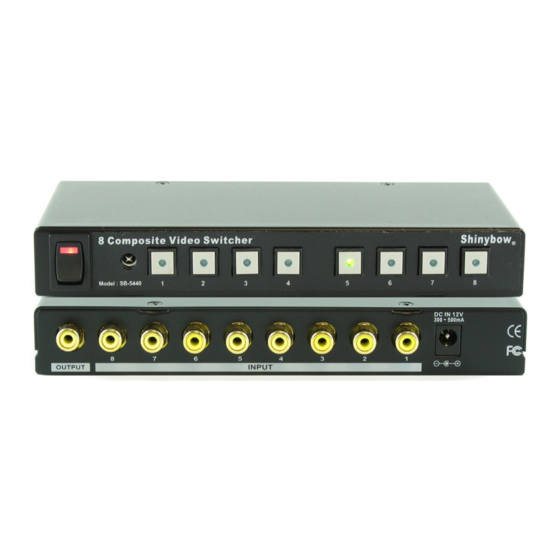

- Page 1 SB-5440RCA 8x1 Composite Video Selector Switcher w/ IR Remote Control (RCA)
-
Page 2: Safety Information
SAFETY INFORMATION 1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. 2. Follow all instructions printed on unit chassis for proper operation. 3. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. •... -
Page 4: Package Contents
INTRODUCTION Composite Video Routing Switcher Series Thank you for purchasing the SB-5440RCA Composite Video Routing Switcher. You will find this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use this switcher. -
Page 5: Features & Specifications
FEATURES / SPECIFICATIONS FEATURES • Support (8) Inputs to (1) Output RCA Composite Video Switcher • Control by front push buttons with LCD readout • Supports lower power consumption full load under 500mA • Ideal for home theater integration • Supports TV signals up to 1000 feet away •... -
Page 6: Typical Hookup And Operation
TYPICAL HOOKUP AND OPERATION IR: Remote Control receiver (8) Video Select Buttons Input: (8) Composite Video Output: (1) Composite Video DC Input: 12V@660mA Safeguards and Precautions A. Keep this unit away from fire, extremely hot areas, water or moisture of any kind. B. - Page 7 TYPICAL HOOKUP AND OPERATION...
-
Page 8: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using or installing the product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the product and return the product to SHINYBOWUSA, Inc.
