Item: BR6DRLEEDR-T
Please visit our website for the most current instructions, assembly tips, to report damage
or request parts. www.walkeredison.com
Copyright © 2018, by Walker Edison Furniture Co., LLC,
Copyright © 2018, by W

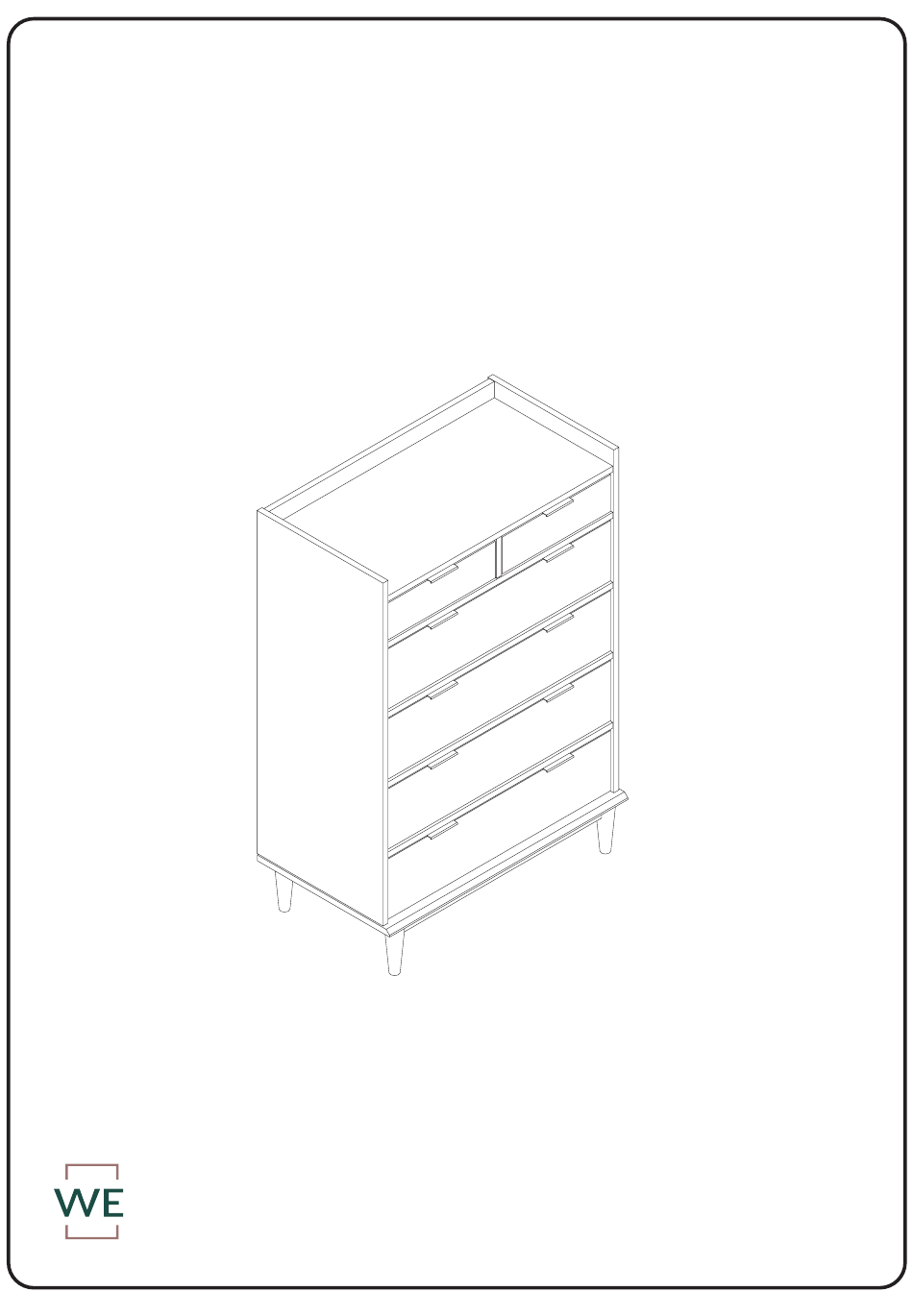

Assembly Instructions
alker Edison Furniture Co., LLC, All rights reserved.
Revised 07/2024-V2
All rights reserved.
P.1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Walker Edison BR6DRLEEDR-T
Summary of Contents for Walker Edison BR6DRLEEDR-T
- Page 1 Please visit our website for the most current instructions, assembly tips, to report damage or request parts. www.walkeredison.com Revised 07/2024-V2 Copyright © 2018, by W Copyright © 2018, by Walker Edison Furniture Co., LLC, alker Edison Furniture Co., LLC, All rights reserved. All rights reserved.
- Page 2 A phillips head screwdriver, hammer and tape measure is required for the assembly of this product.
-
Page 3: Parts List
Parts List The side drawer with WARNING LABEL, should be mounted in highest Description Description Part # Part # Top panel 01 pc Top rail 01 pc Left side panel 01 pc 12 pcs Wood slider Right side panel 01 pc 01 pc Small divison 01 pc... -
Page 4: Hardware List
Hardware List 60 pcs Ø8*30mm Wood dowel 12 pcs Ø8*40mm Wood dowel 36 pcs Wood dowel Ø10*20mm 20 pcs Ø3,0*12mm Screw 09 pcs Ø3,5*20mm Screw 36 pcs Ø4,0*25mm Screw 35 pcs Ø3,5*30mm Screw 23 pcs Ø4,0*40mm Screw 10 pcs Handle Ø8,0*31mm 35 pcs Cam bolt... - Page 5 Step 1 Attention to the dowel size: Ø10*20mm Insert ood dowel ( ) into part Ø10*20mm Step 2 Insert wood dowel (A) into part s 1, 2 3, 14, 15, 16, 18, 23, 24, Ø8*30mm 36, 46 and 47.
- Page 6 Step 3 1 - Ensure cam bolt is installed straight and not at an angle. 2 -Tighten cam bolt until shoulder on cam bolt is flush. Do not over-tighten. Screw cam bolts (K) into parts 1, 2, 3 and 8 with a phillips head screwdriver.
- Page 7 Step 4 Secure parts 17 to parts 2, 3 and 18 with screw (F) and head screwdriver. Ø4,0*25mm Step 5 Secure part 16 to part 1 with screw (G) and head screwdriver. Ø3,5*30mm...
- Page 8 Step 6 Align the opening in cam lock to the cam bolt and press into opening. Using a screwdriver, rotate the cam lock until it engages with the cam bolt and locks in place (anywhere between 90-180 degrees). Do not over-tighten the cam lock.
- Page 9 Step 8 Secure parts 14 and 15 to part 2. Insert cam locks (L) Ø15*11mm into parts 14 and 15, and tighten with a head screwdriver. Step 9 Secure part 15 to part 18 with screw (H) and phillips head screwdriver. Ø4,0*40mm...
- Page 10 Step 10 Secure parts 1, 14 and 15 to part 3. Insert cam locks (L) Ø15*11mm into parts 1, 14, and 15, and tighten with a phillips head screwdriver. Step 11 Secure part 4 to parts 2 and 3 with screw (H) head screwdriver.
- Page 11 Step 12 Secure part 24 to parts 36, with screw (H) and phillips head screwdriver. Ø4,0*40mm Step 13 Secure parts 23 to parts 36, with screw (H) and phillips head screwdriver. Ø4,0*40mm P.11...
- Page 12 Step 14 Secure parts 23 to parts 36, with screw (H) and phillips head screwdriver. Ø4,0*40mm Step 15 Secure parts 23 and 24 to part 4 with screw (H) and Ø4,0*40mm head screwdriver. P.12...
- Page 13 Step 16 Insert cam locks (L) into part 16, and tighten with a Ø3,5*20mm head screwdriver. Secure back panel 19 to parts 1 and 4 as shown above with screw (E) and phillips head screwdriver. Ø15*11mm Step 17 Secure parts 5 and 6 to part 8. Secure parts 5 and 7 to part 8.
- Page 14 Step 18 Insert part 9 between the grooves of parts 5, 6 and 7. Secure part 10 to part 5, 6 and 7 with screw (G) and phillips head screwdriver. Ø3,5*30mm Step 19 Ø3,0*12mm Secure handle (J) with screw (D) and head screwdriver, in the pre-drilled holes on the drawer front.
- Page 15 Step 20 Secure parts 46 and 47 to part 20 with screw (G) and head screwdriver. Insert part 21 between the grooves of parts 46 and 47. Secure part 22 to parts 46 and 47 with screw (G) and phillips head screwdriver.
- Page 16 Step 22 Insert wood dowel (A) into part 17 to be the stop of the drawer. Ø8*30mm Step 23 The assembled drawer with this warning must be placed on top of the unit. Insert wood dowel (B) on the inside of all drawers, with the drawer inside the unit, after having passed the wood dowel that is in the drawer slide.
- Page 17 Step 24 WARNING Serious or fatal injuries can occur from furniture tipping over. To prevent the furniture from tipping over we recommend that it is permanently fixed to the wall. Wall anchor and hardware are included with this product. Please make sure hardware is suitable for your walls before installing, as different wall materials may require different types of anchors.
- Page 18 Step 25 Assembly Complete! P.18...
