- Page 1 Manual | EN C6027 Industrial PC 12/2/2021 | Version: 1.1...
-
Page 3: Table Of Contents
Grounding of the Industrial PC .................. 28 4.3.2 Connecting cables and power supply ................ 29 Switching the Industrial PC on and off..................... 30 5 Beckhoff Device Manager ........................ 31 6 Decommissioning............................ 33 Disconnecting the power supply and cables ................... 33 Disassembly and disposal ....................... 34 7 Maintenance ............................. 36... - Page 4 Table of contents 8 Troubleshooting ............................ 41 9 Technical data............................ 42 10 Appendix .............................. 43 10.1 Service and support......................... 43 10.2 Approvals............................ 44 Version: 1.1 C6027...
-
Page 5: Notes On The Documentation
Copyright © Beckhoff Automation GmbH & Co. KG. Publication of this document on websites other than ours is prohibited. Offenders will be held liable for the payment of damages. All rights reserved in the event of the grant of a patent, utility model or design. -
Page 6: For Your Safety
Exclusion of liability Beckhoff shall not be liable in the event of non-compliance with this documentation and thus the use of the devices outside the documented operating conditions. Description of safety symbols The following safety symbols are used in these operating instructions. -
Page 7: Fundamental Safety Instructions
• the operating instructions are in good condition and complete, and always available for reference at the location where the products are used. C6027 Version: 1.1... -
Page 8: Notes On Information Security
For your safety Notes on information security The products of Beckhoff Automation GmbH & Co. KG (Beckhoff), insofar as they can be accessed online, are equipped with security functions that support the secure operation of plants, systems, machines and networks. Despite the security functions, the creation, implementation and constant updating of a holistic security concept for the operation are necessary to protect the respective plant, system, machine and networks against cyber threats. -
Page 9: Product Overview

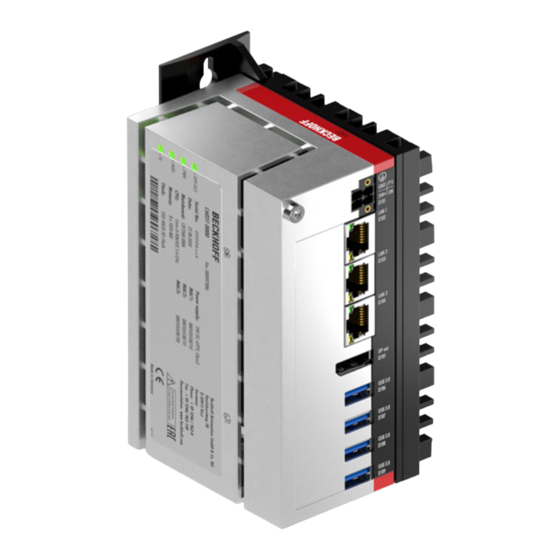

Product overview Product overview The C6027 Industrial PC belongs to the series of ultra-compact Industrial PCs for space-saving control cabinet installation. It is a high-performance device with comparatively low energy consumption. It combines the compactness and fanless design of the C601x devices with the high performance of the C603x devices. -
Page 10: Structure
Product overview Structure Fig. 1: C6027_Structure – basic configuration Table 1: Key: C6027 structure Component Description Mounting plate Plate for mounting the Industrial PC via the rear panel in the control cabinet Status LEDs Status display for UPS-OCT, power, hard disk, TwinCAT... -
Page 11: Interface Description
Product overview Interface description The basic version of the C6027 has the following interfaces: • Power supply (X101) • Ethernet RJ45 (X102-X104) • DisplayPort (X105) • USB (X106-X109) 3.2.1 Power supply The Industrial PC is supplied with a rated voltage of 24 V. The 2x2-pin voltage socket (X101) is used for connection to the power supply and the external wiring of the Industrial PC. -
Page 12: Ethernet Rj45
Product overview 3.2.2 Ethernet RJ45 The C6027 has three Gigabit LAN ports (X102-X104). The Ethernet standards 100Base-T and 1000Base-T enable connection of corresponding network components with data rates of 100/1000 Mbit/s. The required speed is selected automatically. The RJ45 connection technology with twisted-pair cables is used. The maximum length of the cable connection is 100 m. -
Page 13: Usb
X106 1 2 3 4 X107 X108 1 2 3 4 X109 Fig. 4: C6027_USB interface pin numbering Table 5: USB interface pin assignment Assignment Shield Vbus StdA_SSRX - StdA_SSRX + GND_DRAIN StdA_SSTX - StdA_SSTX + C6027 Version: 1.1... -
Page 14: Displayport
The Industrial PC has a DisplayPort (X105) that enables connection of devices with DisplayPort. It facilitates transfer of image signals. In addition, DVI signals can be transferred via an adapter. Please order it from your Beckhoff sales team, quoting order identifier C9900-Z468 adapter cable DisplayPort to DVI, 40 cm. -
Page 15: Optional Interfaces
Any interfaces that are ordered are installed ex factory. They extend the connection area at the front of the Industrial PC (see fig. 6). Fig. 6: C6027_Optional interfaces There is no possibility to extend the interfaces or to add a 1-second UPS. Only one of the two options is available. C6027 Version: 1.1... -
Page 16: Ethernet Rj45
The LED flashes when data transfer is in progress. The upper LED indicates the speed of the data transfer. If the speed is 10 Mbit/s, the LED is not lit. At 100 Mbit/s the LED lights up orange, at 1000 Mbit/s it lights up green. Version: 1.1 C6027... -
Page 17: Status Leds
• the transmission quality of the UPS-OCT signals • the status of the power controller • the hard disk activity • the TwinCAT status Fig. 8: C6027 Status LEDs 3.4.1 UPS-OCT LED The UPS-OCT LED indicates the transmission quality of the UPS-OCT signals. UPS stands for the uninterruptible power supply. -
Page 18: Pwr Led
Flashing Checksum error during the I2C transmission in the bootloader Cyan Flashing (2 s) contact Beckhoff Service 3.4.3 HDD LED The HDD LED indicates the activity of the storage medium. The colors and flashing intervals have the following meanings: Table 10: Meaning of the HDD LED... -
Page 19: Name Plate
The name plate provides information on the equipment fitted to the Industrial PC. xxxxxxxx xxxxxxxxxxxx xxxxxxxxxxxx xxxxxxxxxxxx Fig. 9: C6027_Name plate Table 12: Key - C6027 name plate Description Manufacturer, including address Model: The last four digits indicate the product variant. Serial number (BTN) UPS-OCT LED... -
Page 20: 1-Second Ups
Fig. 10: UPS function The UPS can be controlled from the PLC with the function block FB_S_UPS_BAPI. More detailed information can be found in the Beckhoff Information System under the following link: https:// infosys.beckhoff.com/index.php?content=../content/1031/ tcplclib_tc2_sups/27021601480747275.html&id=7167070070491500024. Version: 1.1... -
Page 21: Commissioning
5. Check the contents for visible shipping damage. 6. In case of discrepancies between the package contents and the order, or in case of transport damage, please inform Beckhoff Service (see Chapter 10.1 Service and support [} 43]). C6027 Version: 1.1... -
Page 22: Installation In The Control Cabinet
Commissioning Installation in the control cabinet The C6027 Industrial PC is designed for installation in control cabinets in machine and plant technology. Please observe the environmental conditions prescribed for the operation (see Chapter 9 Technical data [} 42]). Using different mounting plates, you can align the cable entry based on the application requirements. -
Page 23: Mounting Options
In the case of mounting plate 2, there are two different mounting options for the device. Fig. 13 shows the possible mounting options: • Connections point to the right (A) • Connections point to the left (B) Fig. 13: C6027 _Mounting options for mounting plate 2 C6027 Version: 1.1... -
Page 24: Dimensions
Fig. 15: C6027 _Mounting plate side panel Fig. 16 illustrates the dimensions using the mounting options via the rear of the device with mounting plate 3 with DIN rail adapter as an example. 69,3 99,2 Fig. 16: C6027 _Mounting plate DIN rail adapter Version: 1.1 C6027... -
Page 25: Installation In The Control Cabinet
After you have drilled the holes for the fastening screws in the control cabinet, you can mount the Industrial PC in the control cabinet with mounting plates 1 or 2. Fig. 17: C6027 _Mounting plates for control cabinet installation To install the Industrial PC in the control cabinet, follow the steps below: 1. -
Page 26: Fig. 18 C6027_Din Rail Adapter For Control Cabinet Installation
3. Keep the device pressed upwards and also hook the upper side of the adapter into the DIN rail (C). ð You have successfully installed the Industrial PC on the DIN rail. Fig. 19: C6027_DIN rail adapter mounted Version: 1.1 C6027... -
Page 27: Connecting The Industrial Pc
Devices connected to the Industrial PC with their own power supply must have the same potential for the PE and "0 V" conductors as the Industrial PC (no potential difference). 230 V 24 V Grounding busbar Fig. 20: C6027 _Wiring example C6027 Version: 1.1... -
Page 28: Grounding Of The Industrial Pc
The functional earth is necessary for the EMC of the device. The functional earthing is also established via the earthing connection between the protective conductor connection on the device and the central grounding point of the control cabinet in which the PC is installed. Version: 1.1 C6027... -
Page 29: Connecting Cables And Power Supply
4. Fasten the power cable to the voltage connector of the Industrial PC. 5. Connect the PC to your external 24 V power supply. 6. Switch on the 24 V power supply. 7. Measure the voltage on the power supply plug of the PC. C6027 Version: 1.1... -
Page 30: Switching The Industrial Pc On And Off
When you switch on the Industrial PC for the first time, the pre-installed operating system (optional) will be started. For any additional hardware you have connected, you have to install the drivers yourself afterwards. In addition, the Beckhoff Device Manager starts automatically. The Device Manager is a software from Beckhoff that supports you in configuring the PC. -
Page 31: Beckhoff Device Manager
• User name: Administrator • Password: 1 You also have the option of using the Beckhoff Device Manager to remotely configure the Industrial PC via a web browser. More detailed information is available in the Beckhoff Device Manager manual. First start Beckhoff Device Manager When your Industrial PC is booted for the first time, the Beckhoff Device Manager also starts automatically for the first time. -
Page 32: Fig. 22 Beckhoff Device Manager - Start Page
Secure passwords Strong passwords are an important prerequisite for a secure system. Beckhoff supplies the device images with standard user names and standard passwords for the operating system. It is imperative that you change these. Controllers are shipped without a password in the UEFI/BIOS setup. Beckhoff recommends assigning a password here as well. -
Page 33: Decommissioning
To disconnect the cables from the Industrial PC, proceed as follows: 1. Make a note of the wiring configuration, if you wish to restore it with another device. 2. Disconnect all data transfer cables from the Industrial PC. 3. Finally, disconnect the ground connection. C6027 Version: 1.1... -
Page 34: Disassembly And Disposal
3. Remove the PC from the control cabinet. ð You have successfully disassembled the PC. Fig. 23: C6027 _Position of the fastening screws Disassembly via DIN rail adapter To remove the Industrial PC from the control cabinet via mounting plate 3 with the DIN rail adapter, follow the steps below, which are shown in Fig. - Page 35 • Electronic parts such as fans and circuit boards must be disposed of in accordance with national electronic scrap regulations. • Stick insulating tape over the poles of the CR2032 battery on the motherboard and dispose of the battery via the local battery recycling. C6027 Version: 1.1...
-
Page 36: Maintenance
Repair Only the manufacturer may repair the device. If a repair should be necessary, contact Beckhoff Service (see Chapter 10.1 Service and support). Cleaning... -
Page 37: Table 14 Replacement Recommendations For Pc Components
NOTE Use of incorrect spare parts The use of spare parts not ordered from Beckhoff Service can lead to unsafe and faulty operation. • Only use spare parts that you have ordered from Beckhoff Service. Beckhoff Industrial PCs are manufactured from components of the highest quality and robustness. They are selected and tested for best interoperability, long-term availability and reliable function under the specified environmental conditions. -
Page 38: Fig. 25 C6027 _Access To Battery And Storage Media
To do this, remove the two Torx TX6 screws and take off the cover (see Fig. 25). Fig. 25: C6027 _Access to battery and storage media You now have access to the battery (1) and storage medium (2) (see Fig. 26). -
Page 39: Replacing The Battery
It is used to supply power to the clock integrated on the motherboard. If the battery is depleted or missing, the date and time are displayed incorrectly. Replacement batteries should only be obtained from Beckhoff Service (see Chapter 10.1 Service and support). -
Page 40: Replacing The Storage Media
If you want to exchange a storage medium according to Beckhoff's recommendation, you must copy the data from the old to the new storage medium. You can use the Beckhoff Service Tool (BST) for this purpose. The BST is a graphical backup and restore program for Industrial PCs with a Windows operating system. You can create an image of your operating system and use it to back up the operating system. -
Page 41: Troubleshooting
Nothing happens after the Missing power supply of the Check the power supply cable Industrial PC has been switched on Industrial PC Call Beckhoff Service Other cause The Industrial PC does not boot Setup settings are incorrect Check the setup settings... -
Page 42: Technical Data
Technical data Technical data Table 17: Technical data Product designation C6027 Dimensions (W x H x D) 82 x 127 x 69 mm, without mounting plate Weight approx. 1000 g without mounting plate approx. 1060 g with mounting plate Supply voltage 20.4-30 V... -
Page 43: Appendix
Phone: + 49 (0) 5246/963-0 Fax: + 49 (0) 5246/963-198 e-mail: info@beckhoff.de The addresses of the worldwide Beckhoff branch offices and agencies can be found on our website at http:// www.beckhoff.com/. You will also find further documentation for Beckhoff components there. -
Page 44: Approvals
Appendix 10.2 Approvals The following table shows the approvals of the Industrial PC based on the device generation: Table 18: C6027 approvals Device generation Approvals C6027-0000 CE, EAC, UKCA, FCC You will find all other applicable approvals on the name plate of your device. - Page 45 C6027 _Mounting plates......................Fig. 12 C6027_Mounting options - mounting plates 1 and 3 ..............Fig. 13 C6027 _Mounting options for mounting plate 2 ................Fig. 14 C6027 _mounting plate rear panel ....................Fig. 15 C6027 _Mounting plate side panel ....................
- Page 46 Table 9 Meaning of the PWR LED......................Table 10 Meaning of the HDD LED ......................Table 11 Meaning of the TC LED ....................... Table 12 Key - C6027 name plate ......................Table 13 Mounting plate ordering options ....................Table 14 Replacement recommendations for PC components ..............
- Page 48 More Information: www.beckhoff.com/C6027/ Beckhoff Automation GmbH & Co. KG Hülshorstweg 20 33415 Verl Germany Phone: +49 5246 9630 info@beckhoff.com www.beckhoff.com...
