7.2 Split Ports modes

In the case where there are two physical networks, one of the two Split
modes can be used to separate ports 1 and 2 from ports 3 and 4, or to
separate ports 1, 2 and 3 from port 4.

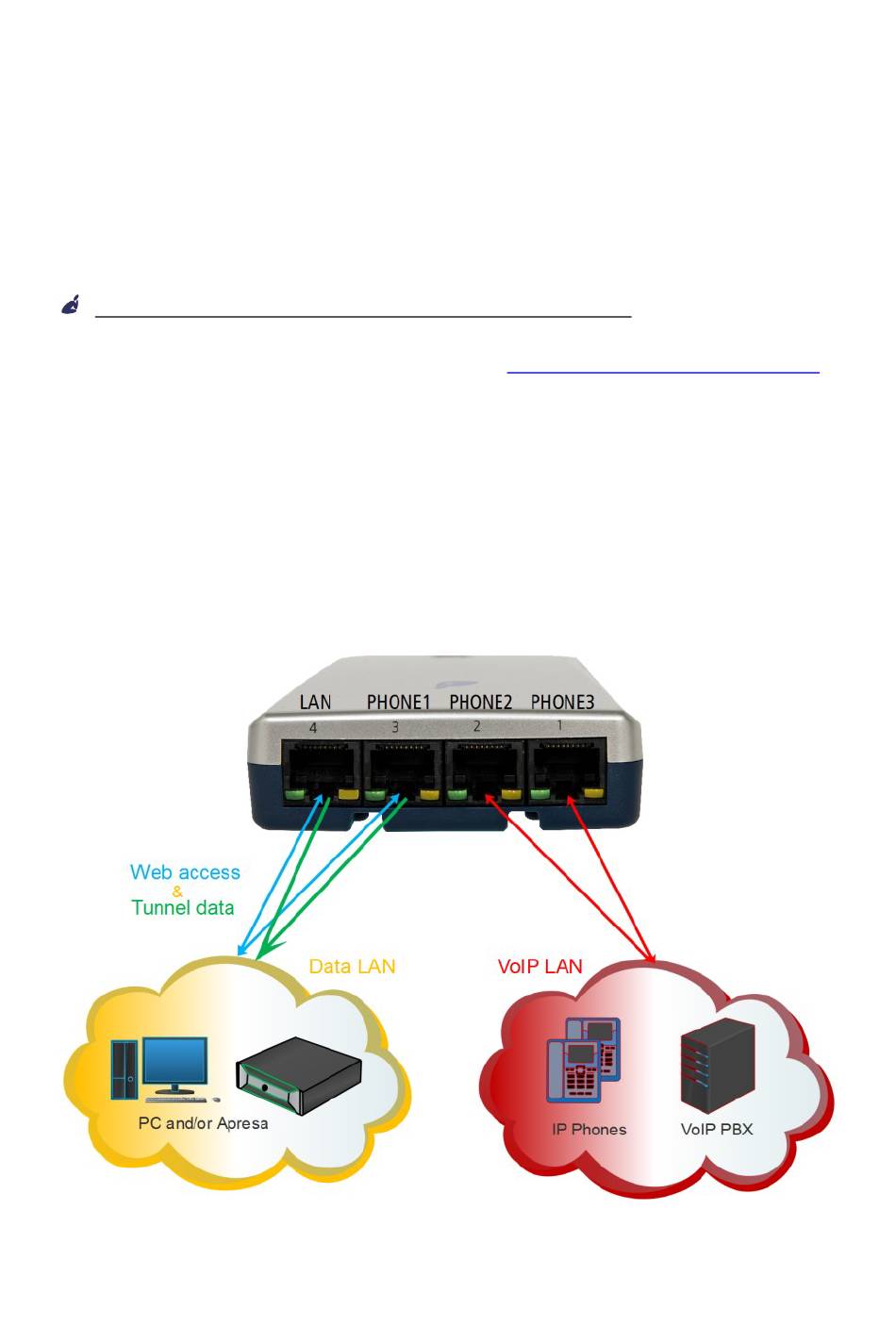

.S3 = Split Ports 3 4 from recording ports 1 2
This mode can be set by entering ".S3" in
In this case, ports 3 and 4 are meant to be used for the Tunnel function
and the web interface (the data LAN) and ports 1 and 2 are connected
to VoIP phones or a VoIP LAN.
Between ports 3 and 4 there is normal switch functionality. Also,
between ports 1 and 2 there is normal switch functionality. But port 3
and port 2, for example, are separated and do not exchange packets.
Ports 3 and 4 are named '
