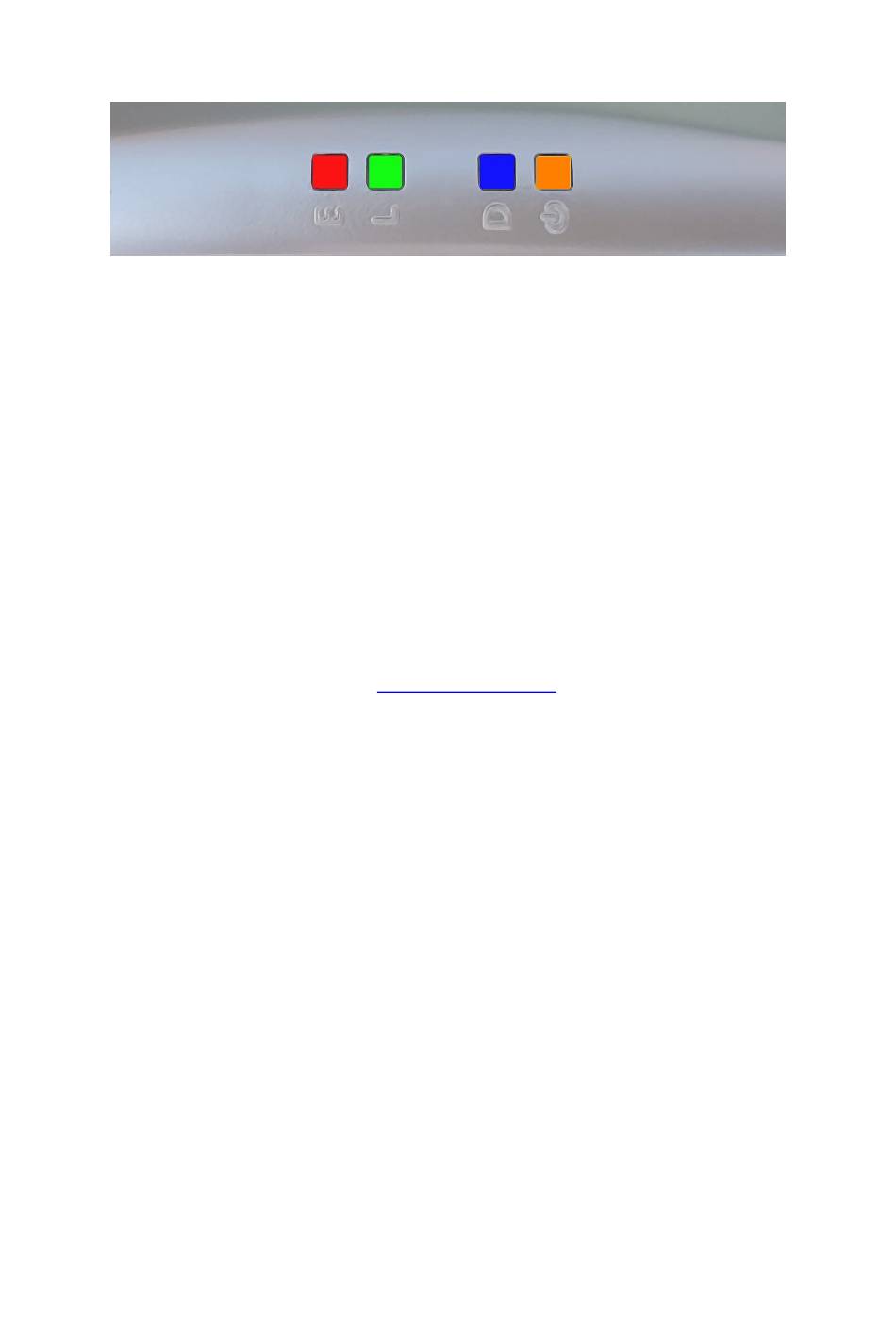

4 LED's

The 4 LED's are important for feedback to the user. Specially during first
installation, the LED's can tell you if things are going wrong or right.
The Blue LED may always blink a little when the network is connected,
meaning that data is received by the V-Tap VoIP. The status of the V-Tap
must be read from the Red, Green and Amber LED's.
Situations with the LED's that are related to pressing the button are
described in the next chapter
The situations during normal operation are described per LED below.

4.1 Red Error LED

The Red LED is used to indicate an error situation or to show the
recording state when the button start/stop mode is configured.
Red LED steady ON plus Green LED and Amber LED
•
blinking opposite.
This is the factory default and means that no Tunnel server is
defined and no SD card is inserted, so no data is stored or sent.
Entering an address for the Tunnel server and/or inserting an SD
card solves the situation.
Red LED steady ON plus Green LED blinking slow.
•
The V-Tap unit tries to connect to the Tunnel server.
V-Tap VoIP Manual EN v3.23 Aug 2021
E = Error
L = Link
D = Data
@ = SD-Power (Amber)
Button functions
© 2017-2021 Vidicode
(Red)
(Green)
(Blue)
.
