Shell ReCharge
Portable Electric Vehicle Charger
SEV-32-01
SEV-40-01
© 2021 Shell Brands International AG. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEV-32-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shell SEV-32-01

Summary of Contents for Shell SEV-32-01

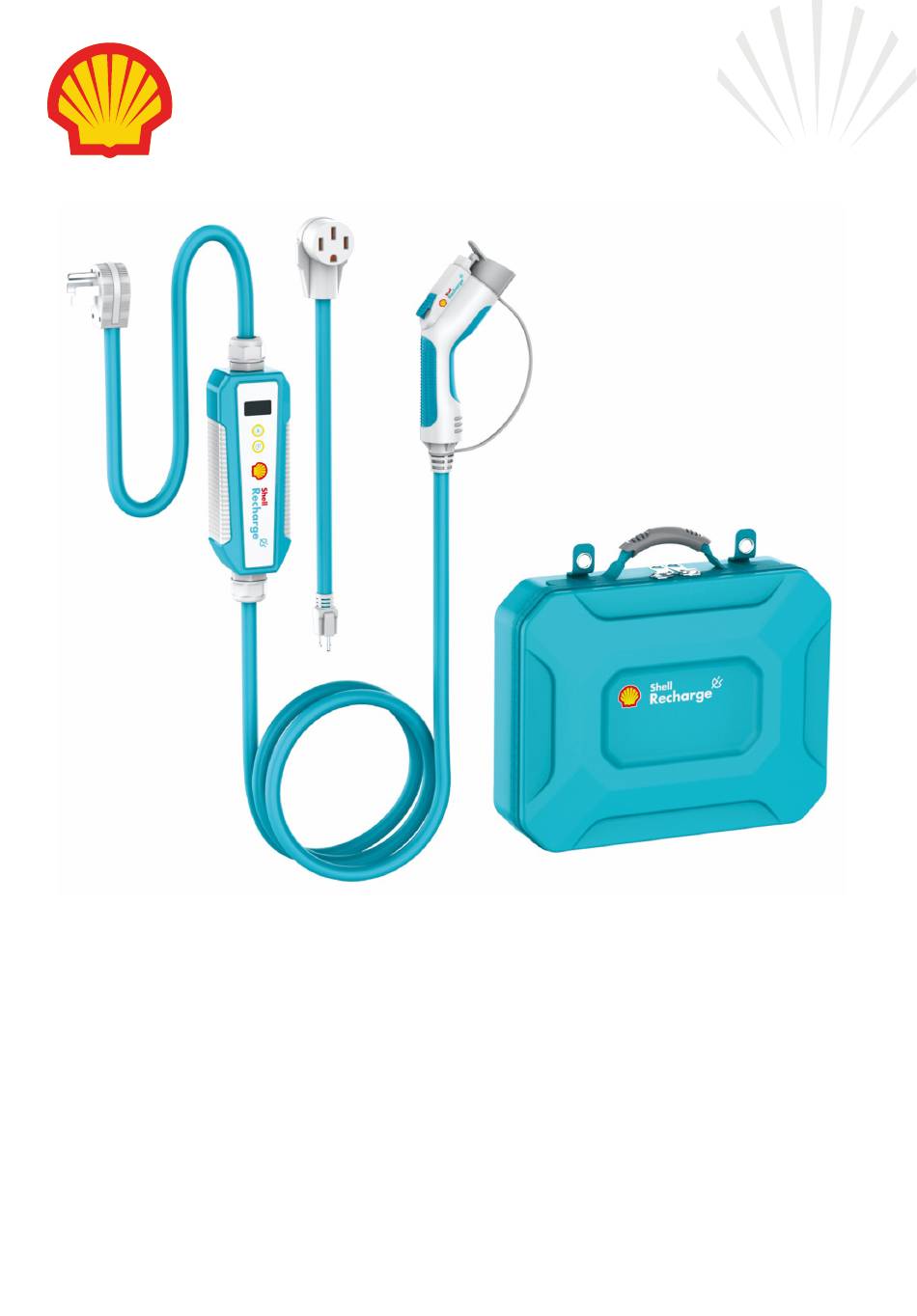

  • Page 1 Shell ReCharge Portable Electric Vehicle Charger SEV-32-01 SEV-40-01 © 2021 Shell Brands International AG. All rights reserved.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ........3 BEFORE FIRST USE .

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS CAUTION INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR ELECTRIC SHOCK: To reduce the risk of fire, connect only to a circuit provided with 50 amperes maximum branch circuit over current protection. WARNING When using electric products, basic precautions should always be followed, including the following.
  • Page 5 CAUTION Do not use this product if there is any damage to the unit. Send the unit back to the manufacturer in the event the unit is not operational. g) This product must be only plugged into 1-phase outlet. If you are in doubt, consult with your local electrician.

  • Page 6: Before First Use

    BEFORE FIRST USE DANGER Keep any packaging materials away from children and pets – these materials are a potential source of danger, e.g. suffocation. • Remove all the packing materials. • Remove and review all components before use. EXPLANATION OF SYMBOLS The lightning flash with arrowhead within a triangle is intended to tell the user that parts inside the product are a risk of shock to persons.

  • Page 7: Intended Use

    INTENDED USE WARNING Do not use the product when either you, the vehicle or the product is exposed to severe rain, snow, electrical storm or other inclement weather. WARNING If rain falls during charging, do not allow rain water to run along the length of the charging cable.

  • Page 8: Parts And Features

    PARTS AND FEATURES Grounded power plug Display Current button Timer button Main unit NEMA 5-15P to 14-50R adapter Charging gun (SAE J1772) Release lever Plug cover Storage case...
  • Page 9 Display Main unit’s temperature Charging time Input voltage Mode Actual current output Instantaneous power Consumed power Set current output...

  • Page 10: Operating Instructions

    OPERATING INSTRUCTIONS Connecting to the outlet CAUTION • The product’s maximum working current is 32 A (model SEV-32-01) or 40 A (model SEV-40-01). Ensure the circuit breaker of the outlet or the GFCI outlet supports current of 50 A or more.
  • Page 11 Automatic charging NOTICE • When connected to the outlet, the product starts charging few seconds after connecting the charging gun to the vehicle’s charging socket. • The product automatically detects outlet voltage and maximum allowable input current of your vehicle. •...
  • Page 12 For 120 V: 12 A → 16 A For 240 V: SEV-32-01 12 A → 16 A → 24 A → 32 A SEV-40-01 12 A → 16 A → 24 A → 32 A → 40 A •...

  • Page 13: User Maintenance Instructions

    Operation Display • The countdown starts when the delayed charging time is set. Current button indicator lights up yellow. • The charging time indicator shows the time remaining to start the charging. Error Display Operation Operation error (see Error Codes chapter). Current button indicator blinks red.

  • Page 14: Specifications

    SPECIFICATIONS Model: SEV-32-01, SEV-40-01 Rated input/output 120 /240 V AC single-phase voltage: Rated frequency: 50/60 Hz 32 A (model SEV-32-01) Rated current: 40 A (model SEV-40-01) Charging connector: J plug (SAE J1772) Power plug type: NEMA Type 14-50 Compatible outlet:...

  • Page 15: Troubleshooting

    TROUBLESHOOTING Problem Solution The product does not switch on Check if the product is properly connected to the outlet. • Ensure the vehicle is turned off. The product does not charge • Check if the product is properly connected to the vehicle and the outlet.

  • Page 16: Error Codes

    ERROR CODES Display Error code Problem Solution notice The product will automatically stop charging. Wait until the product Product over-temperature OVER-TEMP cools down, then use the product again. The product will automatically stop charging. Wait until the voltage LOW Vin AC input under voltage returns to optimal range, then use the product again.

  • Page 17: Connector Type

    The warranty terms and conditions are subject to change without prior notice. e) Product specifications are subject to change without prior notice. f) Shell shall not be liable for technical or editorial errors or omissions contained herein. g) Visit www.skyintelligent.com/support for support and the latest product information.

  • Page 18: Fcc Statement

    FCC STATEMENT FCC SUPPLIER’S DECLARATION OF CONFORMITY SEV-32-01 Unique Identifier SEV-40-01 TianHeng Consulting, LLC Responsible Party 392 Andover Street, U.S. Contact Information Wilmington, MA 01887, USA Email support@skyintelligent.com FCC COMPLIANCE STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following...
  • Page 20 Shell ReCharge Portable Electric Vehicle Charger SEV-32-01 SEV-40-01 Shell ReCharge is part of the Shell Energy range of products. Shell and the Shell Pecten logo are trade marks of Shell. Used under license. V3.2...
