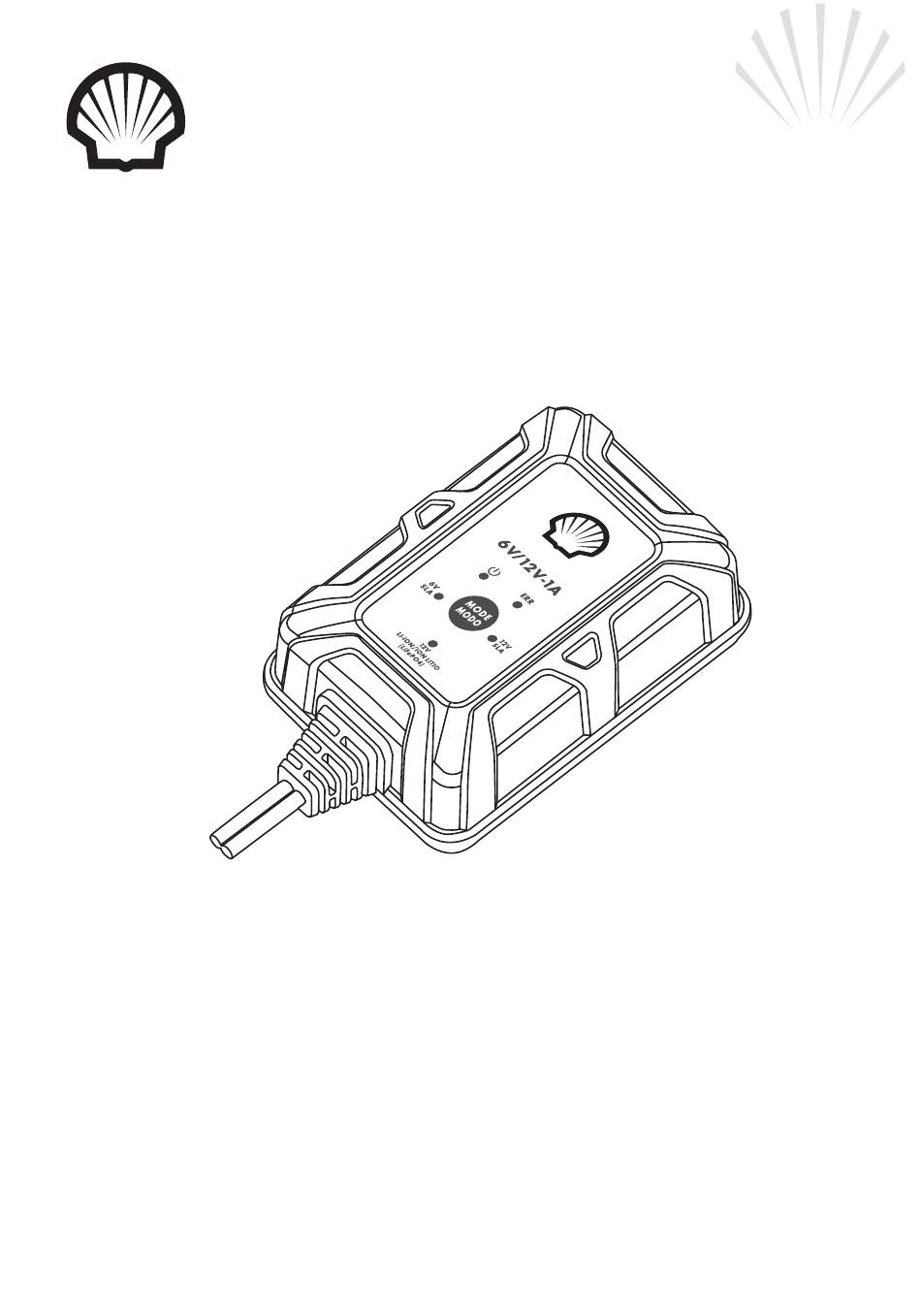

- Page 1 ITM. / ART. 1602693 Battery Charger & Maintainer SBC100 User Guide...
-
Page 2: For Your Safety
For Your Safety Thank you for choosing this Shell product. Please read the following instructions and keep them for future reference. This instruction manual contains important information on safe operation and use. To ensure long life and performance reliability, please operate and maintain as per the instructions on this sheet. -
Page 3: Package Includes
Package Includes Eyelet Terminal Connectors • 1 x Battery Charger • 1 x • 1 x User Guide Fused Battery Clamps • 1 x • 1 x Product Warranty Registration Product Features • Designed for charging 12V Li-ion batteries and 6V and 12V lead acid batteries including Wet, Gel, MF, VRLA and AGM batteries •... - Page 4 Before connecting to the battery 1. Check the battery chemistry and voltage before charging it with our product. The battery information can be found in the vehicle's owner's manual. 2. Turn off the power loads such as headlamps, air-conditioning and radio before charging the battery.
-
Page 5: Charging Steps
LED Indicator Light Table LED Indicator Indicator Light Explanation Power indicator. Plug in the charger and Red light on the indicator light will be on Possible causes: • The clamps are connected to the wrong Yellow light polarities flashes • The battery may be defective •... -
Page 6: Charging Time
Pulse The battery undergoes the desulfation process to break down the sulfate and to restore the battery capacity. Recondition This stage reactivates the battery for bulk charging after desulfation. Bulk Charging The battery is charged at a constant current of 1A. This stage will charge the battery to approximately 85% of full charge. -
Page 7: Troubleshooting Table
The battery is defective. Take the after fully charged battery to the dealer. Battery voltage rose too fast The battery has high SBC100 is designed for 2-20Ah capacity and it takes batteries. Use a charger with higher more than 72 hours to charging rate. charge... -
Page 8: Specifications
Specifications Input: 100 - 120V ~ 60Hz 20W Output: 12V Battery Type: Lead-acid including Wet, GEL, AGM, VRLA and MF, and Li-ion (LiFePO4) Battery Capacity: 2-20 Ah; maintain all sizes Battery Voltage: 6V & 12V DC Cable: 78 inches/198.1 cm Operating Temperature: -10°C to 45°C Storage Temperature: -20°C to 55°C Product Dimensions: 3.56 x 2.47 x 1.98 inches/90.42 x 62.0 x 50.29 mm... -
Page 9: Safety Instructions
• The product should not be charged while in contact with flammable material like textiles. • Use the accessories that are provided in the package. Shell is not responsible for any damage or injury when using accessories that are not provided by us. -
Page 10: Personal Precautions
• Do not put cables on or near moving parts such as hoods, doors, fans and belts. • Do not allow the clamps to touch each other. • Keep out of reach of children. Personal Precautions • Wear adequate eye protection and protective clothing when working near a car battery. - Page 11 radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: reorient or relocate the receiving antenna;...
- Page 12 APPLY TO THE GREATEST EXTENT ALLOWED BY SUCH LAWS. This Limited Warranty is made solely for the benefit of the original purchas- er of the Product from Shell or its approved reseller or distributor and is not assignable or transferable. To make a warranty claim, the purchaser must: (1) request and obtain a return merchandise authorization ("RMA")
- Page 13 (c) are/were modified without the express written consent of Shell; (d) have been disassembled, altered or repaired by anyone other than Shell; (e) had defects which were reported after the Warranty Period. THIS LIMITED WARRANTY DOES NOT COVER: (1) normal wear and tear;...
- Page 14 Battery Charger & Maintainer SBC100 SH SBC100 IM ENG D10057R2 Printed in China...
