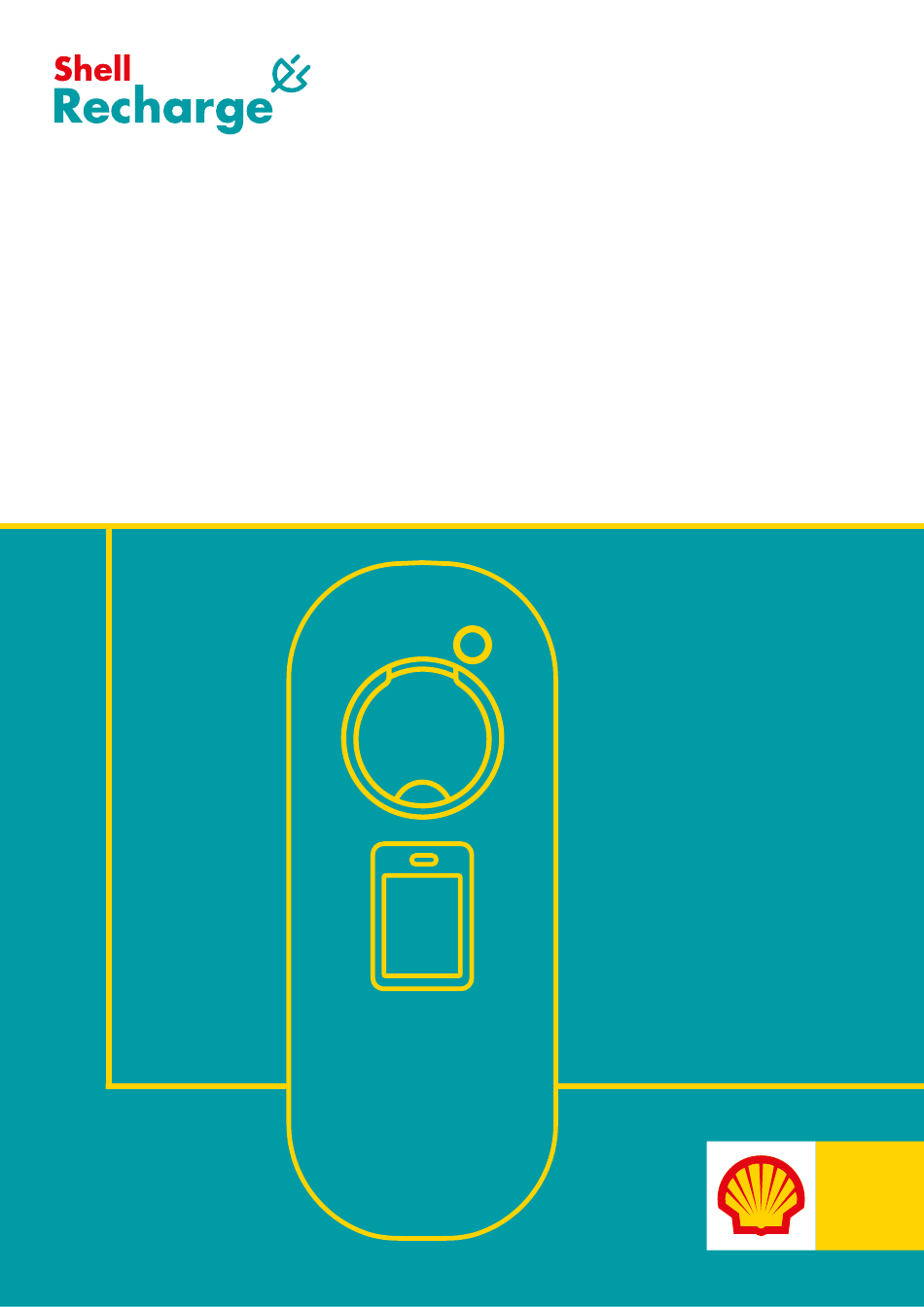

- Page 1 Owners manual Advanced View 2.3 Business Pro & Lite View 2.3 Visit shellrecharge.com/installer to find out more. Powered by Shell Recharge - driven by you.
-
Page 2: Table Of Contents
Table of content Preface Description of the product 1.1. Original instructions 3.1. Main parts 1.2. Copyright 3.2. Technical specifications 1.3. Disclaimer of liability Legal compliance 1.4. About this document 1.5. Other relevant documents 4.1. M&E certification 1.6. Used symbols in this document 4.2. Bundesnetzagentur database 1.7. -
Page 3: Preface
– including without limitation, any indirect, personal or consequential loss or damage – arising from or in connection with the use of this manual. Nor does Shell Recharge accept any liability for any such loss or damage arising out of your reliance on any information contained in this manual. The manufacturer reserves the right to modify this manual without notification beforehand. -
Page 4: Used Abbreviations / Terminology In This Document
1.7. Used abbreviations / terminology in this document eMSP eMobility Service Provider Electric vehicle EVSE Electric vehicle supply equipment Kilowatt Light-emitting diode M&E Mess & Eichrecht MessEG MessEV MID certified Measuring instruments directive certified. Required for energy meters that are used for billing purposes PTB certificate Baumusterprüfbescheinigung Type examination certificate RFID Radio-frequency identification SMED... -
Page 5: Residual Risks
2.3. Residual risks Despite the safe design and construction of the product and the prescribed protective measures, the product possesses residual risks. This manual provides safety messages to indicate these risks. The formatting and appearance of safety messages that are dedicated to a particular section or sentence is explained in chapter 1. Preface. -
Page 6: Description Of The Product

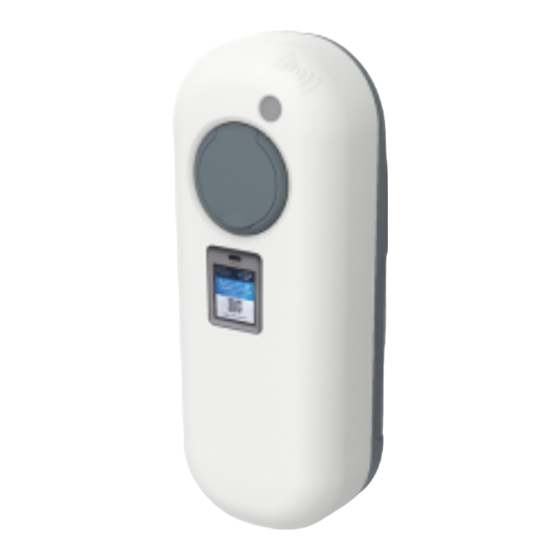

3. Description of the product 3.1. Main parts 1. RFID reader 4. Product details 2. LED status indicator 5. Type 2 EV plug socket and cover lid, or dummy 3. Identification label with serial number socket for tethered cable 6. SMED proximity sensor 7. SMED LCD user display 3.2. Technical specifications Certificates IEC 61851-1... -
Page 7: Legal Compliance
This can be achieved by informing Shell Recharge in case of a change. Our service partner will make sure that the charge points get sent to Shell Recharge and we will keep the data available to the end user. - Page 8 If requested by the local authorities, provide all stored data packets of the billing period on the dedicated ƒ storage device. The pagination of the measured values shall ensure the completeness of the memory contents, the signatures of the individual values and the qualified time stamps the authenticity and integrity of the measured values.
-
Page 9: Requirements On In-Field Checks
User instructions must also state: the nominal operating conditions for the electricity meters used. ƒ the software version of the add-on module that has been tested and certified as part of the type examination ƒ certification procedure. the indication that the accuracy stated on the rating plate of the charging device corresponds to the delivery ƒ... - Page 10 The accuracy of the measurement of the energy delivered via the charge point is essentially determined by the MID meter and the associated declaration of conformity from Shell Recharge. It is therefore sufficient to perform the accuracy test in a single operating point and perform an idle test for each charge point.
-
Page 11: Troubleshooting
Do not carry out any work in rainy conditions or when the humidity is above 95%. ƒ NOTICE If the issue is not solved after consulting this troubleshooter, please contact your local Shell Recharge Installation desk to get more help. Problem... - Page 12 For example: add an earthing rod directly connected to the charge point. If no result: ƒ Charge point may be broken, please contact your local Shell Recharge Installation desk. Owners manual – Business Pro & Lite View 2.3 - 095SROWN01...
- Page 13 If no result: ƒ Charge point may be broken, please contact your local Shell Recharge Installation desk. LED light is The charge point may be faulted 1 Reboot the charge point by turning it off by flipping the...
- Page 14 If the vehicle is tested okay by the car dealer and the data cables have been tested, but the light still remains green while you suspect that the charge point should be charging, please contact your local Shell Recharge Installation desk. LED light is flashing The charge point is rebooting or doing Wait approximately 10 minutes for the charge point to finish rebooting.
- Page 15 SMED user display This screen indicates there is a technical issue with this charge shows "Out of point, please contact Shell Recharge and do not use the order". charge point until this screen is gone and the initial start screen is shown again.
-
Page 16: Dynamic Power Management Troubleshooting
Check if there are damages in the DPM data cable. If damages are found, replace or fix the DPM data cable. ƒ The charge point may be faulted Please contact your local Shell Recharge Installation desk. PWR - Yellow LED is ƒ Dynamic Power Management module Measure the voltage on the + and - connectors of the DPM is powered, but voltage is below 6 V. - Page 17 . 2 Use a screwdriver to tighten the screws. ƒ The current sensor or the Dynamic Please contact your local Shell Recharge Installation desk. Power Management module is broken Owners manual – Business Pro & Lite View 2.3 - 095SROWN01...
-
Page 18: Maintenance
6. Maintenance 6.1. Cleaning and sanitizing It is advised to regularly clean the casing of the charge point using a simple damp cloth. Also, make sure no plants are growing on or against the charge point. Do not use high pressure water hose to clean the product. ƒ... - Page 19 UK English | Original instructions 095SROWN01 | 03/2022 Manufactured by: Shell EV Charging Solutions B.V. Rigakade 20, 1013 BC | Amsterdam, The Netherlands +31880109500 | www.shellrecharge.com...
