Summary of Contents for Shell SBC400
-
Page 6: Charging The Vehicle
Operating Instructions Charging the Vehicle Note: This product is designed for charging 12V Li-ion batteries and all types of 6V/12V lead-acid batteries like Wet, Gel, MF, VRLA, EFB and AGM. It is suitable for charging 2 to 120 Ah batteries and for maintaining batteries of any capacities. - Page 7 Operating Instructions 8. When charging is finished and the battery is confirmed to be in good condition, the display will show “FL”. The charger will go into the maintenance step and will trickle charge the battery as needed. The charger can be disconnected from the battery at any time. 9.
-
Page 9: Charging Steps
Operating Instructions Charging Steps The charger is programmed with eleven smart charging steps. It will go through some or all steps in order to extend your battery’s life and maximize its performance. Standby The charger is ready to charge. Qualification The charger will check the battery condition, such as voltage, state-of-charge and health, to determine whether the battery is good for charging. -
Page 11: Troubleshooting Table
Operating Instructions Troubleshooting Table Problem Possible Cause Solution Charger is not plugged into the Make sure the charger is plugged outlet properly. into the outlet securely. LCD display does not turn on Turn the switch on if the outlet is connected to a switch. -
Page 12: Specifications
Specifications Input: 100 - 120V ~ 60Hz 70W Output: 12V 4A 12V 1A 6V Battery Type: 6V & 12V Lead-acid batteries including Wet, GEL, AGM, VRLA and MF, and 12V Li-ion (LiFePO4) batteries. Battery Capacity: 2-120 Ah; maintain all sizes AC Cable Length: 70 in/180 cm DC Cable Length: 60 in/152.4 cm Operating Temperature: ‒10°C to 45°C/14°F-113°F... -
Page 14: Safety Instructions
Safety Instructions Do not disconnect the product from the outlet by pulling the cord. Do not put cables on or near moving parts such as hoods, doors, fans and belts. Do not allow the clamps to touch each other. ... - Page 15 Cautions This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Please note that changes or modifications of this product is not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
- Page 16 APPLY TO THE GREATEST EXTENT ALLOWED BY SUCH LAWS. This Limited Warranty is made solely for the benefit of the original purchas- er of the Product from Shell or its approved reseller or distributor and is not assignable or transferable. To make a warranty claim, the purchaser must: (1) request and obtain a return merchandise authorization ("RMA")
- Page 17 Warranty Period. THIS LIMITED WARRANTY DOES NOT COVER: (1) normal wear and tear; (2) cosmetic damage that does not affect functionality; or (3) Products where the Shell serial and/or lot number is missing, altered, or defaced. For any questions regarding your warranty or product contact Shell Support at: shellsupport@camelionna.com...

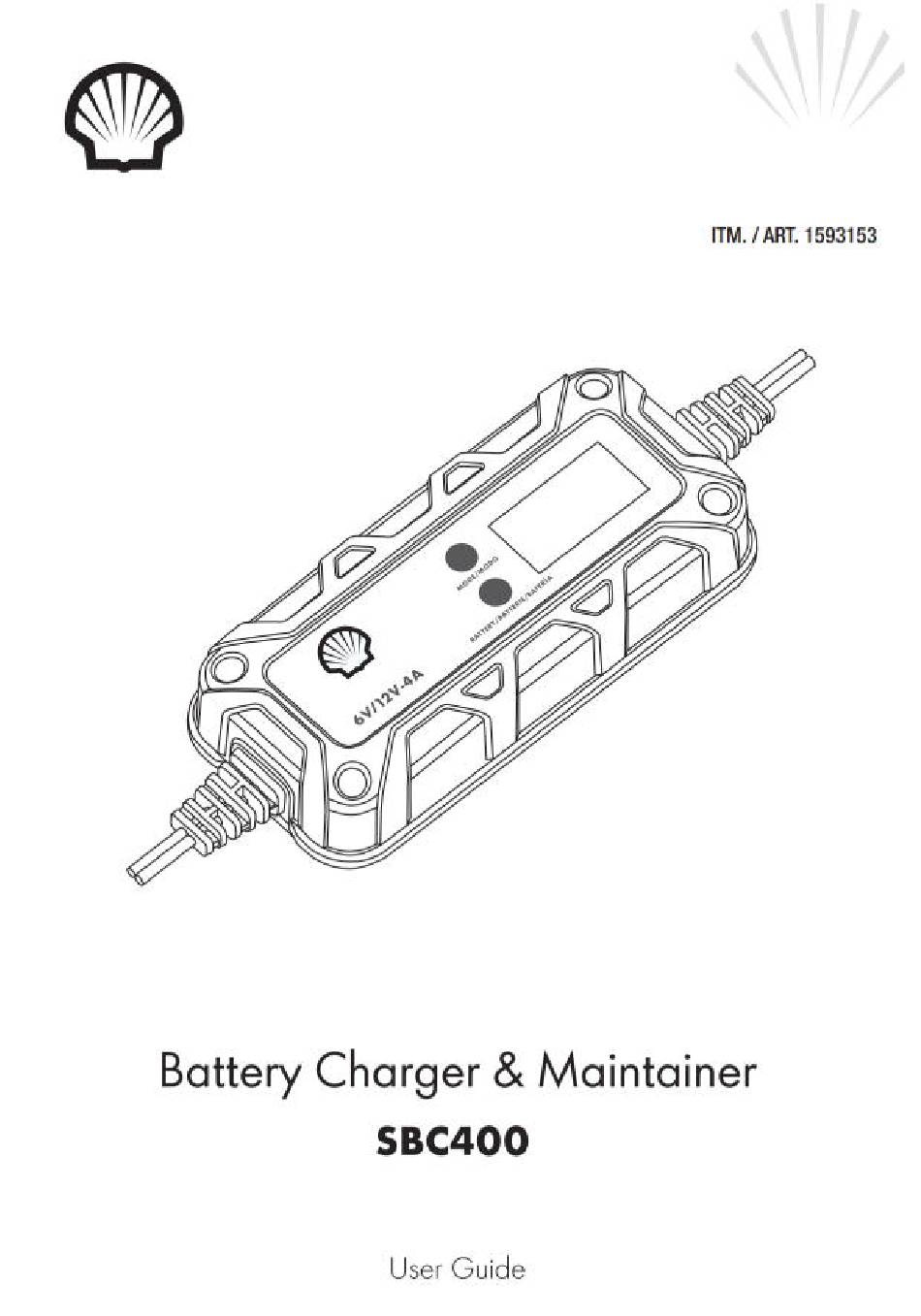

- Page 18 Battery Charger & Maintainer SBC400 SH SBC400 IM ENG D10099R6 Printed in China...
