4.5 CONNECTING STH STACKABLE HUBS

This section describes how to connect the Cabletron Systems STH
HubSTACK series of active, non-intelligent, stackable hubs to the
MicroMMAC-T. You can connect up to four STH hubs to the
MicroMMAC-T, as shown in
STH-24
TOKEN RING HUB
RESERVED
STH-24
TOKEN RING HUB
RESERVED
STH-24
TOKEN RING HUB
RESERVED
STH-24
TOKEN RING HUB
RESERVED
MicroMMAC-24T

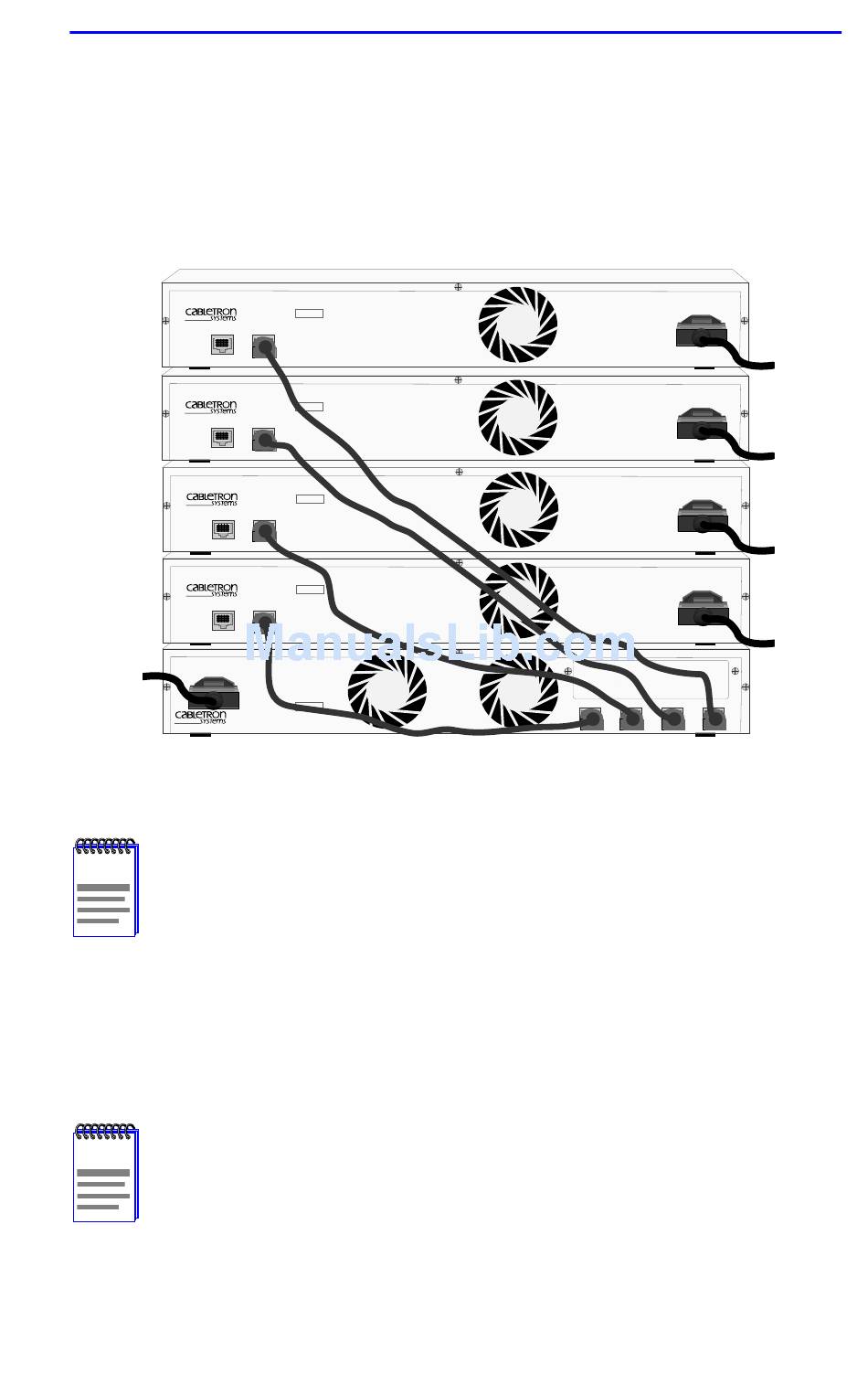

Figure 4-12 MicroMMAC-T/STH Stack Configuration
You must use Cabletron Systems HubSTACK Interconnect
NOTE
cables (order number 9380141) to connect the STH hubs to the
MicroMMAC-T STACK ports.
To connect an STH hub to the MicroMMAC-T:
Attach either end of the Interconnect cable securely to a STACK port
1.
on the MicroMMAC-T.
It is recommended (but not required) that you connect the STH
NOTE
hubs to the MicroMMAC-T in logical order, the first STH, the
one directly on top of the MicroMMAC-T, to the STACK 2 port,
the next STH in the stack to STACK 3, and so on for additional
STH hubs.
Figure
LANVIEW®
WITH
SN
STACK
LANVIEW®
WITH
SN
STACK
LANVIEW®
WITH
SN
STACK
LANVIEW®
WITH
SN
STACK
TOKEN RING HUB LANVIEW®
WITH
SN
LINE:
100-125V - 4.0A
200-250V - 2.0A
50/60Hz
4-12.
STACK2 STACK3
CABLING
STACK4 STACK5
4-17
