Figure 4-2 Utp Lobe Cabling Example - Cabletron Systems MicroMMAC-22T User Manual

The Cabletron Systems TRMF and TRMF-2 media filters are
NOTE
available for UTP-to-STP impedance matching. The Cabletron
Systems T2015 and T3015 DNI cards are equipped with ports
supporting both UTP and STP lobe links.
Token Ring
Station
TRMF
Token Ring
Network Interface Card
OFFICE
Using a MIC Connector
Shielded patch cables that adapt a shielded RJ45 cable to a Medium
Interface Connector (MIC) are available from Cabletron Systems. These
IBM Type 6 and 9 adapter/patch cables allow you to connect the
TRMF
STP-to-UTP
Media Filter

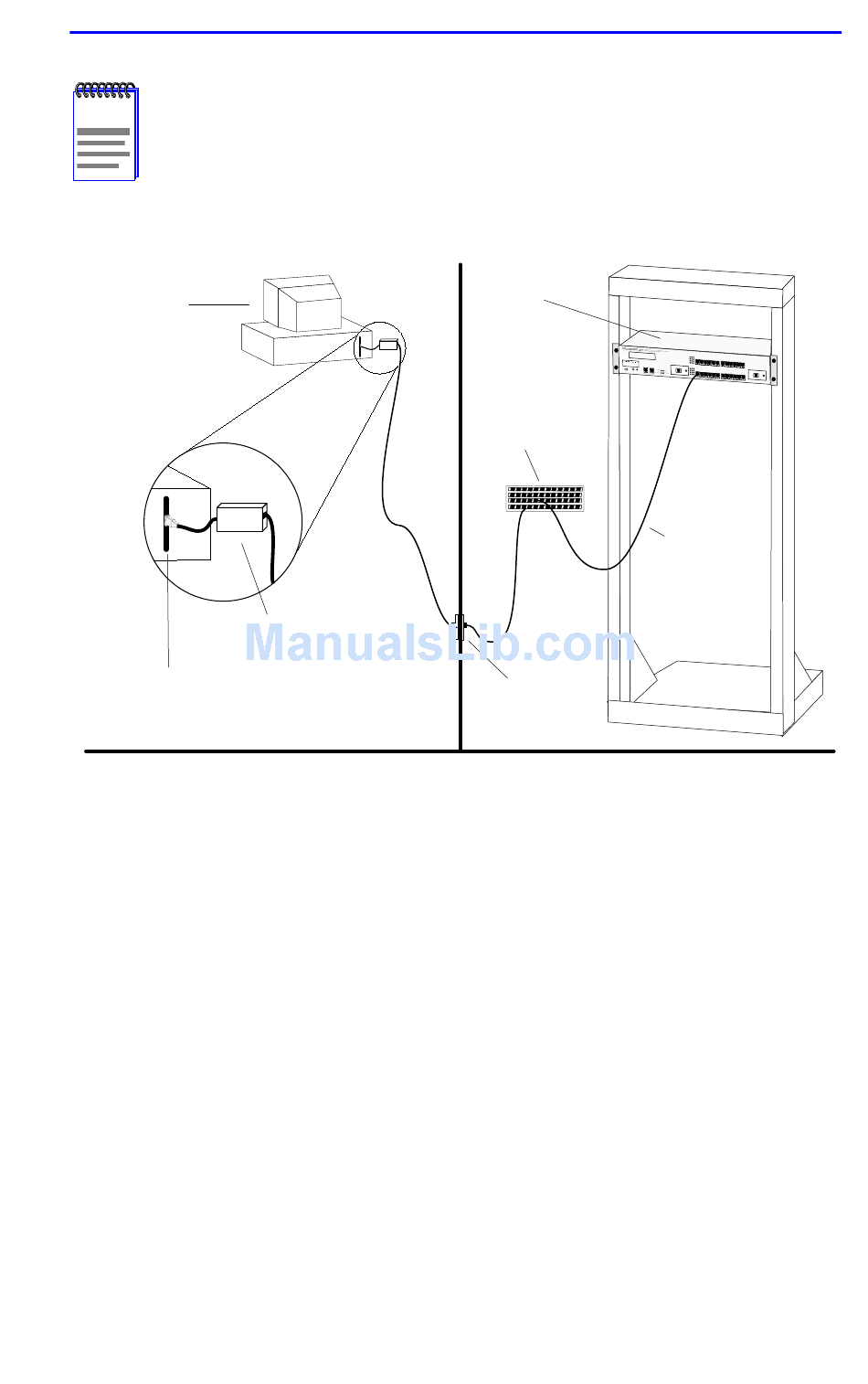

Figure 4-2 UTP Lobe Cabling Example

WALL
MicroMMAC-24T
Punchdown
Block
Wall
Jack
CABLING
UTP
Lobe Cable
WIRING CLOSET
4-7
