Connecting the Local Console Manager
to a Terminal
The Local Console Manager (LCM) is a command-line interface for
configuring, monitoring, and managing the ELS10-26 through the
out-of-band RS232C connection on the front panel.
To connect LCM:

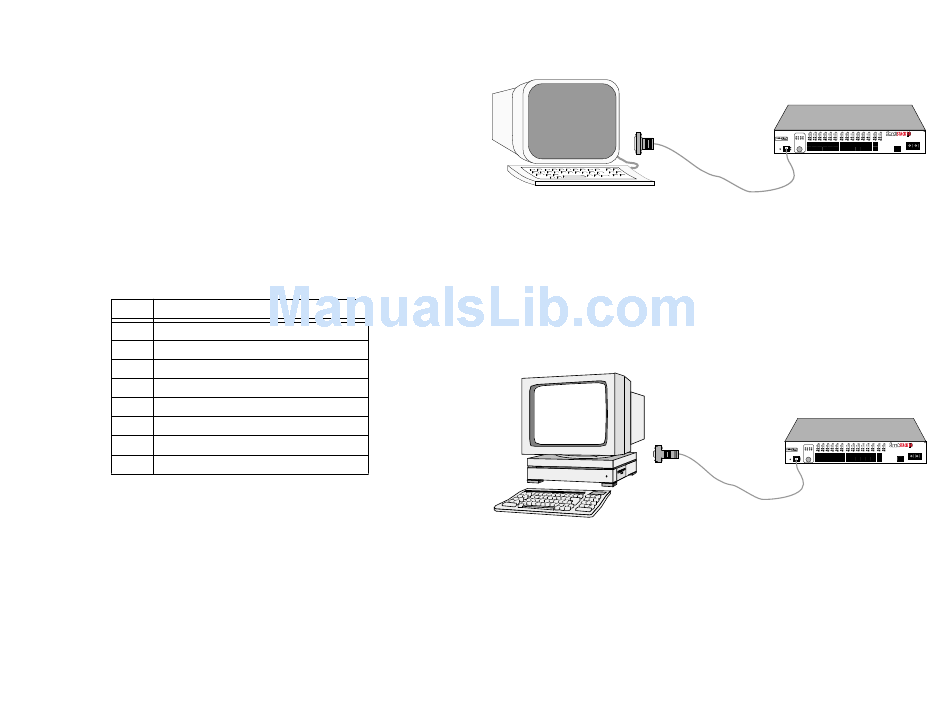

1. Connect your VT series terminal or terminal emulator to the
out-of-band management RS232C port on the front panel of
the ELS10-26 using the standard twisted pair cable with RJ45
connectors shipped with the unit. (Only three of the nine wires
are necessary: Receive Data, Transmit Data and ground.)
Pin Signal Name
1 Transmit Data (XMT)
2 Data Carrier Detect (DCD)
3 Data Set Ready (DSR)
4 Receive Data (RCV)
5 Signal Ground (GND)
6 Data Terminal Ready (DTR)
7 Request to Send (RTS)
8 Clear to Send (CTS)
2. Set the terminal to 9600 baud, 8N1:8 data bits, 1 stop bit, no
parity, and XON/XOFF.
3. Press the Enter key several times. If the ELS10-26 is
operational, LCM responds with the
LCM is now ready to use.
Refer to the ELS10-26 User's Guide for an overview of LCM and
the command syntax. LCM commands for the ELS10-26 are
provided in the User's Guide in chapters dealing with those topics.
A complete list of LCM commands appears on the following pages.
– 8 –
prompt.
ELS10-26 >
ELS10-26TX
PWR
CPU
RESET
COM
VT Terminal Connection
ELS10-26TX
RESET
PC Terminal Emulator Connection
PORT STATUS MODE
TX ACT FDX MON
1 3 5 7 9 11 13 15 17 19 21 23 25 26
RX COL 100 USR 2 4 6 8 10 12 14 16 18 20 22 24 MON 27
FEPIM
10BASE-T/
100BASE-TX
STATUS
27
2X 4X 6X 8X 10X 12X 14X 16X 18X 20X 22X 24X MONX 26X
PORT STATUS MODE
TX ACT FDX MON
1 3 5 7 9 11 13 15 17 19 21 23 25 26
RX COL 100 USR 2 4 6 8 10 12 14 16 18 20 22 24 MON 27
FEPIM
10BASE-T/
100BASE-TX
STATUS
PWR
CPU
27
COM 2X 4X 6X 8X 10X 12X 14X 16X 18X 20X 22X 24X MONX 26X
