Installing the Switch on a Flat Surface

When installing the switch on a flat surface, the installation of the rubber feet is
recommended to prevent the switch from sliding on a flat surface. Installing the rubber
feet is optional if you are installing the switch in a rack. To install the rubber feet, proceed
to "Installing the Rubber Feet" instructions below. For instructions to rack mount the
switch, proceed to "Rack Mounting the Switch" on page 3‐9.

Installing the Rubber Feet

To install the rubber feet, refer to Figure
1. Place the switch on its back on a sturdy flat surface to gain access to the bottom of the
chassis.
2. Remove the four rubber feet from their plastic bag in the shipping box.
3. Locate the four marked locations on the bottom four corners of the chassis.

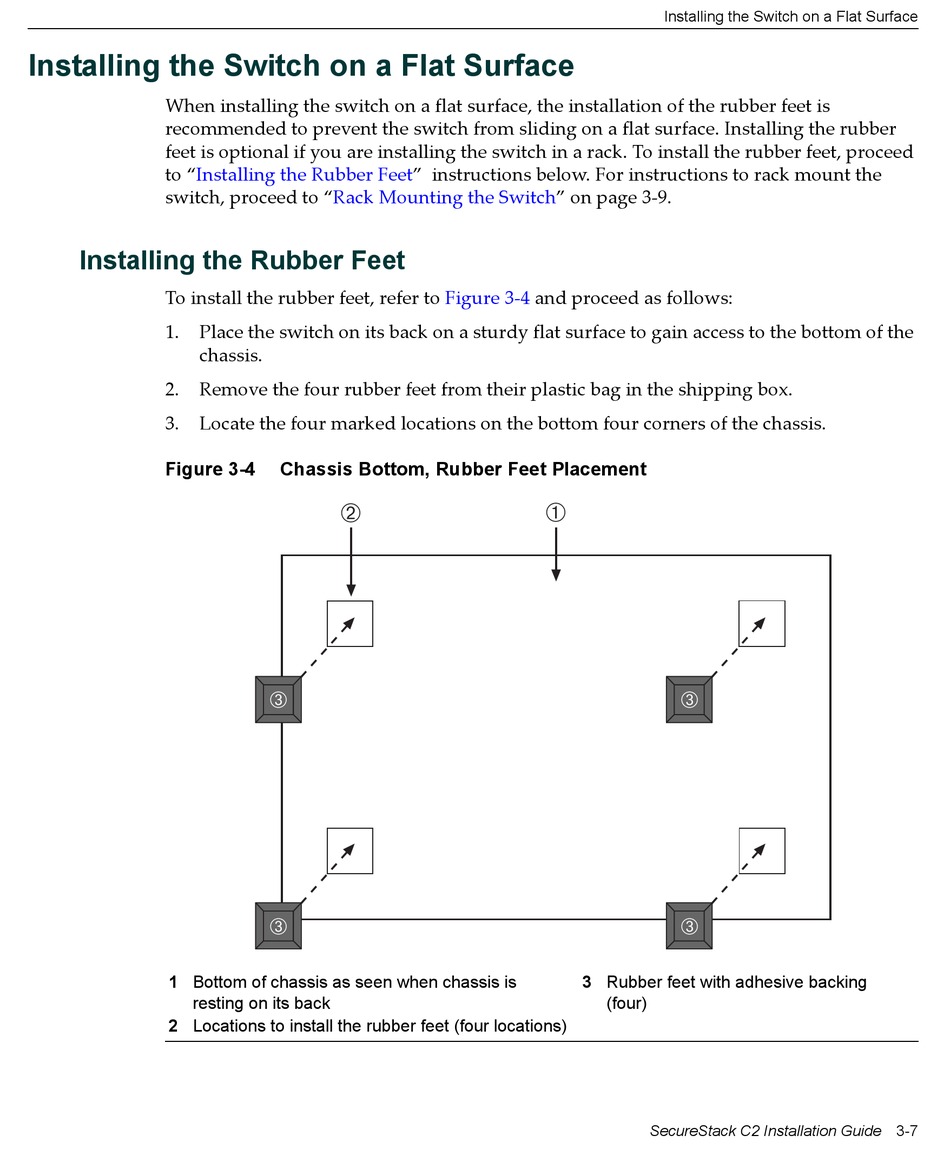

Figure 3-4
1 Bottom of chassis as seen when chassis is
resting on its back
2 Locations to install the rubber feet (four locations)

Chassis Bottom, Rubber Feet Placement

Á
Â
Â

Installing the Switch on a Flat Surface

3‐4 and proceed as follows:
À
Â
Â
3 Rubber feet with adhesive backing
(four)
