Reference Manual
(Hardware)
Multi-Function Module

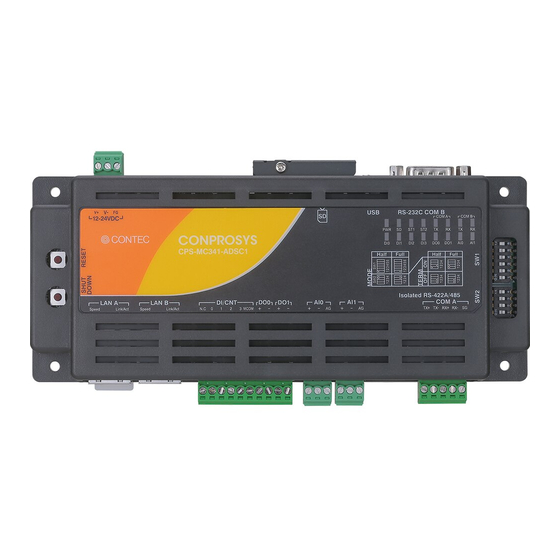

CPS-MC341-ADSC1-111
Multi-Function Module RS422/485 Model
CPS-MC341-ADSC2-111
M2M Gateway for PLC Multi-Function Module
CPS-MG341-ADSC1-111
CONTENTS
Introduction .................................................................. 4
Safety Precautions .................................................... 13
Product Nomenclature and Function ............... 21
Setup ............................................................................. 38
Installation ................................................................... 47
Appendix ...................................................................... 71
Optional Products .................................................... 81
Customer Support and Inquiry ............................ 83
Index .............................................................................. 85
