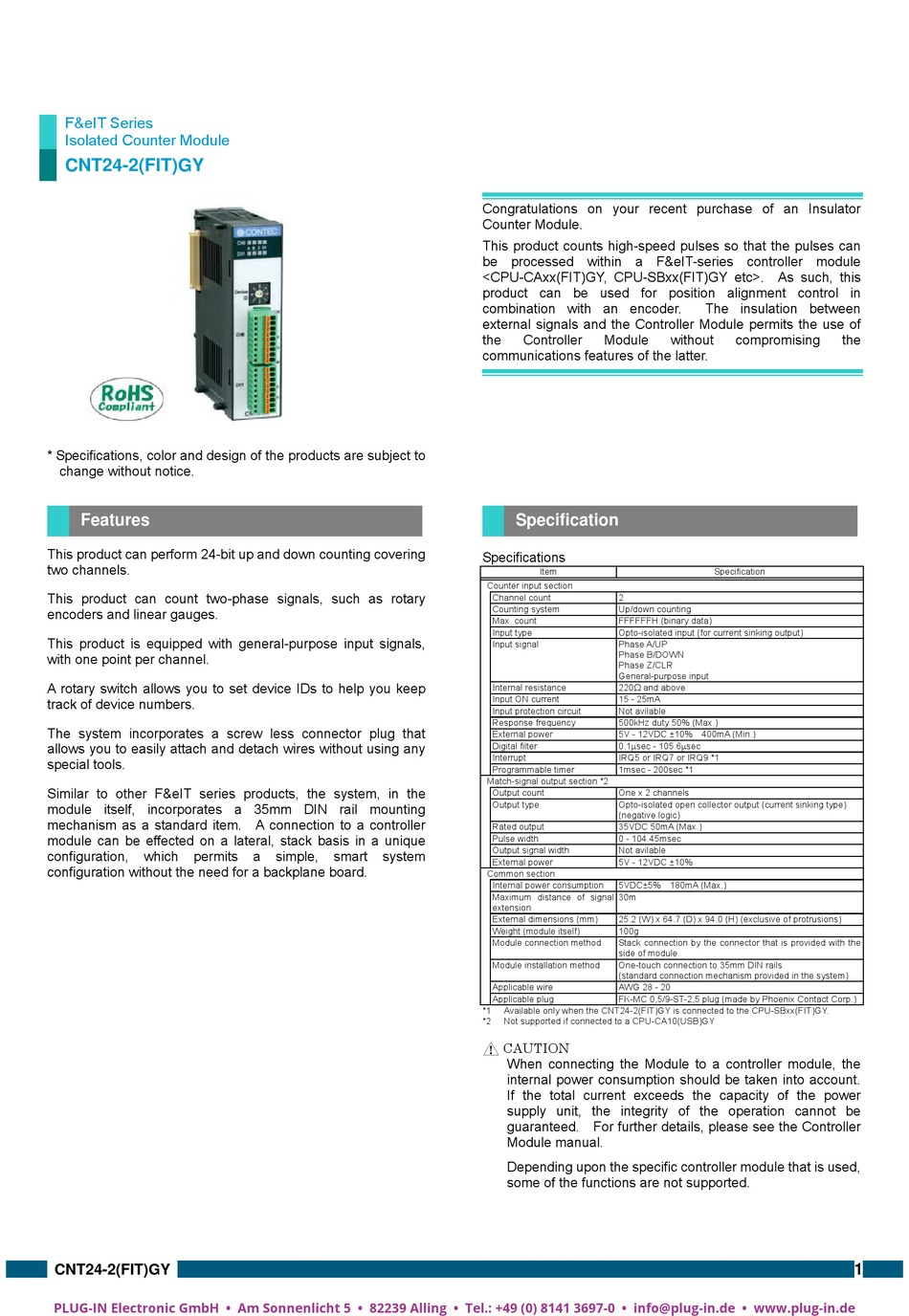

Features
This product can perform 24-bit up and down counting covering
two channels.
This product can count two-phase signals, such as rotary
encoders and linear gauges.
This product is equipped with general-purpose input signals,
with one point per channel.
A rotary switch allows you to set device IDs to help you keep
track of device numbers.
The system incorporates a screw less connector plug that
allows you to easily attach and detach wires without using any
special tools.
Similar to other F&eIT series products, the system, in the
module itself, incorporates a 35mm DIN rail mounting
mechanism as a standard item. A connection to a controller
module can be effected on a lateral, stack basis in a unique
configuration,
which
permits
configuration without the need for a backplane board.
CNT24-2(FIT)GY
PLUG-IN Electronic GmbH • Am Sonnenlicht 5 • 82239 Alling • Tel.: +49 (0) 8141 3697-0 • info@plug-in.de • www.plug-in.de
a
simple,
smart
system
Congratulations on your recent purchase of an Insulator
Counter Module.
This product counts high-speed pulses so that the pulses can
be processed within a F&eIT-series controller module
<CPU-CAxx(FIT)GY, CPU-SBxx(FIT)GY etc>. As such, this
product can be used for position alignment control in
combination with an encoder.
external signals and the Controller Module permits the use of
the
Controller
Module
communications features of the latter.
Specification
Specifications
Item
Counter input section
Channel count
2
Counting system
Up/down counting
Max. count
FFFFFFH (binary data)
Input type
Opto-isolated input (for current sinking output)
Input signal
Phase A/UP
Phase B/DOWN
Phase Z/CLR
General-purpose input
220  and above
Internal resistance
Input ON current
15 - 25mA
Input protection circuit
Not avilable
Response frequency
500kHz duty 50% (Max.)
External power
5V - 12VDC ±10% 400mA (Min.)
0.1  sec - 105.6sec
Digital filter
Interrupt
IRQ5 or IRQ7 or IRQ9 *1
Programmable timer
1msec - 200sec *1
Match-signal output section *2
Output count
One x 2 channels
Output type
Opto-isolated open collector output (current sinking type)
(negative logic)
Rated output
35VDC 50mA (Max.)
Pulse width
0 - 104.45msec
Output signal width
Not avilable
External power
5V - 12VDC ±10%
Common section
Internal power consumption
5VDC±5% 180mA (Max.)
Maximum distance of signal
30m
extension
External dimensions (mm)
25.2 (W) x 64.7 (D) x 94.0 (H) (exclusive of protrusions)
Weight (module itself)
100g
Module connection method
Stack connection by the connector that is provided with the
side of module
Module installation method
One-touch connection to 35mm DIN rails
(standard connection mechanism provided in the system)
Applicable wire
AWG 28 - 20
Applicable plug
FK-MC 0,5/9-ST-2,5 plug (made by Phoenix Contact Corp.)
*1
Available only when the CNT24-2(FIT)GY is connected to the CPU-SBxx(FIT)GY.
*2
Not supported if connected to a CPU-CA10(USB)GY
CAUTION
When connecting the Module to a controller module, the
internal power consumption should be taken into account.
If the total current exceeds the capacity of the power
supply unit, the integrity of the operation cannot be
guaranteed. For further details, please see the Controller
Module manual.
Depending upon the specific controller module that is used,
some of the functions are not supported.
Ver.1.01
The insulation between
