Reference Manual
(Hardware)
Thermocouple Module
CPSN-SSI-4C
CONTENTS
Introduction .................................................................. 3
Safety Precautions ...................................................... 9
Product Nomenclature and Function ............... 15
Installation ................................................................... 19
Appendix ...................................................................... 29
Optional Products .................................................... 34
Customer Support and Inquiry ............................ 36
Advertisement
Table of Contents
Related Manuals for Contec CPSN-SSI-4C
Summary of Contents for Contec CPSN-SSI-4C
- Page 1 Reference Manual (Hardware) Thermocouple Module CPSN-SSI-4C CONTENTS Introduction ..............3 Safety Precautions ............9 Product Nomenclature and Function ....15 Installation ..............19 Appendix ..............29 Optional Products ............ 34 Customer Support and Inquiry ......36...
-
Page 2: Table Of Contents
Table of Contents Introduction ............... 3 1. Related Manuals ..............................4 2. Check the Firmware Version ..........................5 3. About the Product ..............................6 4. Features ..................................7 5. Product Configuration List ..........................8 Safety Precautions ............. 9 1. Safety Information ............................... 10 2. Handling Precautions ............................11 1. -
Page 3: Introduction
Introduction This section provides necessary information of the product such as the outline, bundled items and manuals before actual use. — 3 —... -
Page 4: Related Manuals
— — Introduction CPSN-SSI-4C Reference Manual (Hardware) 1. Related Manuals The manuals related to the product are listed below. Read them as necessary along with this document. Must Read the Following Manuals. Name Purpose Contents How to get Product Guide... -
Page 5: Check The Firmware Version
— — Introduction CPSN-SSI-4C Reference Manual (Hardware) 2. Check the Firmware Version Before you start using the product, visit our website to check the firmware version of the CPU unit and update to the latest one if necessary. Updating firmware to the latest version will resolve troubles and stabilize the operation. -
Page 6: About The Product

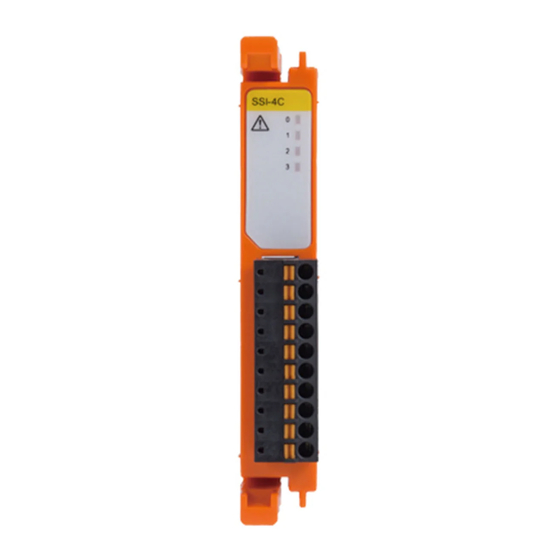

— — Introduction CPSN-SSI-4C Reference Manual (Hardware) 3. About the Product This product is an expansion I/O module that adds a thermocouple interface to the CPU unit of the CONPROSYS nano series. Four channels of differential inputs are provided for one module. -
Page 7: Features
— — Introduction CPSN-SSI-4C Reference Manual (Hardware) 4. Features Compatible with various types of thermocouple inputs This product is compatible with a wide range of thermocouple input types such as J(IEC60584-1), K(IEC60584-1), E(IEC60584-1), N(IEC60584-1), R(IEC60584-1), S(IEC60584-1), and T(IEC60584-1). Cold junction compensation function within As cold junction compensation is integrated in the product, there is no need to install a temperature sensor for cold junction compensation externally, and temperature can be measured simply by connecting a thermocouple. -
Page 8: Product Configuration List
— — Introduction CPSN-SSI-4C Reference Manual (Hardware) 5. Product Configuration List The product consists of the items listed below. Check, with the following list, that your package is complete. If you discover damaged or missing items, contact your retailer. Product…1 10-pin Connector Product Guide &... -
Page 9: Safety Precautions
Safety Precautions Understand the following definitions and precautions to use the product safely. Never fail to read them before using the product. — 9 —... -
Page 10: Safety Information
— — Safety Precautions CPSN-SSI-4C Reference Manual (Hardware) 1. Safety Information This document provides safety information using the following symbols to prevent accidents resulting in injury or death and the destruction of equipment and resources. Understand the meanings of these labels to operate the equipment safely. -
Page 11: Handling Precautions
— — Safety Precautions CPSN-SSI-4C Reference Manual (Hardware) 2. Handling Precautions DANGER Do not use the product in locations exposed to a flammable or corrosive gas. It may cause explosion, fire, electrical shock, or malfunction. Do not allow the device to come into contact with foreign substances (metal particles, ... - Page 12 When removing connectors or cables, always unplug the power cables of the CPU unit first, and confirm the LEDs are turned off. Do not modify the product. CONTEC will bear no responsibility for any problems, etc., resulting from modifying the product.
- Page 13 When disposing of the product, follow the disposal procedures stipulated under the relevant laws and municipal ordinances. Regardless of the foregoing statements, CONTEC is not liable for any damages whatsoever (Including damages for loss of business profits) arising out of the use or inability to use this CONTEC product or the information contained herein.
-
Page 14: Fcc Part15 Subpart B Class A Notice
— — Safety Precautions CPSN-SSI-4C Reference Manual (Hardware) 1. FCC PART15 Subpart B Class A Notice NOTE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 15: Product Nomenclature And Function
Product Nomenclature and Function This section describes product component names and their functions, and pin assignment of each connector. — 15 —... -
Page 16: Nomenclature Of Product Components
— — Product Nomenclature and Function CPSN-SSI-4C Reference Manual (Hardware) 1. Nomenclature of Product Components Component names of the product are shown in the figure below. Name Function LED Indicator This indicates status of the product. Interface Connector Connector for thermocouple measurement. -
Page 17: Description Of Product Components
— — Product Nomenclature and Function CPSN-SSI-4C Reference Manual (Hardware) 2. Description of Product Components Components such as connectors, switches are described. 1. LED Indicator Status of the product is indicated by ON/OFF and flashing of LED. The meaning of each LED is described below. -
Page 18: Interface Connector
— — Product Nomenclature and Function CPSN-SSI-4C Reference Manual (Hardware) 2. Interface Connector Four channels of thermocouple inputs are provided. Use the 10-pin connector included in the package. Connector type: DEGSON 15EDGKC-3.81-10P-13 (or equivalent) Pin Assignment Pin No. Signal Name... -
Page 19: Installation
Installation This section describes how to mount the product on a DIN rail or the wall, and to connect to an external device with a cable. — 19 —... -
Page 20: Install The Product
— — Installation CPSN-SSI-4C Reference Manual (Hardware) 1. Install the Product 1. Installation Conditions Installation Orientation You can position the CPU unit in the orientation shown below. Other orientations could cause problems such as malfunction due to inadequate heat dissipation. - Page 21 — — Installation CPSN-SSI-4C Reference Manual (Hardware) Horizontal installation Make sure to gain proper space between the product and devices that generate heat or exhaust air so that the ambient temperature stays in the range specified in the environment requirement.
- Page 22 — — Installation CPSN-SSI-4C Reference Manual (Hardware) CAUTION The product is an open-type device (a device designed to be housed inside other equipment) and must always be mounted inside a mechanical enclosure having enough strength. Note that although the ambient temperature is within the specified range, an operational ...
-
Page 23: Installation And Removal Of I/O Module And Blank Panels
— — Installation CPSN-SSI-4C Reference Manual (Hardware) 2. Installation and Removal of I/O Module and Blank Panels CAUTION Always confirm the PWR-LED of the CPU unit is turned off before installing or removing the module. Installation procedure Paying attention to the horizontal orientation of the I/O module, insert the resin groove into the rail of the CPU unit that has been installed on a DIN rail or that has been screwed into place, and then push the I/O module in until it clicks. - Page 24 — — Installation CPSN-SSI-4C Reference Manual (Hardware) Removal procedure Press in the hooks at the top and bottom of the I/O module, and then pull it toward you and out of the CPU unit that has been installed on a DIN rail or screwed into place.
-
Page 25: Connecting To An External Device
— — Installation CPSN-SSI-4C Reference Manual (Hardware) 2. Connecting to an External Device When connecting the product to an external device, use the supplied connector. When wiring the connector, strip off 8 mm ± 0.5 mm of the wires covering, and then insert this stripped part into the connectors opening. -
Page 26: Cable Connection
— — Installation CPSN-SSI-4C Reference Manual (Hardware) 3. Cable Connection 1. Thermocouple Input Thermocouple Input Cable Use the thermocouple input cable described below. Cable Thermocouple and compensating wire. Applicable wire AWG28 - 16 Cable Length Vary according to the environment where the product is used. - Page 27 — — Installation CPSN-SSI-4C Reference Manual (Hardware) Measuring temperature limit Measuring temperature limit Thermocouples type Lower-limit temperature Upper-limit temperature -265°C 1372°C -210°C 1200°C -265°C 1000°C -265°C 1300°C -265°C 400°C -50°C 1768°C -50°C 1768°C CAUTION When adjusting the temperature with such as an air conditioner, take measures to prevent the ...
- Page 28 — — Installation CPSN-SSI-4C Reference Manual (Hardware) Example of thermocouple connection (Shielded) CAUTION When using the product in an overly noisy environment, use a shielded thermocouple and earth ground the shield. — 28 —...
-
Page 29: Appendix
Appendix This section lists the specifications and the physical dimensions of the product, and the details of model name. — 29 —... -
Page 30: Specifications
— — Appendix CPSN-SSI-4C Reference Manual (Hardware) 1. Specifications Function Specifications Item CPSN-SSI-4C Input type Differential input Input channel Resolution 24-bit (1/1024 °C) 251ms (Measure four thermocouples and one cold junction sensor per Conversion speed*1 channel) Buffer memory The latest data only... - Page 31 — — Appendix CPSN-SSI-4C Reference Manual (Hardware) Installation Environment Requirements Item Description Operating ambient temperature*1 -20 - +60°C (Wall installation) -20°C to +55°C with a vertical installation at an angle of 90° to the left/right or with a plane installation...
-
Page 32: Physical Dimensions
— — Appendix CPSN-SSI-4C Reference Manual (Hardware) 2. Physical Dimensions Physical dimensions of CPSN-SSI-4C Physical dimensions of CPSN-SSI-4C (with connector attached) — 32 —... -
Page 33: The Details Of Model Name
— — Appendix CPSN-SSI-4C Reference Manual (Hardware) 3. The Details of Model Name Details of the model name are described below. Item Description Interface Sensor Input Channel 4 Channels Function Thermocouple — 33 —... -
Page 34: Optional Products
Optional Products This section lists optional items that can be used along with the product. — 34 —... -
Page 35: Optional Products
Fitting power supply 30W supply (Input: 100 - 240VAC, Output: 24VDC 1.3 A) CPS-PWD-90AW24-01 Fitting power supply 90W (Input: 100 - 240VAC, Output: 24VDC 3.8 A) Visit the Contec website for the latest optional products. https://www.contec.com/ Website — 35 —... -
Page 36: Customer Support And Inquiry
Customer Support and Inquiry CONTEC provides the following support services for you to use CONTEC products more efficiently and comfortably. — 36 —... -
Page 37: Services
— — Customer Support and Inquiry CPSN-SSI-4C Reference Manual (Hardware) 1. Services CONTEC offers the useful information including product manuals that can be downloaded through the CONTEC website. Download https://www.contec.com/download/ You can download updated driver software, firmware, and differential manuals in several languages. Membership registration (myCONTEC) is required to use the services. - Page 38 — — Revision History CPSN-SSI-4C Reference Manual (Hardware) Revision History MONTH YEAR Summary of Changes July 2019 The First Edition — 38 —...
- Page 39 3-9-31, Himesato, Nishiyodogawa-ku, Osaka 555-0025, Japan https://www.contec.com/ No part of this document may be copied or reproduced in any form by any means without prior written consent of CONTEC CO., LTD. CPSN-SSI-4C Reference Manual (Hardware) NA06891 (LYXH323) 12132019_rev3 [07262019] December 2019 Edition...
