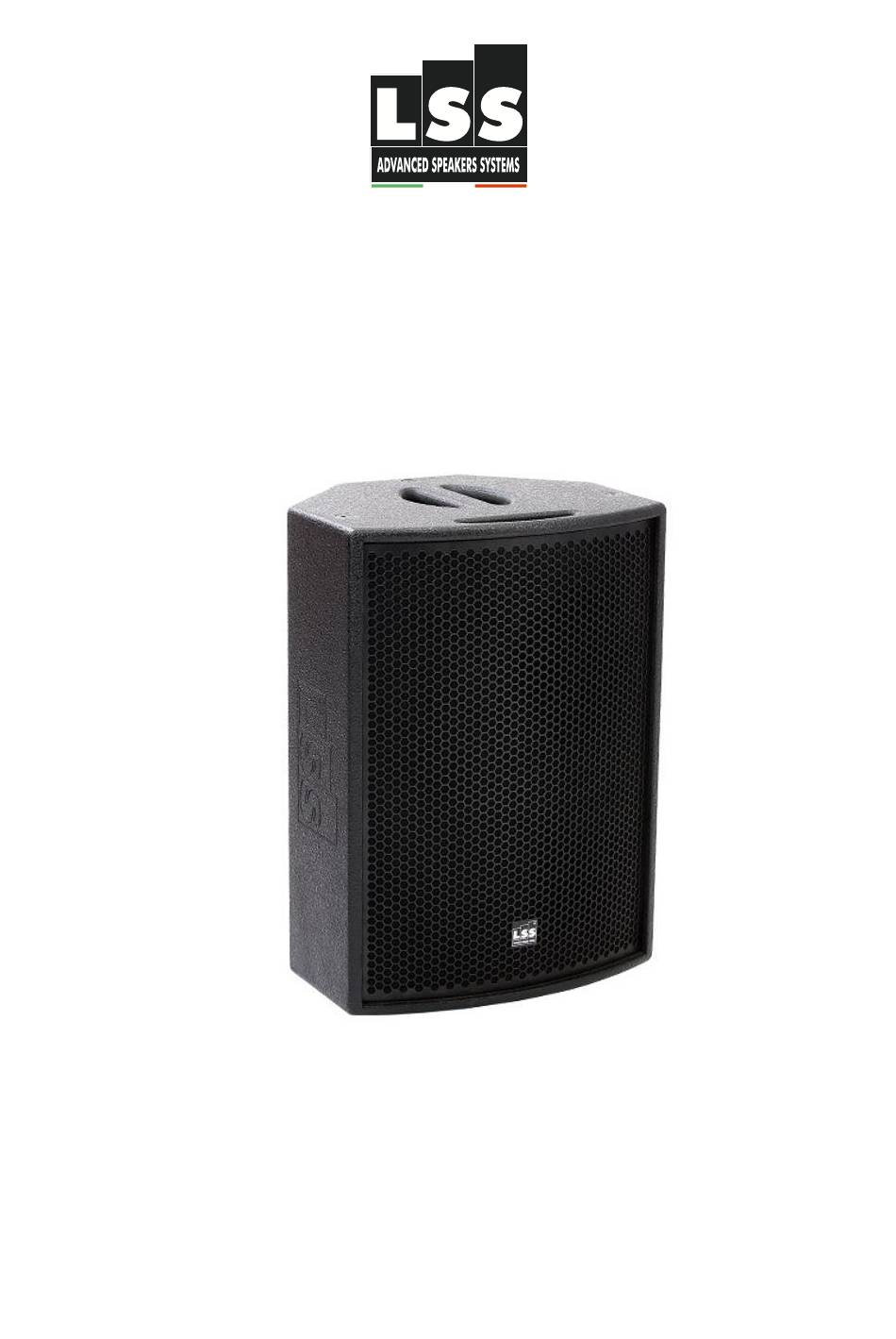

- Page 1 PROFESSIONAL AUDIO SYSTEM DG300A OPERATING MANUAL Ver. DG300A-EN-1.1 LSS Advanced Speaker Systems Via On. Longo 53-89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it...
- Page 2 Every precaution has been taken in the preparation of this manual. Nevertheless, LSS assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.
-
Page 3: Table Of Contents
SUMMARY INTRODUCTION ............................4 SAFETY AND WARNING ..........................5 APPLICATION ..............................6 PHYSICAL DESCRIPTION ........................... 6 TECHNICAL SPECIFICATIONS ........................7 INSTALLATION AND WIRING ........................8 WEEE DIRECTIVE ............................10 DIMENSIONS ..............................11 NOTES ................................12 Operating Manual ver. DG300A-EN-1.1 |3... -
Page 4: Introduction
LSS produces professional audio products – the result of exceptional engineering and meticulous craftsmanship. This manual is intended for use with LSS loudspeaker. This includes: safety precautions; installation, set-up and operating instruction. Please read this manual plus any accompanying manual and follow all relevant precautions and instructions. -
Page 5: Safety And Warning
LSS loudspeakers can produce sound levels capable of causing permanent hearing damage from prolonged exposure. The higher the sound level, the less exposure needed to cause such damage CAUTION: This product is energized as long as it is connected to the AC. -
Page 6: Application
Rig it in clusters on a live venue, mount it on speaker stands or even as a stage monitor. The possibilities are numerous: integrated handles, lightweight design and sturdy mechanical protection features allow to handle DG300A with easy, whether you are a touring company, installer or mobile PHYSICAL DESCRIPTION SIDE... -
Page 7: Technical Specifications
Texture polyurethanic black Finish paint Suspension 6 Point Mounting Suspension MECHANYCAL Powder coated perforated steel Grille with anti-dust foam XLR IN & OUT, Connectors AC Power: 240V, VDE Connetor Fly Clip with Ring, Speaker Soft Optional Accessories Operating Manual ver. DG300A-EN-1.1 |7... -
Page 8: Installation And Wiring
DG300A_______________________________________________________________________________ INSTALLATION AND WIRING DG300A speaker can be mounted to the wall, on a pole or suspended through the suspension points. For installation on a pole, use the pole mount plate in the bottom of the case. For suspended installation, there are six suspension points in the case: three in the top, three in the bottom. - Page 9 P1 – preset 1 (green): indicates the factory presets SMOOTH. P2 – preset 2 (green): indicates the factory presets VOCAL. P3 – preset 3 (green): indicates the factory presets LOUD. P4 – preset 4 (green): indicates the factory presets FLAT. Operating Manual ver. DG300A-EN-1.1 |9...
-
Page 10: Weee Directive
Warning: If the product is used for business purposes, the following steps to delete it: contact your LSS dealer for information about the product recall. Might be charged for the costs of collection and recycling. Small products (and amounts) might be taken back by your local collection facilities. -
Page 11: Dimensions
______________________________________________________________________________ DIMENSIONS SIDE FRONT REAR 35cm 43cm 18cm BOTTOM Operating Manual ver. DG300A-EN-1.1 |11... -
Page 12: Notes
DG300A_______________________________________________________________________________ NOTES 12| Operating Manual ver. DG300A-EN-1.1... - Page 13 ______________________________________________________________________________ CONTACT INFORMATION: LSS Advanced Speaker Systems Via On. Longo 53 89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it Operating Manual ver. DG300A-EN-1.1 |13...
