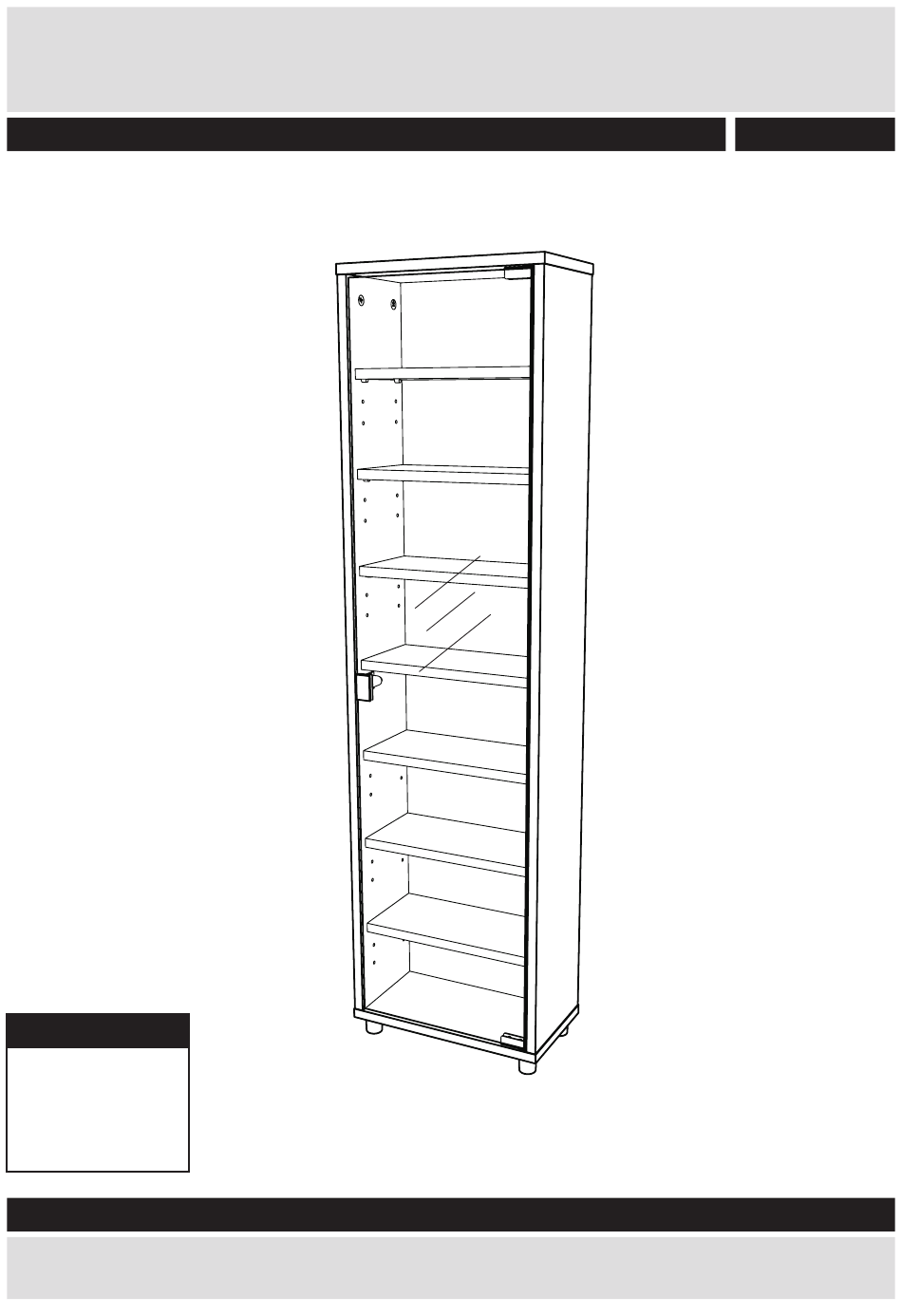

Slimline Storage Unit With
Frosted Glass
Assembly Instructions -
Dimensions
Width - 33cm
Depth - 18cm
Height - 123cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline
Argos = 0845 6400800
Please keep for future reference
228/6901
issue 2 - 5/03/14

Advertisement

loading
Need help?

Need help?

Do you have a question about the 0845 6400800 and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos 0845 6400800

  • Page 1 Width - 33cm Depth - 18cm Height - 123cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline Argos = 0845 6400800 issue 2 - 5/03/14...
  • Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • •During assembly do not stand Check you have all the • To reduce components and tools listed on or put weight on the product, this the likelihood of the following pages .
  • Page 3 Components - Panels If you have damaged or missing components,call the Customer Helpline: Argos =0845 6400800 Please check you have all the panels listed below Back x 1 (30.6 x 117.7cm) Left side x 1 Right side x 1 (17.9 x 116.9cm) (17.9 x 116.9cm)
  • Page 4 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. 15mm Screw x 4 45mm Screw x 4 26mm Screw x 4 Wall strap x 1 12mm Screw x 1...
  • Page 5 Assembly Instructions Step 1 Fitting cam bolt Screw Cam bolt into Top Note: Insert Cam bolt as far as shown. Do not over tighten. Screw Cam bolt into Left side & Right side Note: Insert Cam bolt as far as shown. Do not over tighten.
  • Page 6 Assembly Instructions Step 2 Attaching panels Two people are needed here. Position Left side Right side onto Middle shelf Insert Cam lock into Middle shelf where shown. Use a screwdriver to turn Cam lock clockwise to lock. Step 3 Attaching panels Two people are needed here.
  • Page 7 Assembly Instructions Step 4 Attaching panels Attach Bottom onto the unit using 45mm Screws Step 5 Attaching feets Attach feets onto the unit using 26mm Screws...
  • Page 8 Assembly Instructions Step 6 Attaching Metal glass hinge Two people are needed here. Insert Glass hinge plastic ring and Metal glass hinge-right into Bottom Insert Glass hinge plastic ring and Metal glass hinge-left into Top Step 7 Sliding glass door Two people are needed here.
  • Page 9 Assembly Instructions Step 8 Sliding panels Insert Shelf pin into the unit. Slide Shelf onto Shelf pin...
  • Page 10 Before drilling, check wall for hidden pipes and cables. Reposition storage unit and fix wall strap using screw Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline Argos = 0845 6400800...
  • Page 11: A Guide To - Wall Mounting & Fixings

    A Guide to - Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.
