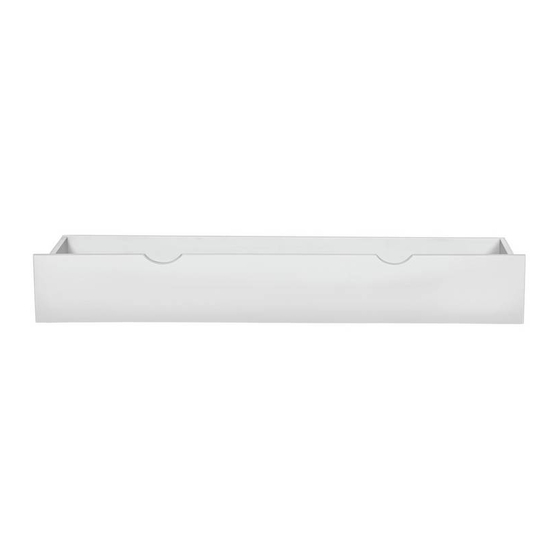

Aspley - Underbed Drawer
Assembly Instructions
Dimensions
Width - 52.9cm
Depth - 144.0cm
Height - 21.5cm
Important –
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, c a l l t h e
- Please keep for future reference
Customer Helpline: 03456 400 800
459/1261
457/9898
Issue 1 - 23/06/20
Advertisement
Related Manuals for Argos Aspley 459/1261
Summary of Contents for Argos Aspley 459/1261
- Page 1 Aspley - Underbed Drawer Assembly Instructions - Please keep for future reference 459/1261 457/9898 Dimensions Width - 52.9cm Depth - 144.0cm Height - 21.5cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, c a l l t h e Customer Helpline: 03456 400 800 Issue 1 - 23/06/20...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly Check you have all the This product has been produced We do not from natural timber; you may recommend the components and tools listed on pages 2 and 3. notice some variation in the grain use of power and colour of different component...
- Page 3 Components - Panels Please check you have all the panels listed below Drawer front ( 144.0 x 20.5cm) Drawer back ( 142.8 x 14.2cm) Drawer side x 2 ( 49.0 x 14.2cm) Support bar x 5 ( 48.7 x 7.0cm) Drawer base x 2 ( 138.7 x 24.3cm)
- Page 4 Components - Fittings If you have damaged or missing components, call the Customer Helpline: 03456 400 800 Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. Locking nut x 8 Wooden dowel x 8 Metal dowel x 8...
- Page 5 Assembly Instructions Step 1 Inserting wooden dowels Insert wooden dowels into drawer sides shown. Step 2 Inserting metal dowels Screw metal dowels into drawer front , as shown.
- Page 6 Assembly Instructions Step 3 Inserting metal dowels Screw metal dowels into drawer back , as shown. Step 4 Assembling drawer sides. Fit drawer sides drawer front , as shown. Insert 4 locking nuts into drawer sides Use a screwdriver to turn locking nuts clockwise to lock.
- Page 7 Assembly Instructions Step 5 Fitting back drawer Fit drawer back 2 to drawer sides, then insert 4 locking nuts into drawer sides as shown. Use a screwdriver to turn locking nuts clockwise to lock. Step 6 Attaching wheels Carefully, turn the product upside down.
- Page 8 Assembly Instructions Step 7 Fixing drawer base With help, turn the drawer 1º upside down. Fix support bars using screws d , as shown. Make sure support bars 2º are positioned according to the measures shown on the diagram. (Following the order) 3º...
- Page 9 Assembly Instructions Step 8 Fixing drawer base Place drawer base into the drawer as shown. Then, fix them through pre-drilled holes using screws , as shown. Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800...
