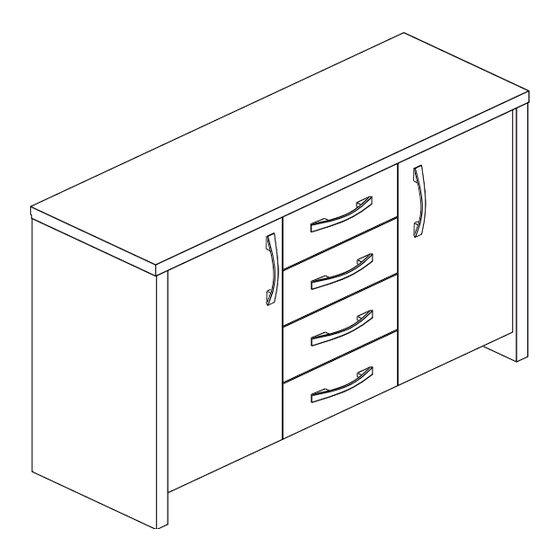

Venice - Sideboard
Assembly Instructions -
Dimensions
Width - 117cm
Depth - 39cm
Height - 83cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
346/8003
339/7844
MADE IN
BRITAIN
Issue 2 - 16/12/14
Advertisement
Related Manuals for Argos Venice Sideboard
Summary of Contents for Argos Venice Sideboard
- Page 1 Venice - Sideboard Assembly Instructions - 346/8003 Please keep for future reference 339/7844 Dimensions Width - 117cm Depth - 39cm MADE IN Height - 83cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 2 - 16/12/14...
-
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 40kgs. space to layout the parts before recommend the Please lift with care. starting. - Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Left Side Left Upright Right Upright Right Side (D1974A) (D1903A) (D1904A) (D1975A) (796 X 389mm)
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the 4 drawer fronts Screw 2 large metal dowels into the holes shown on the back of the drawer front Note: Tighten metal dowels up fully against...
- Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the drawer base...
- Page 7 Assembly Instructions Step 7 Fit the wedgefixes Turn the 4 drawer assemblies over and fit 2 wedgefixes to each one. Slide a wedgefix into the centre of the small groove located on the back of the drawer front and the drawer back Once in place, tighten up the screws in the...
- Page 8 Assembly Instructions Step 9 screw screw screw Prepare the left upright Fit 4 runners the left upright The 1st screw uses Finished front edge the 2nd hole in from the front of the runner. The 2nd and 3rd screws use the holes that line up with the other panel holes.
- Page 9 Assembly Instructions Step 10 screw screw screw Prepare the right upright Fit 4 runners the right upright The 1st screw uses the 2nd hole in from the front of the runner. The 2nd and 3rd screws use the holes that line up with the other panel holes.
- Page 10 Assembly Instructions Step 11 Prepare the top Screw 4 small metal dowels into the holes in the top Screw 4 large metal dowels into the holes in the top Note: Tighten metal dowels up fully against the panels. Fix a bracket flush to Finished the front edge of the...
- Page 11 Assembly Instructions Step 13 Fit the left upright Fit the left upright onto the top Use a screwdriver to tighten the 2 large locking nuts fitted to the left upright Note: Turn the large locking nuts as far as they will go - more than Finished front edge 1/2 a turn.
- Page 12 Assembly Instructions Step 16 Prepare the left side Screw 3 large metal dowels into the holes shown on the left side Note: Tighten the metal dowels up fully against the panels. Push 2 hollow core locking nuts into the left side , making sure that they are flush against the panel’s...
- Page 13 Assembly Instructions Step 18 Fit the right side Push the right side onto the top and the base The 2 small metal dowels fitted to the top must slide into the top of the 2 hollow core locking nuts fitted to the right side .
- Page 14 Assembly Instructions Step 20 Fit the plinth Push the plinth onto the right side Use a screwdriver to tighten the large locking fitted to the plinth Note: Turn the large locking nut as far as they will go - more than 1/2 a turn.
- Page 15 Assembly Instructions Step 22 The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Fit the back panels Square up the unit by making sure that measurement x:x equals y:y.
- Page 16 Assembly Instructions Step 24 Secure the unit to a wall and fit the shelves To prevent possible overbalancing we recommend that this unit is secured to a suitable wall by use of the metal bracket fitted under the top of the unit. Fixings are not supplied Top of unit as they will need to suit...
- Page 17 Assembly Instructions Step 26 Prepare the 2 doors Push fit 2 hinges into the left hand door and right hand door Secure each hinge with 2 screws Note: Before securing with the screws, make sure that the hinges are positioned at 90 degrees with the front edge of the...
-
Page 18: Right Door
Assembly Instructions Step 27 Fit doors and handle 2 people are needed here Note: The easiest way to attach each door is to fit the top hinge first, then align and fit the other hinge. Push the hinge onto the front part of the hinge plate Keep the hinge FLAT against the hinge... - Page 19 Assembly Instructions Step 28 Adjust the doors if needed Before adjusting the doors, use a spirit level to check the base (or top) of the unit is level, front-to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any adjustment to the hinges,...
- Page 20 Lift with care. Assembly is complete If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR3130...
