Star Headlight & Lantern 9901LED MINIBAR Mounting Instructions

W/worklight mounting option

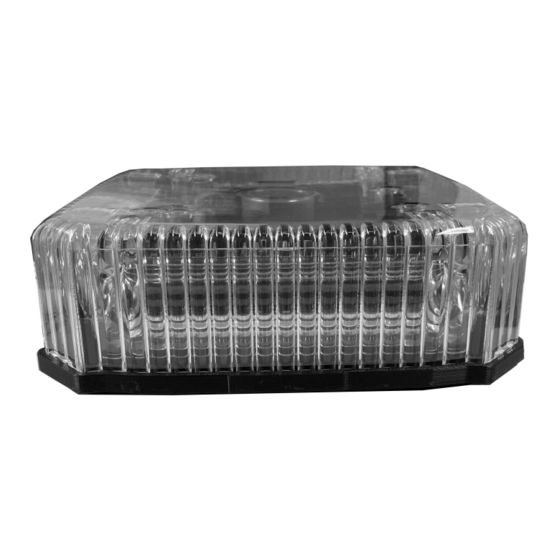

MODEL 9901LED MINIBAR

w/Worklight Mounting Option

(Worklight not included)

Please Note: These instructions are provided as a general guideline only. Specific

mounting, wiring, and/or weather-sealing may be necessary and are the sole

responsibility of the installer.

Star Headlight & Lantern Co., Inc. assumes no

responsibility for the integrity of the installation for this or any of its products.

PLIT608 REV. A

1/6/21

Table of Contents

Need help?

Do you have a question about the 9901LED MINIBAR and is the answer not in the manual?

Page 1 MODEL 9901LED MINIBAR w/Worklight Mounting Option (Worklight not included) Please Note: These instructions are provided as a general guideline only. Specific mounting, wiring, and/or weather-sealing may be necessary and are the sole responsibility of the installer. Star Headlight & Lantern Co., Inc. assumes no responsibility for the integrity of the installation for this or any of its products.
Page 2 IMPORTANT: Please read all of the following instructions before installing your new light. Mounting Instructions (when used with optional Worklight) The model you received has been designed to be compatible with a Go Light™ GT, Radio Ray, Stryker, Stryker Hardwire, Stryker ST Series (or most other worklights with identical mounting patterns).
Page 3 Hard Wire Instructions (Perm Mount Models) CAUTION: All wires connected to the positive terminal of the battery should be fused at the battery for their rated load. Testing the light before this fuse is properly installed will void the warranty on the light. Refer to the instructions enclosed with your worklight for proper connection of those wires.
