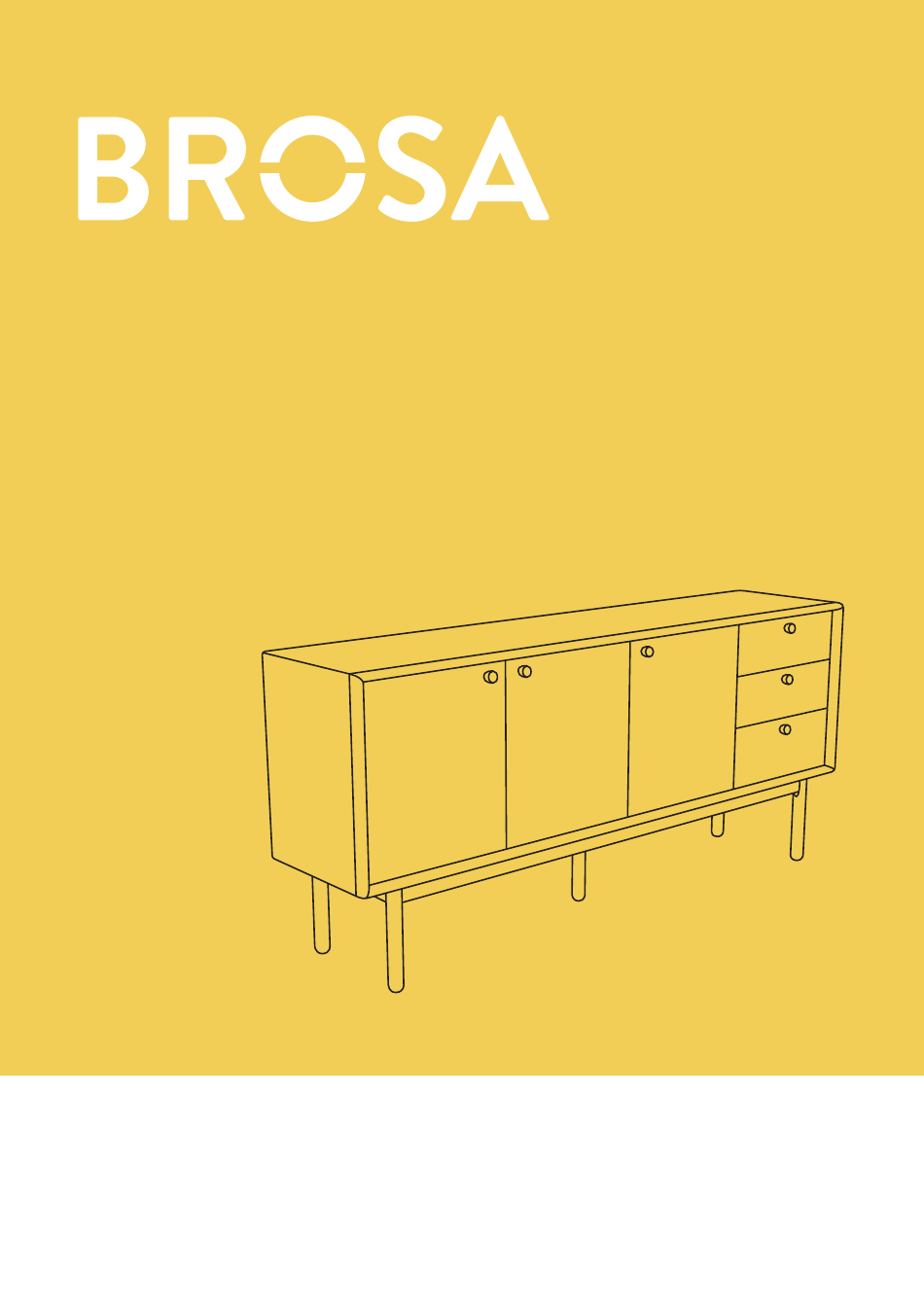

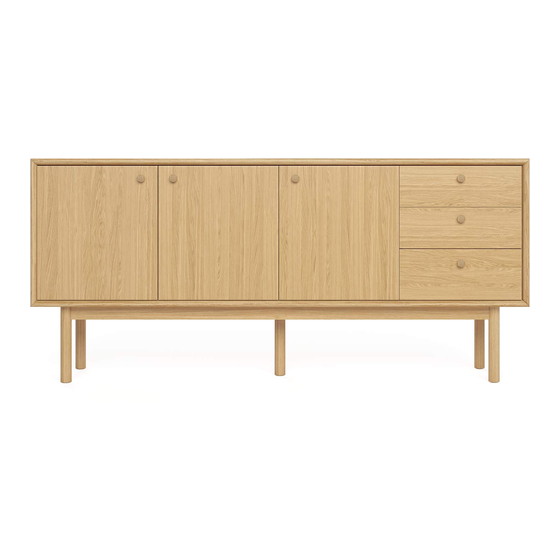

- Page 1 ASSEMBLY GUIDE Kaneko Sideboard...
- Page 2 Components Upon unpacking your storage from it’s delivery box, you should have the separate pieces shown below. Follow the steps on the next pages to assemble your new storage. Corner Leg x 4 Central Leg Long Shelf Short Shelf Body Hardware A x 4 B x 4...
- Page 3 Insert the cross dowel into the top hole of the Step 1 corner leg so that the side marker faces the bolt hole. Repeat for all four corner legs. A x 4 Screw the threaded bolt into the corner hole. Step 2 Repeat for all four legs.
- Page 4 Place the body on a at surface on it’s back. Insert a Step 3 leg construction formed in previous steps into a corner opening. Fit a washer (C), a lock washer then a hex nut to the threaded bold and tighten with the spanner (F).
- Page 5 Insert a pair of shelf supports into the holes on Step 4 the one side of the storage compartment. Make sure that both supports are on the same level. Tilt the shelf so it ts into the opening. Insert the shelf and rest on the supports.
- Page 6 Fix a mounting plate (aa) to the back of the storage Step 5 using at head screws (cc). By using appropriate fastener based upon wall com- position, x another mounting plate (aa) to the wall. Connect two plates with the nylon srap (bb). Tighten the strap so that the table is xed in the place.
- Page 7 To take the drawer out, open it, pull out the Lock Step 6 button inside of the drawer. Gently lift the front part of of the drawer.
- Page 8 To put the drawer back in, attach the connector in Step 7 the back of the drawer. Gently put down the front part of of the drawer so that the front connectors attach. Push back the Lock button inside of the drawer.
- Page 9 Turn the twist inside of the drawer to adjust it’s ver- Step 8 tical position, so that there are exqual gaps above and below the front wall. +2.5 -2.5...
- Page 10 Step 9 hinges if needed. Vertical adjustment via slots on mounting plate by slackening and retightening the screws on the mounting plate. Lateral adjustment by screw adjustent. Front-to-Back adjustment by slackening and retightening the hinge-arm mounting screw. Step 9.2 Step 9.1 Step 9.3...
- Page 11 Fix a mounting plate (aa) to the back of the storage Step 10 using at head screws (cc). By using appropriate fastener based upon wall com- position, x another mounting plate (aa) to the wall. Connect two plates with the nylon srap (bb). Tighten the strap so that the table is xed in the place.
- Page 12 Enjoy your new storage! Step 11...
