v1.0
ASSEMBLY GUIDE
Elizabeth Narrow Bookcase

Advertisement

loading
Need help?

Need help?

Do you have a question about the Elizabeth Narrow and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BROSA Elizabeth Narrow

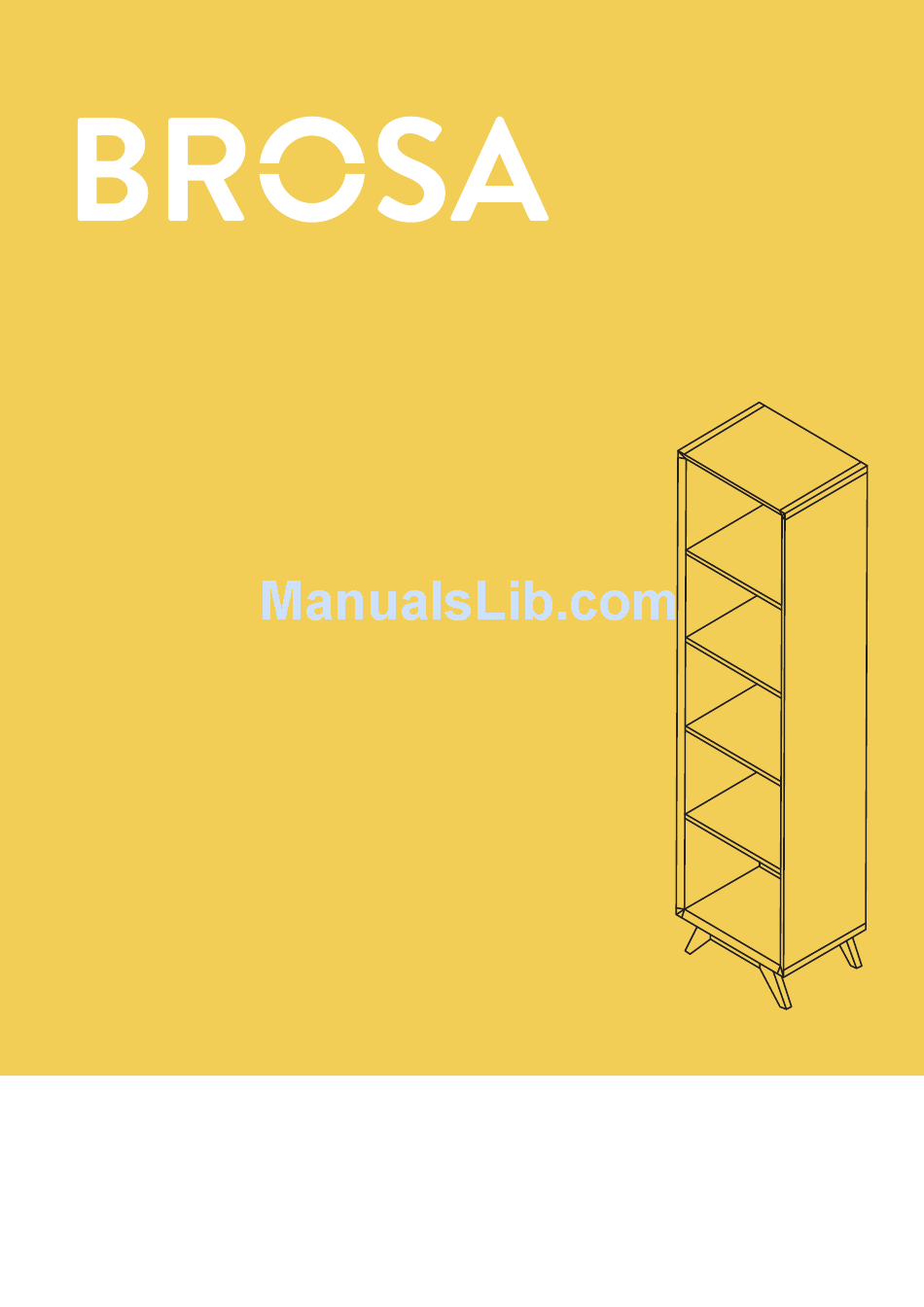

  • Page 1 ASSEMBLY GUIDE Elizabeth Narrow Bookcase...
  • Page 2 Components Upon unpacking your bookcase from its delivery box, you should have the separate pieces shown below. Follow the steps on the next pages to assemble your new bookcase. Top panel x 1 Side panel x 1 Back support beam x 1 Back support beam x 2 Side panel x 1...
  • Page 3 Hardware A x 10 B x 10 C x 8 D x 8 E x 2 Spec: Ø15 x 13.5mm Spec: Ø7 x 44.5mm Spec: Ø7 x 49.5mm Spec: Ø8 x 8.5mm Spec: Ø7 x 50mm F x 16 G x 12 H x 1 I x 4 J x 4...
  • Page 4 Step 1 Insert a cam screw into each hole on both side panels (2 & 3) the as shown in the diagram. B x 10 Step 2 Insert a steel dowel into each corner hole on the top panel and bottom panel as shown, making sure they all sit facing the correct direction.
  • Page 5 Step 3 Insert a dowel into each side hole on the shelf (5), both back support beams and back support beam as shown in the diagram. F x 16 Step 4 Insert a cross dowel into the hole at the top of each leg (9 &...
  • Page 6 Step 5 Align a back support beam to the shelf press rmly together, making sure the dowels into the holes. Step 6 Align a back support beam to the side panel rmly press together, making sure all parts t into each other.
  • Page 7 Step 7 Align the side panel to the structure formed in Step 6 and rmly press together, making sure that each part t into each other. Insert a cam lock into each hole as shown in the diagram. A x 5...
  • Page 8 Step 8 Align the bottom panel to the structure formed Step 7 and press rmly together, making sure that each part t into each other. Insert a grub screw into each hole inside the structure as shown. Repeat process for top panel (1). D x 8 Insert a bolt into both holes of the top panel...
  • Page 9 Step 9 Align back panel (11) to its corresponding place on the structure and secure in place with screws (O). Repeat for the back panel (12). O x 36...
  • Page 10 Step 10 Align a leg (9 or 10) to the underside of the structure making sure the threaded bold protruding from the leg ts into the hole in the frame. Fit a at washer to the bolt followed by a lock washer and a nut using the spanner to tighten the nut in place.
  • Page 11 Step 11 11.1 Insert a shelf supporter into each desired hole inside the structure, making sure that they’re all level. 11.2 Carefully insert each shelf one by one inside the unit. First making sure that the labels “BACK” are facing toward the inside of the structure and the holes G x 12 are facing down so that the pins from the shelf supporters...
  • Page 12 Step 12 e following steps are to instruct how to apply the anti tip kit (which is optional, but recommended). 12.1 Align the mounting bracket (aa) to the back of the bookcase and secure in place with the screws (cc). aa x 2 12.2 At the location the bookcase will be placed, mark...
