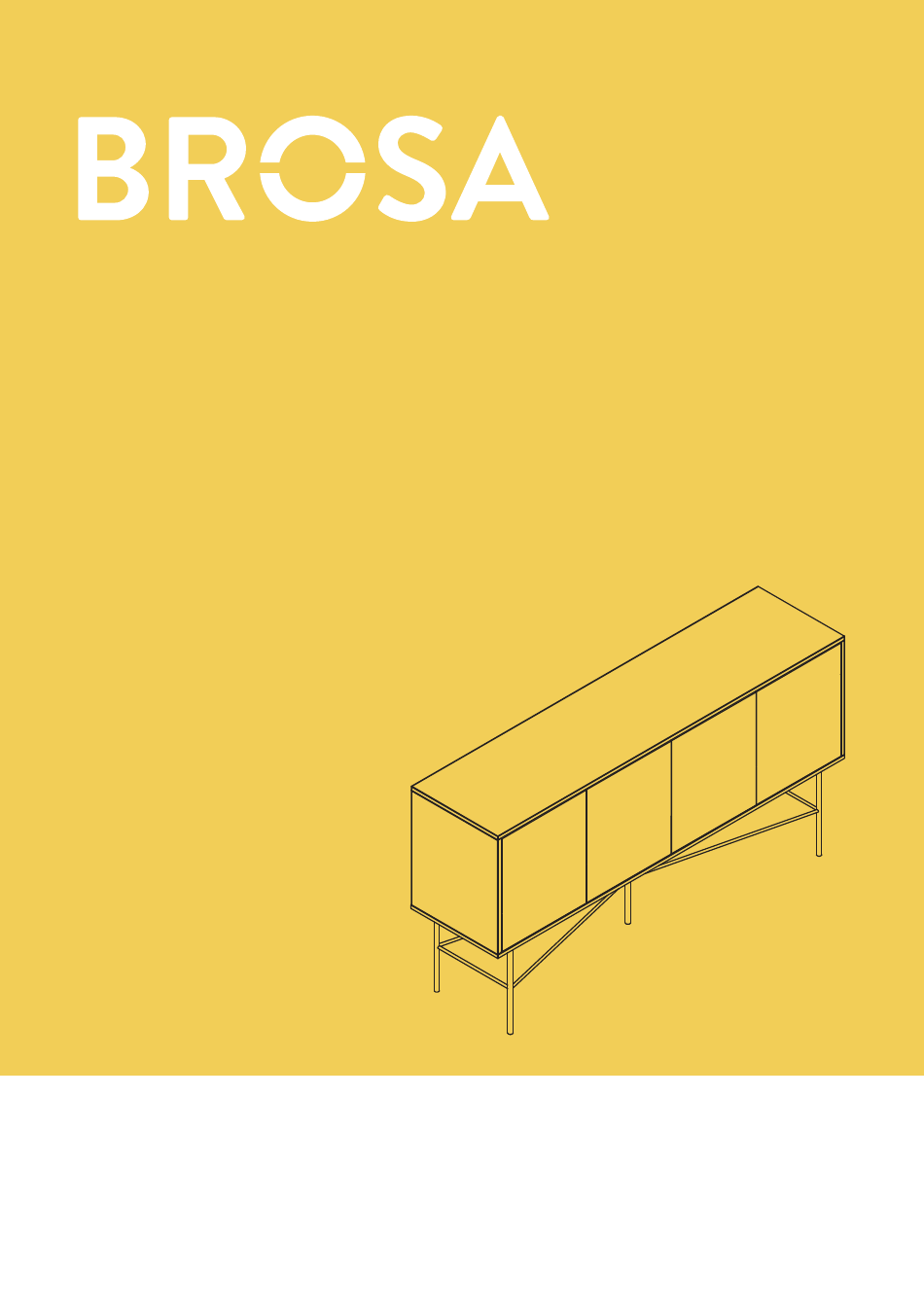

- Page 1 ASSEMBLY GUIDE Prato Sideboard...
- Page 2 Components Upon unpacking your sideboard from it’s delivery box, you should have the separate pieces shown below. Follow the steps on the next pages to assemble your new sideboard. Base x 1 Shelf x 4 Back wall x 4 Middle panel x 3 Side panel x 1 Side panel x 1 Top Panel x 1...
-
Page 3: What You Need
Hardware A x 20 B x 20 C x 20 D x 32 E x 32 F x 16 (Ø8 x 30) (Ø7 x L30) (Ø15 x H12) (M3.5 x 16) (H13) (Ø5 x L19) G x 16 H x 20 I x 1 J x 4 K x 4... - Page 4 Align the base of the push-to-open set with Step 1 corresponding holes on top panel and secure into place using the screws (M). Repeat for the remaining bases. Align the bottom of the push-to-open pin with the slot on the back of the base. Push the pin to secure it into place.
- Page 5 Insert the dowels into the inner holes on the Step 2 top panel and cam screws into the outer holes. Align the side panels (2) (4) and middle panels (3) (12) using the dowels and cam screws. Firmly press them together. Insert a cam lock into the side panel, making sure the mouth is facing down.
- Page 6 Slide the back walls into place. Step 3 Insert the dowels into the inner holes on the Step 4 base and cam screws into the outer holes. A x 10 B x 10...
- Page 7 Step 5.1 Align the base with the side panels and Step 5 middle panels. Insert a cam lock into the side panel, making sure the mouth is facing upward. Screw the cam lock using a screw driver. Repeat for the remaining holes on the side panels and middle panels.
- Page 8 Insert the back panel connectors into proper Step 6 places and secure them with screws (D). D x 32 E x 32 Cover each of the cam lock with a plastic cap (H). Step 7 Insert the shelf support screws into corre- sponding holes using a screw driver.
- Page 9 Insert the shelf support connector into corre- Step 8 sponding holes on the shelves and then place the shelves on the shelf support screws. G x 16...
- Page 10 e following steps are to instruct how to assemble Step 9 the doors (7) (10) on each side panel (4). Grab a hinge with larger arm (K). Fit the mount- ing plate of the hinge into the holes of the side panel and secure into place using a screw driver.
- Page 11 Repeat Step 9 with hinges with smaller arm Step 10 the remaining doors (8) (9). J x 4 L x 2...
- Page 12 e following steps are to instruct how to adjust the Step 11 hinges if needed. 11.1 Vertical adjustment via slots on mounting plate by slackening and retightening the screws on the mounting plate. 11.2 Lateral adjustment by screw adjustent. 11.3 Front-to-Back adjustment by slackening and retightening the hinge-arm mounting screw.
