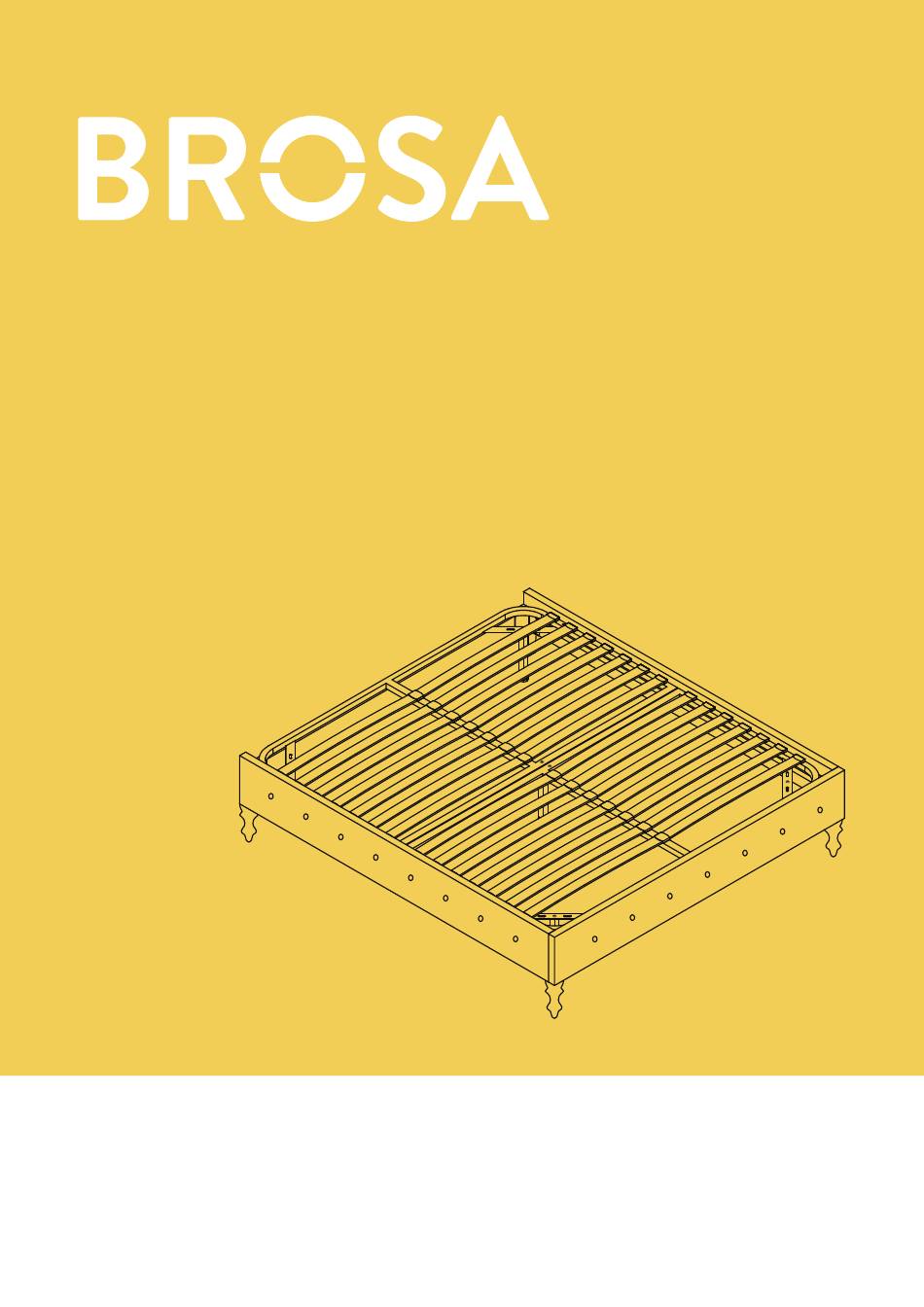

- Page 1 ASSEMBLY GUIDE Edward Bed Frame Base...
-
Page 2: What You Need
Components Upon unpacking your bed from it’s delivery box, you should have the separate pieces shown below. Follow the steps on the next pages to assemble your new bed. Sideboard x 1 Headboard x 1 Slat set x 1 Footboard x 1 Sideboard x 1 Wooden leg x 4 Middle leg x 1 Corner leg x 4 Hardware... - Page 3 Screw a wooden leg into the hole on the bottom Step 1 of the sideboard (2), making sure the plastic washer is attached to the leg. Repeat for the other sideboard and footboard (4). Loosen the screws on the sideboards (2) (3) Step 2 footboard...
- Page 4 Step 3.1 Hook the headboard to the front end of Step 3 both sideboards (3). Step 3.2 Hook the back end of both sideboards (2) (3) to the footboard (4). Step 3.3 Tighten the bolts using the allen key (E). E x 1 Step 3.3 Step 3.1...
- Page 5 Step 4.1 Unfold the slat set to make a full size slat Step 4 set. Step 4.2 Fit a spring washer to the bolt (B). Insert the bolt into the hole on the side face of the middle metal bar, making sure it protrudes from the other metal bar.
- Page 6 Middle leg is not necessary. If sleeping with 2 people Step 5 or for additional weight support, we recommend installing middle leg into corresponding place. Step 5.1 Unscrew bolts and nuts from the middle leg (7). Step 5.2 Align the middle leg with the holes on the middle bars of the slat set.
- Page 7 Corner legs are not necessary. If sleeping with 2 Step 6 people or for additional weight support, we recom- mend installing corner legs into corresponding places. Step 6.1 Rest the metal frame on the structure formed in Step Step 6.2 Unscrew bolts and nuts from the corner legs using the screw driver.
- Page 8 Enjoy your new bed! Step 7...
