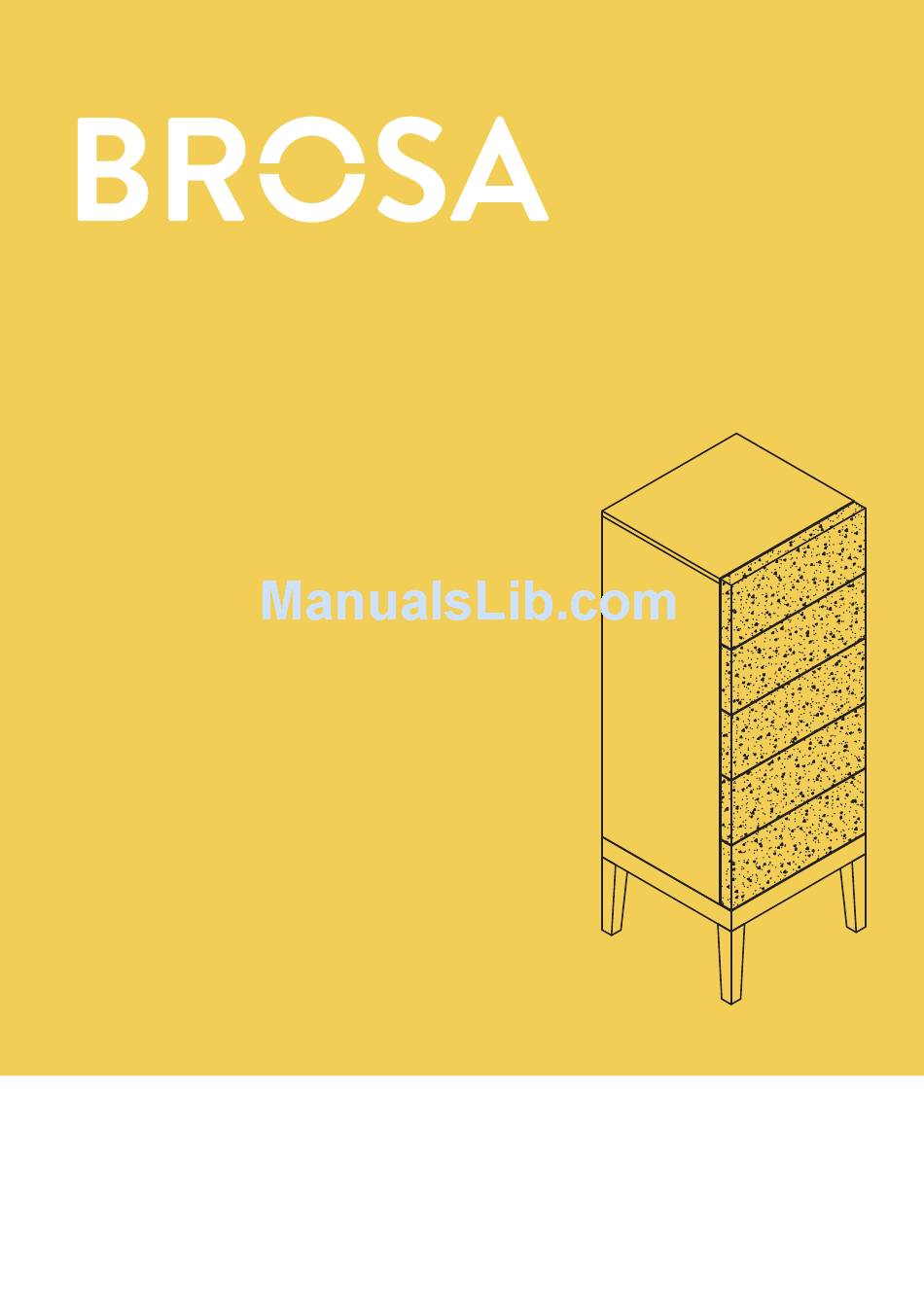

- Page 1 ASSEMBLY GUIDE Edgar Tall Chest of Drawers...
- Page 2 Components Upon unpacking your tall chest of drawers from it’s delivery box, you should have the separate pieces shown below. Follow the steps on the next pages to assemble your new tall chest of drawers. Outer body of chest of drawers Support beam x 4 Base x 1 Top panel x 1...
- Page 3 Hardware You will need...
- Page 4 Step 1 Insert a dowel in the bottom hole on either side of each support beam and a cam screw in each of the top holes on either side. Align a support beam to a side panel and rmly press together. Insert a cam lock into the hole as shown in the diagram to secure the support beam in place.
- Page 5 Step 3 Align a back panel into the grooves of the side panels making sure that the holes are facing upward and gently slide all the way to the bottom. Insert a dowel into both holes of the back panel and then align the second back panel and sliding it along the grooves until it meets the rst panel.
- Page 6 Step 5 Insert a dowel into each of the four legs and one by one align a leg to the base and rmly press into place. Use the allen key to tighten the bolts on the bottom of each leg and to secure them to the structure. A x 4 G x 1 Step 6...
- Page 7 Step 7 Align a track at an interval and x into place using screws (M & N). Repeat for the remaining tracks. Align the tray from the push system to its corresponding place and x with screws (M). Clip the push system into the tray and place a xed button H x 5...
- Page 8 Step 8 Align a track to a side panel for a draw and x into place with screws (M). Repeat the same process for the remaining side panels for the draws. M x 30 R x 5 Step 9 Insert a dowel into the middle hole on either side of the back side panel of the draw.
- Page 9 Step 10 Align the base of the draw to the structure and slide along the grooves until it reaches the end. Repeat for the remaining draws. Step 11 Insert a dowel into the middle holes on either side of the front panel of the draw and cam screws the four outer holes.
- Page 10 Step 12 Insert the draws into the body of the tall chest of drawers one by one. Step 13 Align the strap to the back of the dresser and use a screw to secure into place. T x 1 U x 1...
- Page 11 Step 14 14.1 At the location where the tall chest of drawers will be placed, mark out the hole along the wall where you’ll secure the strap. With a 7mm drill bit, drill the holes. Warning: check the wall for hidden pipes and cables before drilling any holes.
