Summary of Contents for BROSA Edgar Dresser

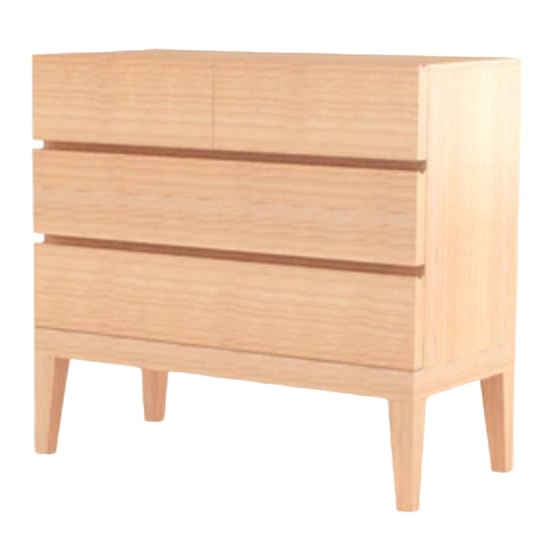

- Page 1 ASSEMBLY GUIDE Edgar Dresser...
- Page 2 Components Upon unpacking your dresser from it’s delivery box, you should have the separate pieces shown below. Follow the steps on the next pages to assemble your new dresser. Outer body of dresser Base x 1 Side panel x 2 Top panel x 1 Support beam x 2 Middle panel x 1...
- Page 3 Hardware You will need...
- Page 4 Step 1 Align the tray of the push system to the base and using screws to secure it into place. Clip the push system onto the tray in place. Fit the xed button over the push system making sure the screw holes overlap. Use the screws C x 4 to secure the xed button in place.
- Page 5 Step 2 Insert a dowel into the bottom hole of the support beam a cam screw into the hole above. Dab some glue onto the end of the support beam. Align the support beam and side panel together as shown in the diagram and press together. Insert a cam lock into both hole as shown in the diagram.
- Page 6 Step 3 Insert dowels into each of the four inner holes on the base (next to the cam screws that were xed in place from Step 1). Align the structure formed in Step 2 to the base and rmly press together. On the inside of the structure insert a cam lock into each of the four holes inside the structure as shown.
- Page 7 Step 4 Align one part of the back panel to the the structure making sure the holes are facing upward and gently slide along the grooves down to the base. Insert a dowel in each of the three holes on the top of the rst back panel.
- Page 8 Step 5 Insert a dowel into the inner hole along the bottom of the middle panel and a cam screw into the outer hole. Align the middle panel inside the top tier of the structure and rmly press the middle panel to the top support beam.
- Page 9 Step 7 Insert a dowel into each of the inner holes along the top panel and a cam screw into each of the outer holes. Align the top panel to the structure and rmly press together. Insert a cam lock into each of the four holes inside the structure as shown.
- Page 10 Step 9 Align a track to a side panel for a draw and x into place with screws (H). Repeat the same process for the remaining side panels for the draws. Insert a dowel into the middle hole on the end of each panel. A x 8 H x 24 Q x 4...
- Page 11 Step 11 Align the base of the draw to the structure and slide along the grooves until it reaches the end. Repeat for the remaining draws. For the two larger draws, one by one, insert a dowel into the two outer holes on the support beam and a A x 4 cam screw in the middle hole.
- Page 12 Step 12 For the smaller draw, t a washer to a screw screw it into the middle lower hole of the front panel then insert cam screws into the outer four holes. Align the front panel to the structure and rmly press together.
- Page 13 Step 13 For the larger draw, insert a dowel into the two outer holes of the support beam and a cam screw into the middle hole. en follow the same process from the last step to attach the front panel to the structure not forgetting to insert a cam lock into the support beam at the end of the process and repeat for the second draw.
- Page 14 Step 15 Place a stopper along the side of the back of the dresser as shown in the diagram and follow it with a screw to secure it in place. L x 6 M x 6 Step 16 Align the strap to the back of the dresser and use a screw to secure into place.
- Page 15 Step 17 17.1 At the location where the dresser will be placed, mark out two holes along the wall where you’ll secure the straps. With a 7mm drill bit, drill the two holes. Warning: check the wall for hidden pipes and cables before drilling holes.
