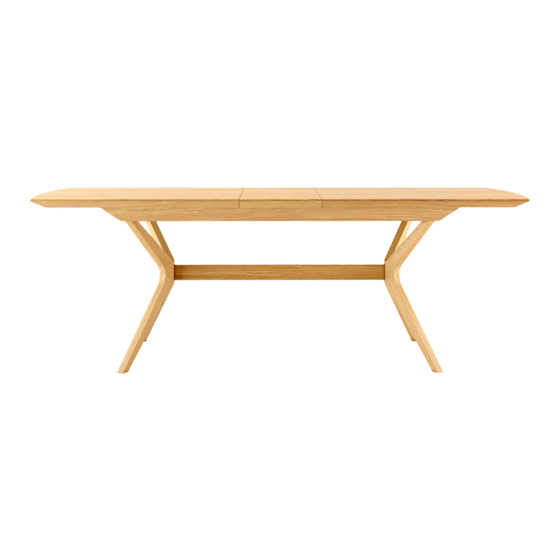

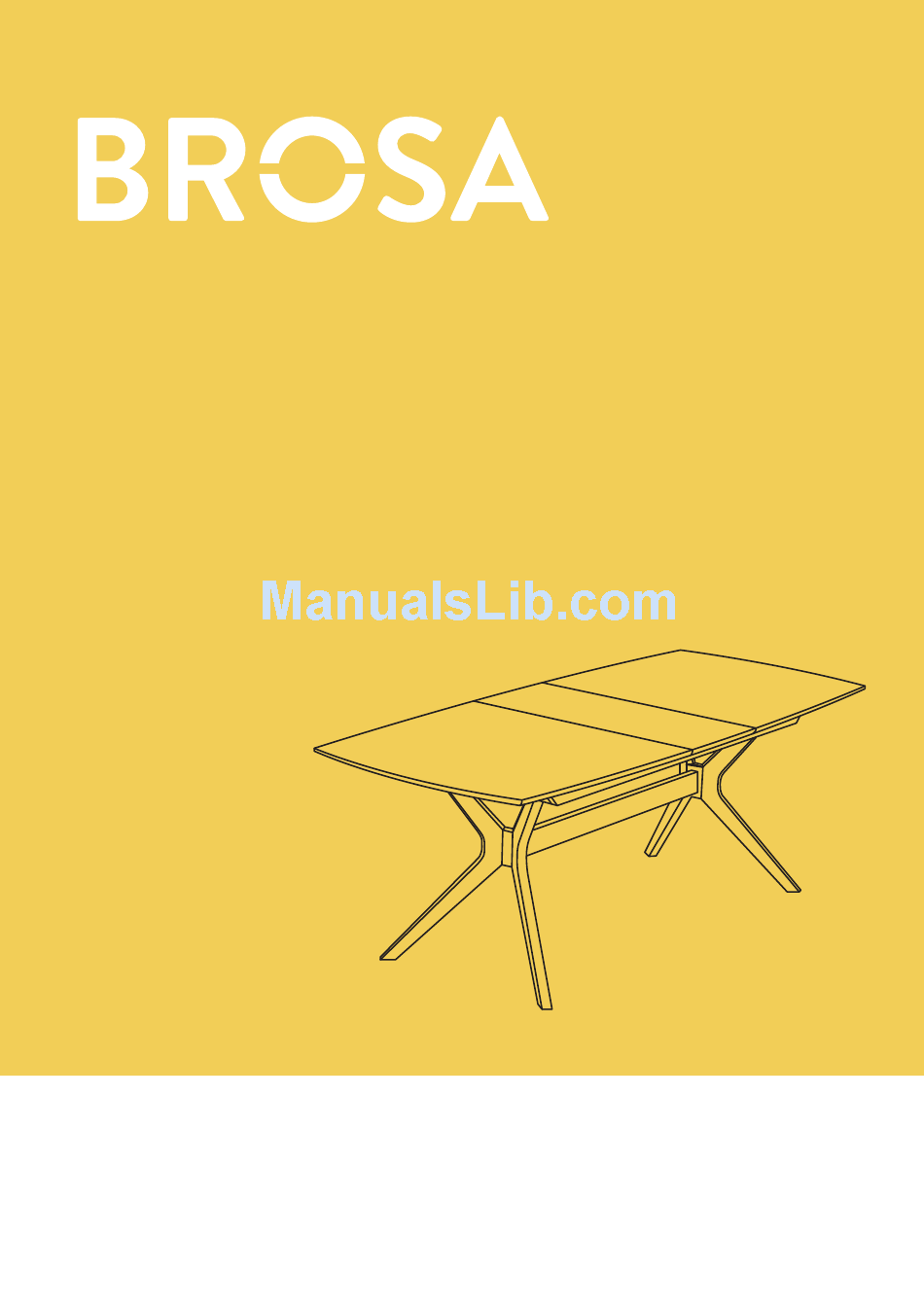

- Page 1 ASSEMBLY GUIDE Elizabeth Extendable Dining Table...
- Page 2 Components Upon unpacking your dining table from its delivery box, you should have the separate pieces shown below. Follow the steps on the next pages to assemble your new dining table. Leg x 2 Table top x 1 Corovin storage bag x 1 Stretcher x 1 Leaf x 1...
- Page 3 Step 1 Insert a steel dowel into both holes in the leg making sure they are facing the correct direction when in place. Repeat for the other leg (2). A x 4 Step 2 Align a leg to the stretcher tting them together and repeat for the other leg (2).
- Page 4 Step 3 Ensure that the slides are locked on the underside of the table top before commencing anything. Align the structure formed in Step 2 to the underside of the table top (1). Fit a lock washer to a bolt followed by a at washer and screw into a C x 8...
- Page 5 Step 5 e following steps are instructions on how to fully extend your table. Remove the leaf from the corovin storage bag and place on a soft, clean surface. Step 6 Unlock the slides underneath the table and with another person, gently pull the two halves of the table apart, until fully extended.
- Page 6 Step 7 Gently lower the leaf to be level with the table top and press it to one side of the table, rst making sure the pins are aligned to the holes. With another person holding the table, push the other end together with the leaf (4), again making sure the pins are aligned to the holes.
- Page 7 Step 8 To remove the leaf release the locks and with another person, gently pull the two halves of the table apart. Lift the leaf up and out of the table. Step 9 Place the leaf back into the corovin storage bag (5).
- Page 8 Step 10 Carefully place the corovin storage bag into the built in storage under the table top as shown. With another person, push the two halves of the table together and lock the slides.
