Install Ceiling Motion Sensor
1. Consider sensor placement conditions before
installing sensor. Refer to "Sensor Placement"
on page 19.
2. Secure mounting plate to overhead surface
with two screws (Figure 17). Ensure screws are
tight and mounting plate does not move easily.
Do not torque screws.
3. Set sensor housing assembly
on mounting plate (Figure 17).
4. Rotate sensor housing assem-
bly clockwise until it locks in
place. Ensure sensor housing
assembly fits snugly to mount-
ing plate.
5. Test the ceiling motion sensor
again according to "Verify
Sensing Motion" on page 20.
Sensor Functions
Figure 18 shows the location of the function button
on the sensor module. Refer to "Table 2: Function
Button and LED Indicators" on page 43 for infor-
mation on using this button and the LED indicator
to set up sensor module operation.
Button
Test Sensor with Controller
Refer to "ZigBee Pro Quick Setup" on page 42 for information
on how to test sensor operation.
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. "LG" is a registered trademark of LG Corp.
ACCESSORIES INSTALLATION

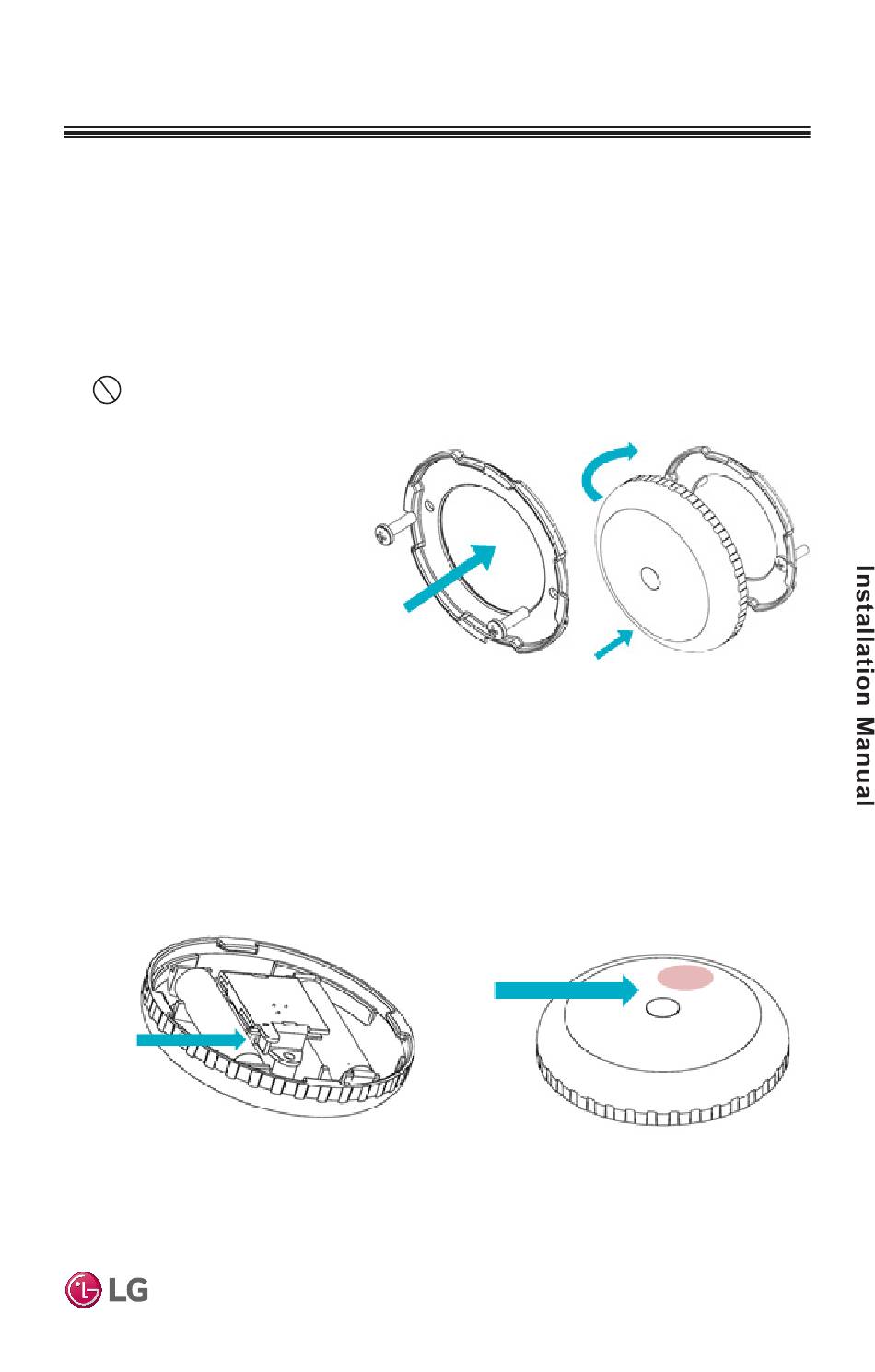

Figure 17: Installing Sensor on Ceiling
