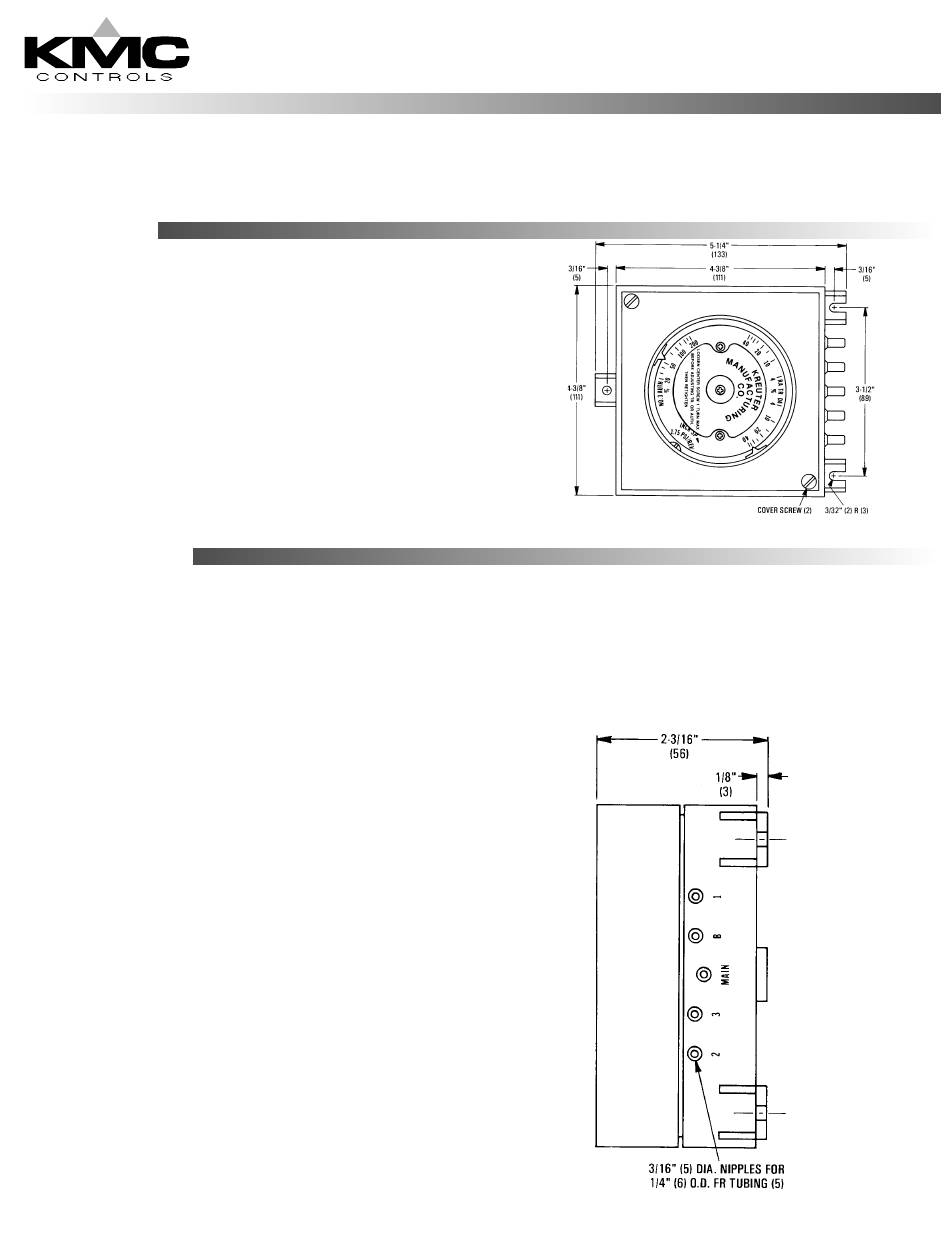

Mounting
The CCC-1001 and CCC-1002 are not position sensitive, but
they must be calibrated and mounted in the same orientation.
1. Locate the three mounting ears (flanges) on the unit.
2. Place the controller on the mounting surface and mark the
locations of the two top ears.
3. Partially install two mounting screws (#8 or #10) on the
marks. These should be 3-1/2" (89 mm) apart.
4. Slide the top ears under the screws.
5. Install the third mounting screw in the bottom ear and
tighten all three screws.
Connections
The units are supplied as Direct Acting (DA). If Reverse
Acting (RA) is required:
1. Locate the tubing connections on the back of the
controller.
2. Cut the branch tubing at the DA connection (lower right
corner)
3. Remove tubing from the two-prong guides
4. Connect branch tubing to the RA connection (upper right
corner) using brass fittings (provided)
5. Secure extra tubing in the two-prong guides.
The CCC-1001 and CCC-1002 each have five 3/16" (5 mm)
ports to accept 1/4" (6 mm) O.D. polyethylene tubing. Use
only clean, dry air with these controllers. Connect the
controller to other units as follows:
1. Main control air to "M". This should be 20 psig (137 kPa),
30 psig (207 kPa) max.
2. Primary input, 3 to15psig, to "Port 1"
3. Remote setpoint adjustment, 3 to 15 psig with a +/- 10%
offset, "Port 2"
4. Secondary input, "Port 3"
Installation Guide
Receiver Controllers
CCC-1001, CCC-1002
CCC-1001 Shown
