KMC Controls MEP-4600Q Series Installation Manual

CONTENTS
Mounting .................................................. 1
Wiring ...................................................... 2
Input/Feedback/Direction/Auto-mapping ....... 3
Input and Feedback Range ..................... 3
Direction and Auto-mapping ................... 3
MOUNTING
NOTE: Ensure the damper can move freely
through its entire range of motion, and fix
any binding before installing the actuator.
1. Turn the damper blade to its fully closed position.
2. Press (to the right) and hold the gear
disengagement lever (see Illustration 1), rotate the
actuator to the fully closed position, and release
the lever.
KMC Controls, 19476 Industrial Drive, New Paris, IN 46553
MEP-4600Q Series Actuators
MEP-4600Q Series Actuators
Gear Disengagement
Lever
Non-Rotation Bracket
(HMO-4002)
Mounting Surface

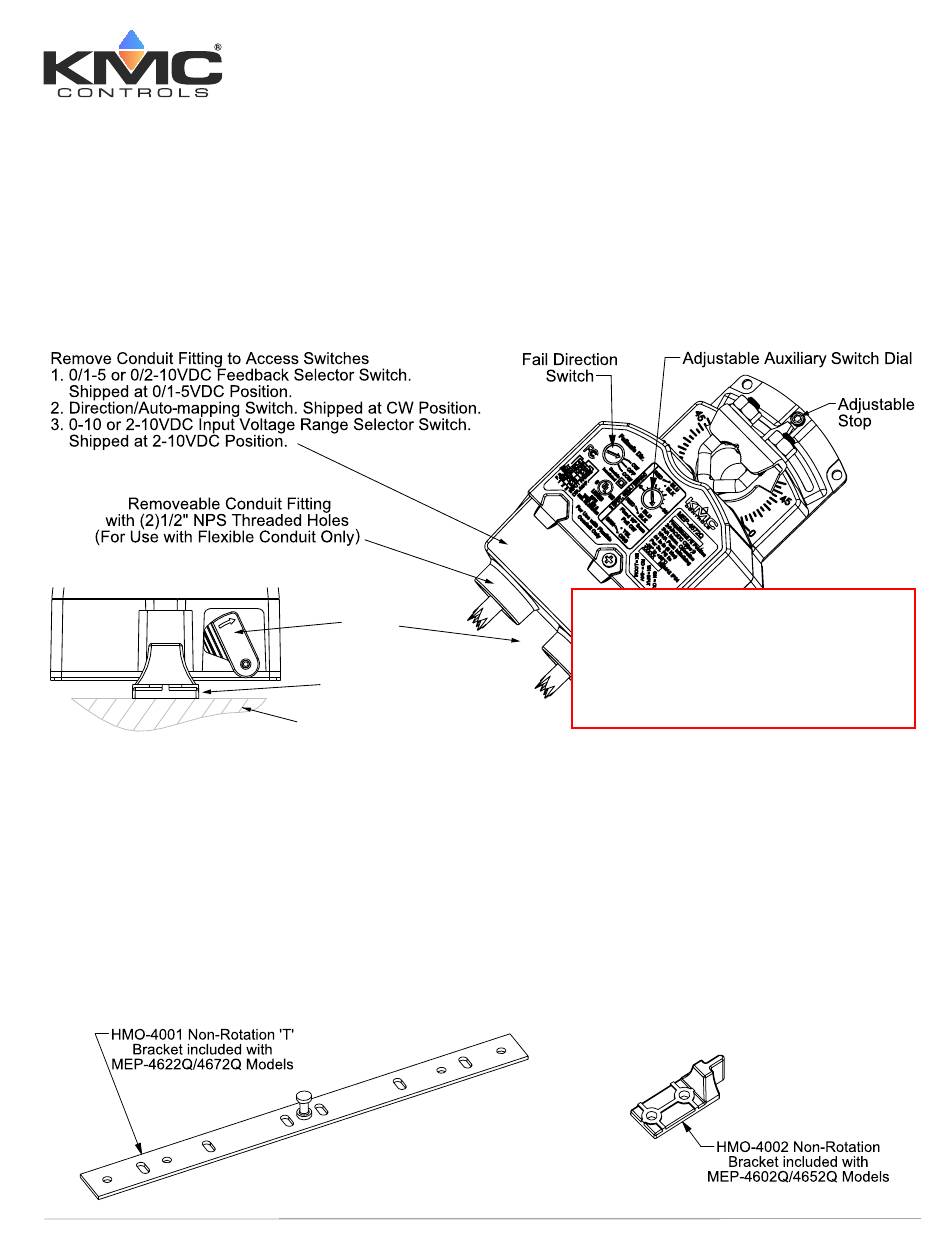

Illustration 1—Overview (Direct-Coupled Mounting)
Illustration 2—Non-Rotation Brackets
/
Fail-Safe Direction ..................................... 4
Auxiliary Switches ..................................... 4
Maintenance ............................................. 5
More Information ....................................... 5
Important Notices ...................................... 5
IMPORTANT!
Perform auto-mapping as described in
Input/Feedback/Direction/Auto-mapping
on page 3
range and extend the life of the actuator!
NOTE: Depending on the damper-seal design,
backing the actuator off its stop
approximately 5° may provide tight
damper shut-off.
3. Align the actuator and slide it onto the shaft.
4. Leaving a gap between the actuator and mounting
surface to prevent any binding, finger-tighten the
nuts on the V-bolt.
877.444.5622 / Fax: 574.831.5252
1
Installation Guide
to correctly set the rotation
/ www.kmccontrols.com
Installation Guide
