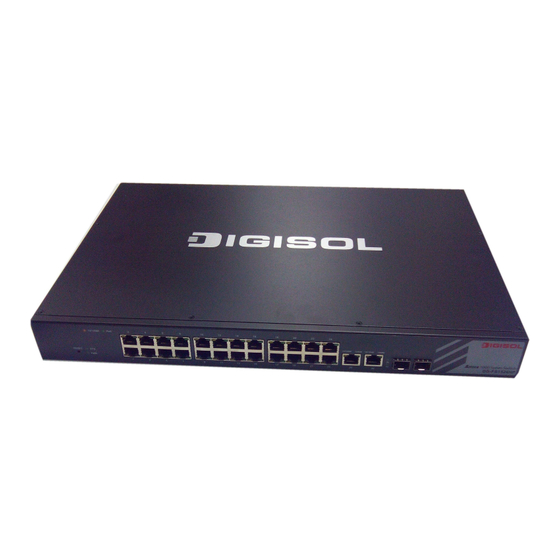

Layer 2 fast ethernet web managed poe switch
Hide thumbs Also See for DG-FS1526HP:

Advertisement

Quick Links

DG-FS1526HP
Layer 2 Fast Ethernet Web Managed PoE Switch
User Manual
V2.0
2017-01-04
As our products undergo continuous development the specifications are subject to change without prior notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DG-FS1526HP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Digisol DG-FS1526HP

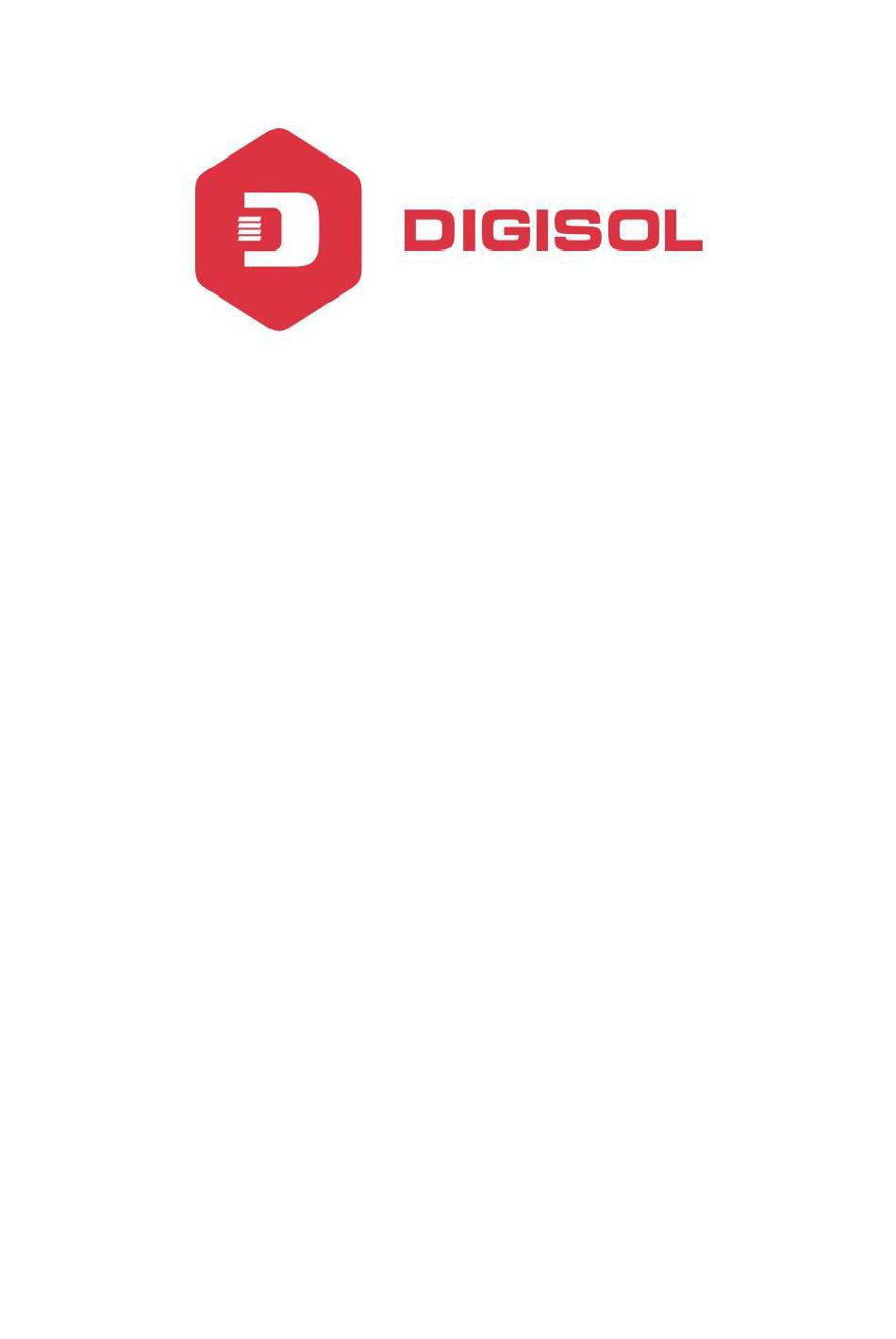

  • Page 1 DG-FS1526HP Layer 2 Fast Ethernet Web Managed PoE Switch User Manual V2.0 2017-01-04 As our products undergo continuous development the specifications are subject to change without prior notice...
  • Page 2: Table Of Contents

    DG-FS1526HP User Manual Contents 1 Introduction............................3 2 Hardware Description........................4 2.1 Front Panel..........................4 2.2 LED Indicators........................4 2.3 Rear Panel..........................4 3 Hardware Installation........................5 3.1 Package contents........................5 3.2 Switch Installation.........................5 3.3 Grounding the Switch......................6 3.4 Plugging in the AC Power Cord................... 7 3.5 Connecting Ethernet Interface....................
  • Page 3: Introduction

    DG-FS1526HP User Manual 1 Introduction Power-over-Ethernet (PoE) eliminates the need to run DC power to other devices on a wired LAN. Using a Power-over-Ethernet system, installers need to run only a single Category 5 Ethernet cable that carries both power and data to each device. This allows greater flexibility in the locating of network devices and, in many cases, significantly decreases installation costs.
  • Page 4: Hardware Description

    DG-FS1526HP User Manual 2 Hardware Description 2.1 Front Panel The front panel consists of LED indications, reset button and 24x10/100 PoE ports + 2x10/100/1000 Uplink pots. 2.2 LED Indicators Power LED: The Power LED lights up when the switch is connected to a power source.
  • Page 5: Hardware Installation

    DG-FS1526HP User Manual Hardware Installation 3.1 Package contents Package contents include the following: PoE Switch:24x10/100 PoE ports with 2x10/100/1000 combo ports Ethernet Switch  AC power cord  Two (2) rack-mount pallet and Six (6) screws  Four (4) adhesive-backed rubber feet ...
  • Page 6: Grounding The Switch

    DG-FS1526HP User Manual Please be aware of following safety instructions when installing: Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the  operating ambient temperature of the rack environment may be greater than room ambient.
  • Page 7: Plugging In The Ac Power Cord

    DG-FS1526HP User Manual Step 3: Insert the ground screw into the ground-screw opening. Step 4: Using a screwdriver, tighten the ground screw to secure the ground cable to the switch. Step 5: Attach the terminal lug ring at the other end of the grounding cable to an appropriate grounding stud or bolt on rack where the switch is installed.
  • Page 8 DG-FS1526HP User Manual Pin NO. Description Name Note Data transmission positive TPTXD+ Output Data transmission negative TPTXD- Output Data receive positive TPRXD+ Input Data receive negative TPRXD- Input UTP port explanation for Gigabit Ethernet is shown as follows: Pin NO.
  • Page 9: Troubleshooting

    DG-FS1526HP User Manual Troubleshooting This section is intended to help solve the most common issues with the PoE Switch Incorrect connections Every port on this switch can automatically detect either straight or crossover cables when you link it with other Ethernet devices but other devices may demand a specific cable type (depending on the device).
  • Page 10: Getting Started

    DG-FS1526HP User Manual nodes, there should be only one active cabling path at any time. Data path loops will cause broadcast storms that will severely impact your network performance. Diagnosing LED Indicators To assist in identifying problems, the switch can be easily monitored through panel indicators, which describe common problems the user may encounter and where the user can find possible solutions.
  • Page 11: Configuration

    DG-FS1526HP User Manual port on the PC. Login Web-based Management In order to login and configure the switch via an Ethernet connection, the PC must have an IP address in the same subnet as the switch. For example, if the switch has an IP address of 192.168.0.1 the PC should have an IP address of 192.168.0.1x (where x is a number between 2 ~...
  • Page 12: Administrator

    DG-FS1526HP User Manual 6.2 Administrator Administrator -> Authentication Configuration Here you can enter a new Username/Password and confirm it. Administrator -> System IP Configuration There are two ways for the switch to obtain an IP address: Static and DHCP (Dynamic Host Configuration Protocol).
  • Page 13 DG-FS1526HP User Manual action for a specific time span in the Web-based Management. If the current session times out (expires), the user is required a re-login before using the Web-based Management again. Selective range is from 3 to 30 minute, and the default setting is 5 minutes.
  • Page 14: Port Management

    DG-FS1526HP User Manual After a correct password the switch will erase the old firmware first. After completing the erase you will see the screen bellows. Specify the Firmware Path (or Browse for one) that you are going to use, and then click Update. The state will show ‘OK’ after completion, and ‘Fail’...
  • Page 15 DG-FS1526HP User Manual Enable: Enable or disable the port’s connection Auto-Nege: Enable or disable port auto-NDI/MDIX Speed: Copper connections can operate in Forced Mode settings (1000M Full, 100M Full, 100M Halt, 10M Full, 10M Half), Auto, or Disabled. The default setting for all ports is Auto.
  • Page 16 DG-FS1526HP User Manual Both (transmit and receive) mode: Duplicate both the data transmitted from and data sent to the source port, and forwards all the data to the assigned Target Port. Click “all” to include all ports into port mirroring.
  • Page 17: Vlan Setting

    DG-FS1526HP User Manual 6.4 VLAN Setting VLAN Setting -> VLAN Mode A VLAN is a group of ports that can be anywhere in the network, but communicate as though they were in the same area. VLANs can be easily organized to reflect department groups (such as R&D, Marketing), usage groups (such as e-mail), or multicast groups (multimedia...
  • Page 18: Per Port Counter

    DG-FS1526HP User Manual VLAN Setting -> Add VLAN: Click to create a new VLAN name and to select VLAN ports. The VLAN name should be less than 10 characters. To save the members in a group, click Add. VLAN Setting ->...
  • Page 19: Qos Setting

    DG-FS1526HP User Manual 6.6 QoS Setting QoS Setting -> Priority Mode QoS Setting -> Port, 802.1p ,IP/DS based...
  • Page 20: Security

    DG-FS1526HP User Manual QoS Setting -> TCP/UDP Port Based 6.7 Security Security -> MAC Address Binding...
  • Page 21: Spanning Tree

    DG-FS1526HP User Manual Security -> TCP/UDP Filter 6.8 Spanning Tree Spanning Tree -> STP Bridge Settings...
  • Page 22 DG-FS1526HP User Manual Spanning Tree -> STP Port Settings Spanning Tree -> Loopback Detection...
  • Page 23: Trunking

    DG-FS1526HP User Manual 6.9 Trunking Trunking -> Link Aggregation Settings The Trunking function allows the switch to combine two or four ports together to increase bandwidth. Select the Trunking Groups, choose the Members to be grouped together, and then click Submit to activate the selected Trunking Groups.
  • Page 24: Backup/Recovery

    DG-FS1526HP User Manual DHCP Relay Agent -> VLAN MAP Relay Agent 6.11 Backup/Recovery Allow the current configuration settings to be saved to a file (not including the password), and if necessary, you can restore configuration settings from the file.
  • Page 25: Miscellaneous

    DG-FS1526HP User Manual Backup or restore the configuration file to or from your local drive. Click Download to save the current settings to your disk. Click Browse to browse your inventories for a saved backup settings file. Click Update after selecting the backup settings file you want to restore.
  • Page 26: Snmp Settings

    DG-FS1526HP User Manual 6.13 SNMP Settings 6.15 Logout Click this to end this session Note: If you close the web browser without clicking the Logout button, it will be seen as an abnormal exit and the login session will still be occupied.
  • Page 27 DG-FS1526HP User Manual Status: Can enable or disable the PoE function. Class: Class 0 is the default for PDs. However, to improve power management at the PSE, the PD may opt to provide a signature for Class 1 to 4.
  • Page 28 DG-FS1526HP User Manual Delay Mode: Enable or disable the port’s PoE Power Delay function. Delay Time: Set PoE power delay time (0~300). PoE -> PoE Scheduling PoE Schedule user can configure a duration time for PoE port as default value does not provide power.
  • Page 29 DG-FS1526HP User Manual Once the PD stops working and without response, the PoE Switch is going to restart PoE port power, and bring the PD back to work. It will greatly enhance the reliability and reduces administrator management burden. Set Port No.: Select the port witch you want to set IP Address...
  • Page 30 DG-FS1526HP User Manual...
