- Page 1 8 Port Gigabit Web Managed PoE Switch with 2 Giga SFP Ports DG-GS1510PL PORTS V1.0 2019-01-24...
- Page 2 Please check with your local distributors for the latest information. No part of this document can be copied or reproduced in any form without written consent from the company. Trademarks: DIGISOL is a trademark of DIGISOL SYSTEMS LTD. All other trademarks are the property of the respective manufacturers.
-
Page 3: Products Introduction

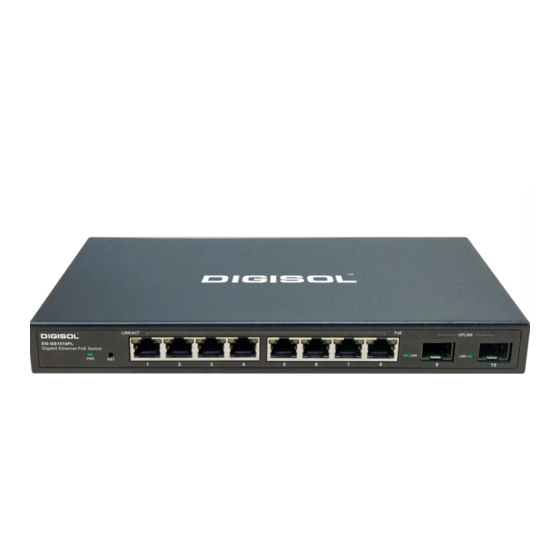

Products Introduction This is a Gigabit Web Managed POE Switch, It provides 8 10/100/ 1000Mbps Auto-Negotiation RJ45 POE ports and 2 Gigabit SFP Ports. It supports the port's full line speed forwarding to ensure the stable transmission of data. The machine can be used as a small local core switch or a small and medium-size LAN switch, also can be used as an access switch for large LAN. -
Page 4: Product Features
Product Features Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab Provides 8 10/100/1000 Base-TX ports and 2 1000Base-X SFP ports High back-plane bandwidth 20Gbps Support standard IP/ Extend IP / MAC IP / ARP ACL IGMP snooping and IGMP Query mode for Multimedia application Port mirror and bandwidth control IEEE802.3x Full-Duplex Flow control Support Port Based VLAN / 802.1Q Tag VLAN... -
Page 5: Desktop Or Shelf Installation
Second step: Switch installation For safe switch installation and operation, it is recommended that you: - Visually inspect the power cord to see that it is fully secured to the AC power connector. - Make sure that there is proper heat dissipation and adequate ventilation around the switch. -
Page 6: Power Failure
Third step: Connecting power supply Using the AC power cord to connect to the power adapter, and then plug in output terminal of the adapter into the DC IN socket on the back of the switch. (The AC power outlet should be grounded) Warning: Do not turn on the power switch before power cables are connected. -
Page 7: Getting Started
3. Getting Started This chapter introduces the management interface of Managed PoE switch. Management Option The Managed PoE switch can be managed through any port on the device by using the Web-based management. Each switch must be assigned its own IP address, which is used for communication with Web-Based Management or a SNMP network manager. -
Page 8: Login Web-Based Management
Login Web-based Management In order to login and configure the switch via an Ethernet connection, the PC must have an IP address in the same subnet as the switch. For example, if the switch has an IP address of 192.168.0.1, the PC should have an IP address of 192.168.0.x (where x is a number between 1 ~ 254), and a subnet mask of 255.255.255.0 Open the web browser and enter 192.168.0.1 (the factory-default IP address) in the address bar. - Page 9 4. WEB page Introduction 1. Logon Dialog Box When the following logon dialog box appears, enter the password then click OK. By default, the username is admin and the password is admin. After a successful login, the main page will appear as follows, and you can click the menu on the left side to configure the corresponding functions.
