Summary of Contents for Digisol DG-GS1016D-A

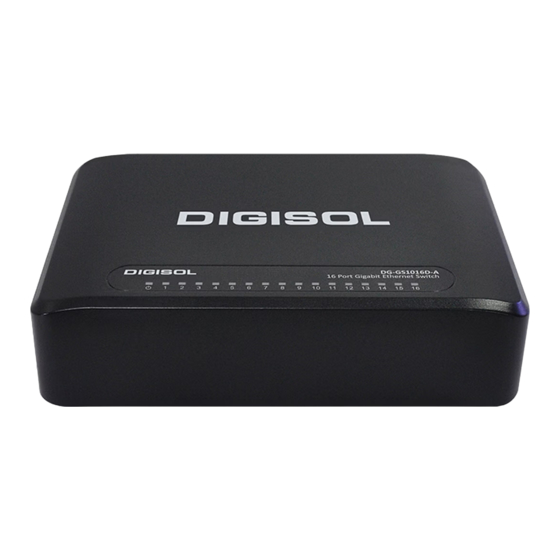

- Page 1 16 Port 10/100/1000Mbps Gigabit Ethernet Unmanaged Switch DG-GS1016D-A 2000 Mbps PORTS V1.1 2018-05-21...
- Page 2 Please check with your local distributors for the latest information. No part of this document can be copied or reproduced in any form without written consent from the company. Trademarks: DIGISOL is a trademark of DIGISOL SYSTEMS LTD. All other trademarks are the property of the respective manufacturers.
- Page 3 Make sure that the package contains above items. If any of the listed items is damaged or missing, please contact your retailer immediately. Product Overview The DG-GS1016D-A is a 10/100/1000Mbps Ethernet unmanaged switch. It is designed to enhance network performance in a compact form factor. The switch comes with 16x10/100/1000Mbps ports, offering solutions for accelerating bandwidth needs of small Ethernet workgroups.
- Page 4 System Requirements The following system requirements are recommended Network card for each PC or Server Network cables min. Cat.5E UTP/STP for 1000Mbps Front View After installing the switch, you can check its status from the LED indicators on the front panel shown below. LED Description Following is the LED description: Status...
- Page 5 Power Connection Plug the circle end of the power adapter firmly into the power port on the rear side, and the other end into an electrical service outlet, then the device is ready to use. Connecting Computers to the Switch The switch features auto MDI/MDIX cross over detection function and provides plug-and-play capability.
- Page 6 Limited Lifetime Warranty helpdesk@digisol.com 1800 209 3444...
- Page 8 DIGISOL SYSTEMS LIMITED L-7, Verna Industrial Estate, Digisol is a Subsidiary of Smartlink Holdings Limited Salcete, GOA - 403722 www.digisol.com 1800 209 3444 helpdesk@digisol.com sales@digisol.com...
