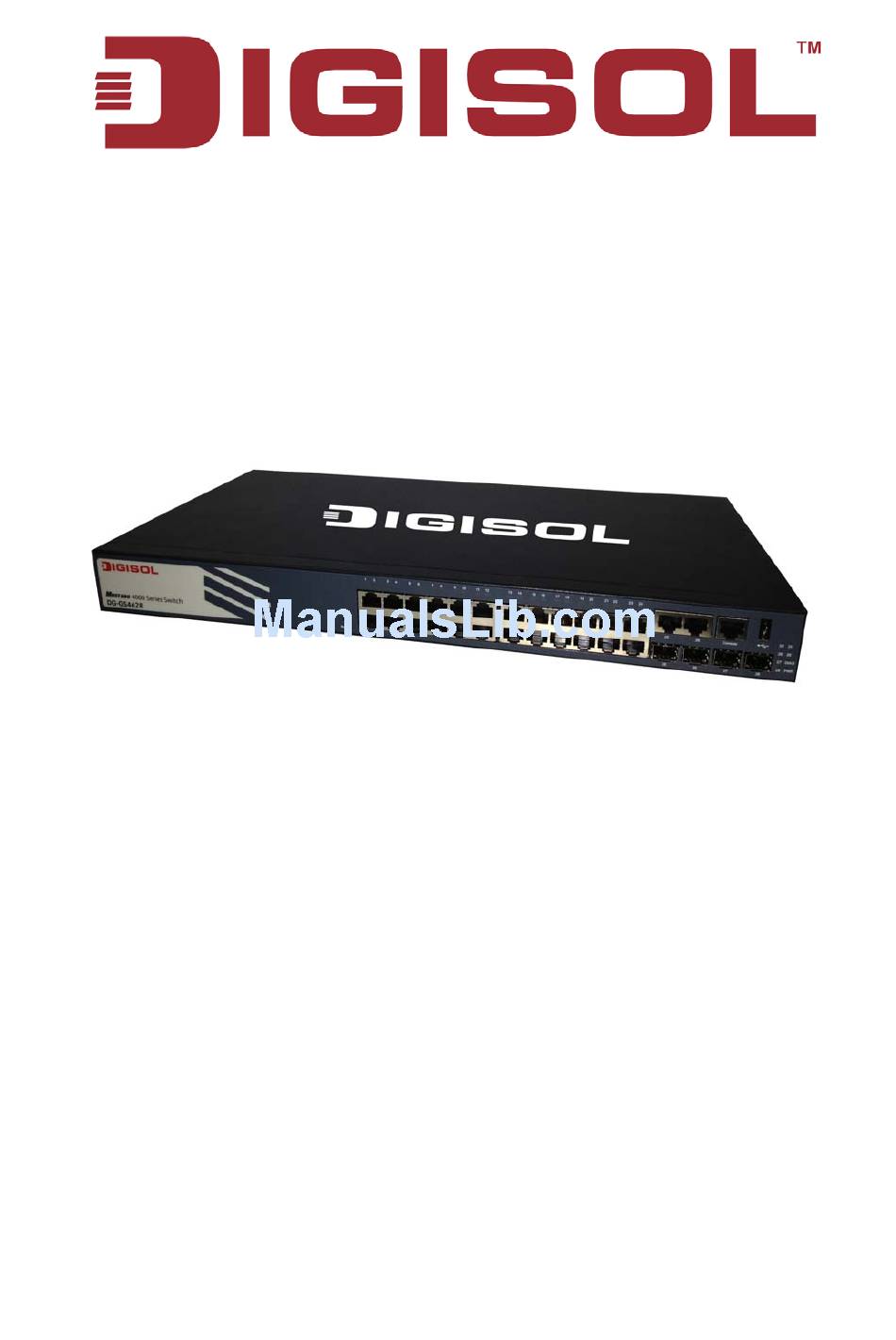

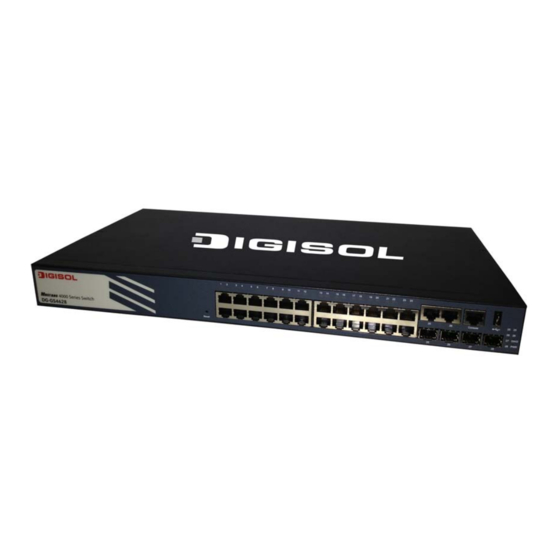

- Page 1 DG-GS4600 SERIES 24/48 PORT ACCESS LAYER 3 SWITCH Installation Guide V1.0 2013-05-22 As our products undergo continuous development the specifications are subject to change without prior notice...
-
Page 2: Table Of Contents
Content Content Chapter 1 Introduction ............1-1 1.1 Product Brief ................... 1-1 1.2 Physical Specifications ..............1-2 1.3 Description of Hardware ..............1-3 1.3.1 Front Panel....................1-3 1.3.2 Back Panel ....................1-4 1.3.3 Status LEDs .....................1-5 1.3.4 Front Panel Port Description ..............1-9 Chapter 2 Hardware Installation ........... -
Page 3: Chapter 1 Introduction
(48 10/100/1000Base-T fixed ports and 4 1000Mb optical ports). DG-GS4628HP has 30 fixed ports (24 10/100/1000Base-T fixed ports, 2 1000Mb COMBO ports and 2 1000Mb optical ports), it also supports 24 1000Mb PoE power supply. DG-GS4600 series switch with advanced intelligent and secure features, can serve ideally as distribution layer switches for the 1000Mb input device of campus networks, enterprise networks and IP metropolitan networks. -
Page 4: Physical Specifications
Introduction Note (*): DG-GS4600 Series, currently only includes DG-GS4628 model. DG-GS4610, DG-GS4652 and DG-GS4628HP switches will be available in Future hardware release. DG-GS4628HP: Fig 1-3 DG-GS4628HP switch DG-GS4652: Fig 1-4 DG-GS4652 switch 1.2 Physical Specifications Management Port 1 RJ-45 serial console port ... -
Page 5: Description Of Hardware
Introduction Relative Humidity 5% ~ 95%, no condensate Dimension DG-GS4610: 330mm×44mm×204mm (W * H * D) DG-GS4628: 440mm×44mm×230mm (W * H * D) DG-GS4652: 440mm×44mm×220mm (W * H * D) DG-GS4628HP: 440mm×44mm×410mm (W * H * D) 1.3 Description of Hardware 1.3.1 Front Panel DG-GS4610 has 8 10/100/1000Base-T ports, 2 Combo ports (2 RJ-45 and 2 SFP), 1 Console port, 1 USB port, 14 LEDs and 1 220V AC power socket. -
Page 6: Back Panel
Introduction The front panel of DG-GS4628HP is shown below: Fig 1-7 Front Panel of DG-GS4628HP DG-GS4652 has 48 10/100/1000Base-T ports, 4 SFP optical ports and 52 LEDs. The front panel of DG-GS4652 is shown below: Fig 1-8 Front Panel of DG-GS4652 1.3.2 Back Panel The back panel of DG-GS4610 is shown below: Fig 1-9 Back Panel of DG-GS4610... -
Page 7: Status Leds
Introduction 1.3.3 Status LEDs DG-GS4600 series include port indications and system status indication. Their status meanings are shown below. 1.3.3.1 Port indication Description Fig 1-13 DG-GS4610 LED diagram Table 1-1 DG-GS4610 port indications description Panel Symbol Status Description ports are in successful link state of 10M,... - Page 8 Introduction Table 1-2 DG-GS4628 port indications description Panel Symbol Status Description ports are in successful link state of 10M, On (Green) 100M or 1000M GE Port1-24(Link/Act) ports are in successful link state and Flash(Green) receive/send data ports are not in link ports are in successful link state of 10M, On (Green) 100M or 1000M...
- Page 9 Introduction Table 1-3 DG-GS4628HP port indications description Panel Symbol Status Description ports are in successful link state of 10M, On (Green) 100M or 1000M GE Port1-24(Link/Act) ports are in successful link state and Flash(Green) receive/send data ports are not in link ports are in successful link state of 10M, On (Green) 100M or 1000M...
- Page 10 Introduction Fig 1-16 DG-GS4652 LED diagram Table 1-4 DG-GS4652 port indications description Panel Symbol Status Description On (Green) ports are in successful link state of 1000M ports are in successful link state of 1000M Flash(Green) and receive/send data ports are in successful link state of 10M or GE Port1-48(Link/Act) On (Yellow) 100M...
-
Page 11: Front Panel Port Description
Introduction Power is off or error Green light Operating status is normal winks fast DIAG Green light System is in loading winks slowly 1.3.3.3 PoE Indication Description Table 1-6 DG-GS4628HP Button description Button status Port LED status POE LED Button Show port Link/Act... - Page 12 Introduction 1000Base-SX SFP (850nm, MMF, 550m) SFP-LX-L transceiver 1000Base-LX SFP interface card module (1310nm, SMF, 10km or MMF, 550m) SFP-LX-20-L transceiver 1310nm light waves, 9/125um single mode fiber: 20km SFP-LX-40 transceiver 9/125um single mode fiber: 40km SFP-LH-70-L transceiver ...
-
Page 13: Chapter 2 Hardware Installation
2.1.1.1 Dust and Particles Dust is harmful to the safe operation of DG-GS4600 series. Dust can lead to electrostatic adherence, especially likely under low relative humidity, causing poor contact of metal connectors or contacts. Electrostatic adherence will result in not only reduced product lifespan, but also increased chance of communication failures. - Page 14 Hardware Installation In addition, salt, acid and sulfide in the air are also harmful to the switch. Such harmful gases will aggravate metal corrosion and the aging of some parts. The site should avoid harmful gases, such as SO S, NO , NH and Cl , etc.
-
Page 15: Power Supply
Hardware Installation rear of the rack. Short term working conditions refer to a maximum of 48 hours of continued operation and an annual cumulative total of less than 15 days. Formidable operation conditions refers to the ambient temperature and relative humidity value that may occur during an air-conditioning system failure, and normal operation conditions should be recovered within 5 hours. -
Page 16: Installation Notice
Caution！ If a standard 19’’ rack is not available, the DG-GS4600 series can be placed on a clean level desktop, leave a clearance of 100mm around the switch for ventilation, and do not place anything on top of the switch. -
Page 17: Security Warnings
Hardware Installation standard cables and connecters. After the installation, users should clean the site. Before powering on the switch, users should ensure the switch is well grounded. Users should maintain the switch regularly to extend the lifespan of the switch. 2.1.3 Security Warnings ... -
Page 18: Required Tools And Utilities
2.3 Installation Guide 2.3.1 Installing the Switch Please mount DG-GS4600 series switch as below: 1. Attach the 2 brackets on the DG-GS4600 series with screws provided in the accessory kit. Fig 2-1 Fasten the Brackets to the Switch 2. Put the bracket-mounted switch smoothly into a standard 19’’ rack. Fasten the DG-GS4600 series to the rack with the screws provided. -
Page 19: Connecting Console
Please place a rack shelf under the switch. Do not place anything on top of the switch. Do not block the blowholes on the switch to ensure the proper operation of the switch. 2.3.2 Connecting Console DG-GS4600 series provides a serial RJ45 console port. Fig 2-3 Connecting Console to switch The connection procedure is listed below: Find the console cable provided in the accessory kit. -
Page 20: Sfp Transceiver Installation
Power on the switch and the character terminal. Configure the switch through the character terminal. 2.3.3 SFP Transceiver Installation DG-GS4600 series provide multiple 1000Mb SFP transceiver slots. The procedure for installing the SFP transceiver is shown below: Step 1: Put on a ESD wrist strap (or antistatic gloves) Step 2: Insert the SFP transceiver to the guide rail inside the fiber interface line card. -
Page 21: Power Supply Connection
Hardware Installation Fiber cables should be connected as below: Step 1: remove the protective plug from the SFP/XFP fiber transceiver bore; Remove the protective cap from one end of the fiber cable. Keep the fiber end clean and neat. Step 2: Attach one end of the fiber cable to the SFP/XFP transceiver, and attach the other end to the transceiver of the other devices. - Page 22 The input voltage must be within the required range, otherwise the switch can be damaged or malfunction. Do not open the switch shell without permission. It can cause physical injury. This product comes with Life time warranty. For further details about warranty policy and Product Registration, please visit support section of www.digisol.com 2-10...
