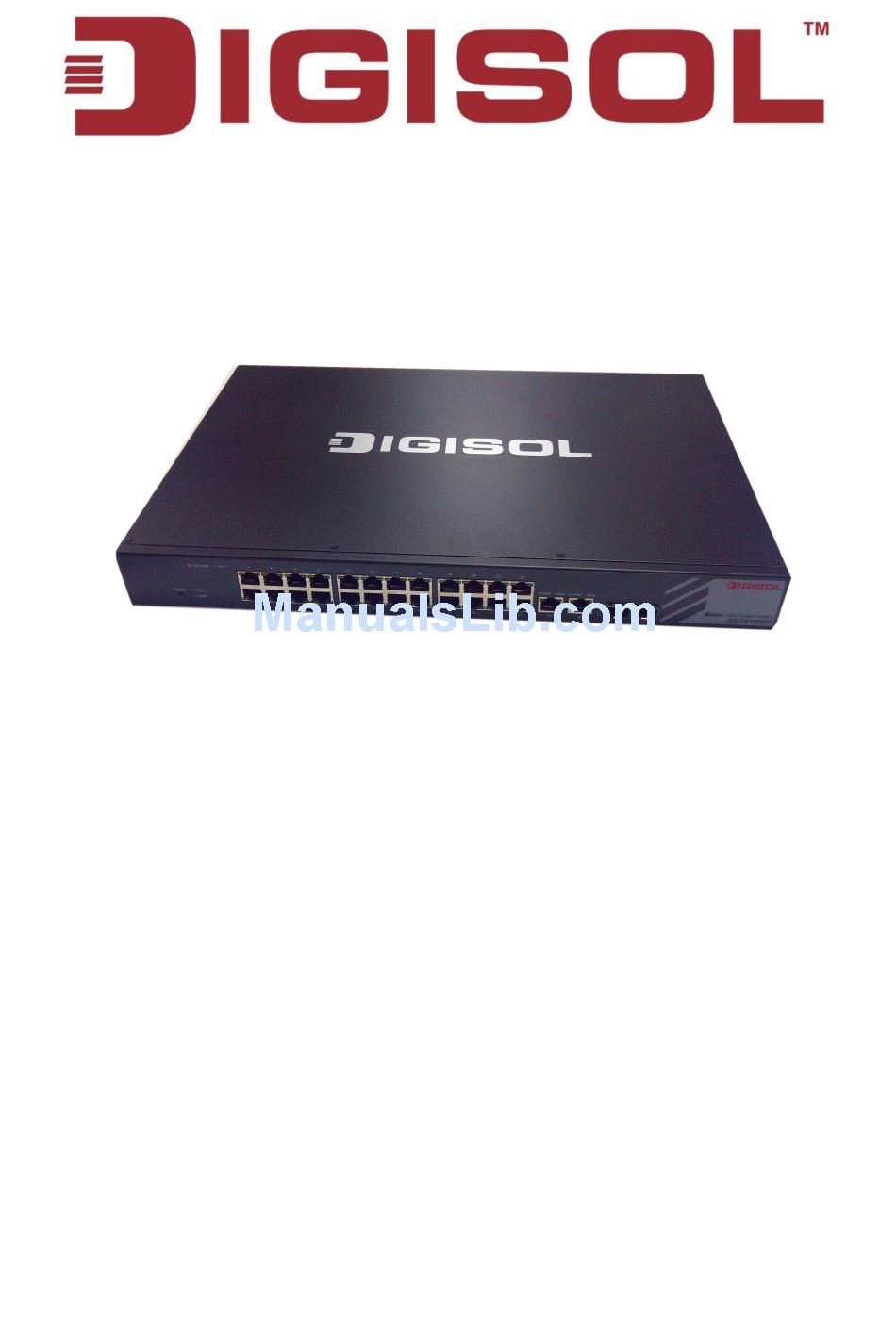

Page 1: User Manual
DG-FS1526HP Layer 2 Fast Ethernet Web Managed PoE Switch User Manual V1.0 2014-10-23 As our products undergo continuous development the specifications are subject to change without prior notice... - Page 2 Trademarks: DIGISOL™ is a trademark of Smartlink Network Systems Ltd. All other trademarks are the property of the respective manufacturers. Safety This equipment is designed with the utmost care for the safety of those who install and use it.
-
Page 3: Table Of Contents
DG-FS1526HP User Manual Index 1 Precautions........................... 8 2 Overview..........................9 2.1 Product Features......................9 3 Technical Specifications....................10 3.1 Environment Requirements..................10 3.2 Power Interface......................10 3.3 Power Consumption....................10 3.4 Ethernet Interface...................... 10 3.5 Physical Characteristics....................11 4 Device Installation and Description.................12 4.1 Preparation Before Installation................12 4.1.1 Package Contents.....................12... - Page 4 DG-FS1526HP User Manual 4.2.1 Front Panel......................14 4.2.2 Rear Panel......................16 4.3 Electrical Setup......................16 4.3.1 Setting Up the Power Interface............... 16 4.3.2 Setting Up the Ethernet Interfaces..............16 5 Device Startup........................19 5.1 Check Before Power-On..................19 5.2 Powering On the Device...................19 6 Device Upgrade.........................
- Page 5 DG-FS1526HP User Manual 7.3.4 Loading Default Settings..................25 7.3.5 Firmware Update....................26 7.3.6 Reboot the Device.....................26 7.4 PoE..........................27 7.4.1 PoE Status......................27 7.4.2 PoE Setting......................28 7.4.3 PoE Power Delay....................29 7.4.4 PoE Scheduling....................30 7.4.5 NTP Setting......................31 7.5 Port Management...................... 31 7.5.1 Port Configuration.....................
- Page 6 DG-FS1526HP User Manual 7.6.2 VLAN Member....................41 7.6.3 Multi to 1 Setting Configuration...............45 7.7 Per Port Counter......................46 7.8 QoS Configuration.....................48 7.8.1 Priority Mode...................... 49 7.8.2 Class of Service Configuration - 1..............50 7.8.3 Class of Service Configuration - 2..............52 7.9 Security........................
- Page 7 DG-FS1526HP User Manual 7.12.1 DHCP Relay Agent..................66 7.12.2 Relay Server....................67 7.12.3 VLAN MAP Relay Agent................67 7.13 Configuration Backup and Recovery..............68 7.14 Miscellaneous Configuration................. 69 7.15 SNMP Settings......................70 7.16 Logout........................71 8 Troubleshooting........................72 9 Glossary..........................73...
-
Page 8: Precautions
DG-FS1526HP User Manual Precautions Power supply sockets with too heavy load or broken cables and plugs may cause electric shock or fire. Users should check the power supply wires and cables regularly. If there is any breakage, please replace the cable at once. -
Page 9: Overview
DG-FS1526HP User Manual Overview The DG-FS1526HP is an intelligent Layer 2 PoE Ethernet switch. It provides 24 10M/100M self-adaptive Ethernet ports and 2 gigabit combo ports. The combo ports can be flexibly connected to gigabit copper cable or backbone fiber. You can select 1000BASE-LX, 1000BASE-SX or 1000BASE-T interface according to the transmission distance. -
Page 10: Technical Specifications
DG-FS1526HP User Manual Technical Specifications 3.1 Environment Requirements The whole device can survive in a wide range of operating temperature and can work normally and stably in a tough environment. Operating temperature: 0˚C—40˚C Storage temperature: -10˚C—70˚C Relative humidity: 10%—90% (non-condensing) ... -
Page 11: Physical Characteristics
DG-FS1526HP User Manual Working mode: full duplex, half duplex, self-adaptive. Port type: 24 x 10/100Base-TX self-adaptive Ethernet ports. – 2 x 10/100/1000Base-TX self-adaptive Ethernet ports. – 2 x SFP fiber ports. They are shared with 10/100/1000Base-TX self-adaptive –... -
Page 12: Device Installation And Description
DG-FS1526HP User Manual Device Installation and Description 4.1 Preparation Before Installation 4.1.1 Package Contents DG-FS1526HP Fast Ethernet PoE Switch. Power Cord. Bracket Mounting Kit Installation Guide CD. (includes User Manual) Four adhesive foot pads. 4.1.2 Optional Accessories and Tools ... -
Page 13: Choosing The Installation Location
On a rack 4.1.3.1 Installing the DG-FS1526HP on the Work Platform The common way is to install the DG-FS1526HP on a clean work platform. Pay attention to the following precautions: Ensure that the work platform is flat and stable. -
Page 14: Hardware Description
DG-FS1526HP User Manual 4.2 Hardware Description 4.2.1 Front Panel The following table describes the interfaces of the DG-FS1526HP. Interface/Button Description 1~24 24 x RJ-45 Ethernet interfaces, 10 M/100 M self-adaptive. Two groups of fiber-copper combo ports. The copper ports are 10... - Page 15 DG-FS1526HP User Manual The following table describes the twenty-seven LED indicators of the DG-FS1526HP. Color Status Description Indicator The power is off. Power Green The power is on. The LAN interface is not connected. 1 ~ 24, 25, 26 Amber Blinks Data is being transmitted.
-
Page 16: Rear Panel
4.3 Electrical Setup 4.3.1 Setting Up the Power Interface After placing the DG-FS1526HP to a flat and stable surface, insert the supplied power cable to the power socket, and connect the other end of the cable to the power interface of DG-FS1526HP. - Page 17 DG-FS1526HP User Manual Figure 1 Pin out of Ethernet interfaces Crossover cable: Refer to 0 to connect one end of the network cable. Refer to 0 to connect the other end. Straight-through cable: Refer to 0 to connect both ends of the network cable.
- Page 18 DG-FS1526HP User Manual Definition Color Brown Pin out of RJ-45 crossover cable Table 2. Definition Color RXD+ Green and white RXD- Green TXD+ Orange and white Blue Blue and white TXD- Orange Brown and white Brown Note: To ensure good quality of the data signal, the length of the network cable...
-
Page 19: Device Startup
When other indicators blink three times and the Power indicator is always on in green, the power works normally. Device Upgrade You can upgrade software through any Ethernet port for DG-FS1526HP. After software upgrade is complete, the system reboots automatically. -
Page 20: Web Configuration And Management
DG-FS1526HP User Manual Web Configuration and Management The system does not support the CLI management. It supports the web management only. This section describes the web configuration and management. 7.1 Preparation Before Login Before accessing the switch, ensure the communication between PC and switch is normal. -
Page 21: Logging In To The Switch
DG-FS1526HP User Manual Ping the maintenance IP address (192.168.2.1 by default) of the switch. See the following figure. If the PC can read the MAC address of the switch and can ping through the maintenance IP address of the switch, that means the communication of the PC and the switch is normal. - Page 22 DG-FS1526HP User Manual After logging in to the switch successfully, the following page appears.
-
Page 23: System Management
DG-FS1526HP User Manual 7.3 System Management Choose Administrator, and the sub-menus of Administrator are as shown below. 7.3.1 Authentication Configuration Choose Administrator > Authentication Configuration, and the following page appears. Read the Note in the page, and change the user name and password. After proper configuration, click Update to apply the settings and then Reboot the device for the changes to take effect. -
Page 24: System Ip Configuration
DG-FS1526HP User Manual 7.3.2 System IP Configuration Choose Administrator > System IP Configuration, and the following page appears. In this page, you can set the maintenance IP address of the switch, subnet mask and gateway. After proper configuration, click Update to apply the settings and then Reboot the device for the... -
Page 25: System Status
DG-FS1526HP User Manual 7.3.3 System Status Choose Administrator > System Status, and the following page appears. In this page, you can view the MAC address, number of ports and system version. You can also set a comment. 7.3.4 Loading Default Settings Choose Administrator >... -
Page 26: Firmware Update
DG-FS1526HP User Manual 7.3.5 Firmware Update Choose Administrator > Firmware Update, and the following page appears. In this page, enter the login password. Then click Update. A pop up page will appear asking you to select new file for updating the firmware. -
Page 27: Poe
DG-FS1526HP User Manual 7.4 PoE Choose PoE, and the sub-menus of PoE will appear as shown below. 7.4.1 PoE Status Below screen displays the Power over Ethernet settings for the switch. -
Page 28: Poe Setting
DG-FS1526HP User Manual Maximum Available Power – The configured power budget for the switch. System Operation Status – The PoE power service provided to the switch ports. Main Power Consumption – The amount of power being consumed by PoE devices connected to the switch. -
Page 29: Poe Power Delay
DG-FS1526HP User Manual Port – The port number. Status – The administrative status of PoE power on the port. Power Budget – The configured power budget for the port. Power Consumption – The current power consumption on the port. Priority – The port’s configured power priority setting. -
Page 30: Poe Scheduling
DG-FS1526HP User Manual 7.4.4 PoE Scheduling The POE port can be scheduled to deliver the power on time basis so during Non-working hours the port can be Down. It helps to save energy. Schedule On Port - Select the Port No. to be scheduled for POE. -
Page 31: Ntp Setting
DG-FS1526HP User Manual 7.4.5 NTP Setting Set the NTP server IP for POE settings along with Time zone. 7.5 Port Management Choose Port Management, and the submenus of Port Management are shown as below. -
Page 32: Port Configuration
DG-FS1526HP User Manual 7.5.1 Port Configuration Choose Port Management > Port Configuration, and the following page appears. In this page, you can set Tx/Rx Ability, Auto-Negotiation, Speed, Duplex, Pause, Backpressure and Addr Learning of port. -
Page 33: Port Mirroring
DG-FS1526HP User Manual 7.5.2 Port Mirroring Choose Port Management > Port Mirroring, and the following page appears. In this page, you can enable port mirroring service. The packets from source port transmit to destination port. Field Description Dest Port You can select one or more. - Page 34 DG-FS1526HP User Manual Field Description You can select it from the drop-down list: Monitored Packets Source Port You can select one or more.
-
Page 35: Bandwidth Control
DG-FS1526HP User Manual 7.5.3 Bandwidth Control Choose Port Management > Bandwidth Control and the following page appears. - Page 36 DG-FS1526HP User Manual Field Description Port No. You can select the port number from the drop-down list. Tx Rate The range of transmitting rate is 0 ~ 255. 0 means full speed. Rx Rate The range of receiving rate is 0 ~ 255. 0 means full speed.
-
Page 37: Broadcast Storm Control
DG-FS1526HP User Manual 7.5.4 Broadcast Storm Control Choose Port Management > Broadcast Storm Control and the following page appears. Field Description The valid range is 1 ~ 63. This value indicates the number of broadcast packets that are allowed to enter each port in one time unit. One time... -
Page 38: Vlan Configuration
DG-FS1526HP User Manual 7.6 VLAN Configuration In large networks, routers are used to isolate broadcast traffic for each subnet into separate domains. This switch provides a similar service at Layer 2 by using VLANs to organize any group of network nodes into separate broadcast domains. VLANs confine broadcast traffic to the originating group, and can eliminate broadcast storms in large networks. -
Page 39: Vlan Mode
DG-FS1526HP User Manual 7.6.1 VLAN Mode 7.6.1.1 VLAN Based on Port Choose VLAN Setting > VLAN Mode, and the following page appears. The default mode is Port Based VLAN. Click Change VLAN mode to change the VLAN mode. Once "Change VLAN mode" is selected, a warning message will appear. Select "Continue"... -
Page 40: Vlan Based On Tag
DG-FS1526HP User Manual 7.6.1.2 VLAN Based on Tag In the tag based vlan mode, you can modify the packet contents that are transmitted from the port. You can add tag or remove tag. If you do not want to modify the packets, select... -
Page 41: Vlan Member
DG-FS1526HP User Manual 7.6.2 VLAN Member 7.6.2.1 VLAN Based on Port Choose VLAN Setting > VLAN Member, and the following page appears. Field Description Port Select the corresponding port from the drop-down list. Dest PORT Select the corresponding port that is in the same VLAN of the current port. - Page 42 DG-FS1526HP User Manual 7.6.2.2 VLAN Based on Tag When the VLAN mode is tagged, the VLAN Member Setting page is shown in the following figure.
- Page 43 DG-FS1526HP User Manual The following figure displays the VLAN configuration in the tag mode Field Description Select the Vlan ID to be assigned to the VLAN and click on Add to enter the VID. Once the VID is added it will appear in the drop down list.
- Page 44 DG-FS1526HP User Manual To add vlan, enter a VID and select vlan member for this entry from vlan member list. Now select “Add” button to add vlan entry to the table. Vlan entry can be modified by selecting VID from the list and then select “Update” button.
-
Page 45: Multi To 1 Setting Configuration
DG-FS1526HP User Manual 7.6.3 Multi to 1 Setting Configuration Choose VLAN Setting > Multi to 1 setting, and the following page appears. This feature can disable communication between ports in order to improve the security. After setting the multi to 1 setting, the VLAN original setting will be cleared. If the VLAN is configured again, the multi to 1 setting will be cleared. -
Page 46: Per Port Counter
DG-FS1526HP User Manual 7.7 Per Port Counter Choose Per Port Counter, and the Port Counter submenu is shown as below. Choose Per Port Counter > Port Counter and the following page appears. In this page, you can view the packet quantity. - Page 47 DG-FS1526HP User Manual Field Description Select it from the drop-down list: Counter Mode Selection Click Update to view the corresponding packet quantity. Refresh Click the button to refresh the counter information. Clear Click the button to clear the counter information.
-
Page 48: Qos Configuration
DG-FS1526HP User Manual 7.8 QoS Configuration All switches or routers that access the Internet, rely on class information to provide the same forwarding treatment to packets in the same class. Class information can be assigned by end hosts, or switches or routers along the path. Priority can then be assigned based on a general policy, or a detailed examination of the packet. -
Page 49: Priority Mode
DG-FS1526HP User Manual 7.8.1 Priority Mode Choose QoS Setting > Priority Mode, and the following page appears. In this page, you can set the priority mode. The system supports the following three priority modes. First-In-First-Out All-High-before-Low Weight-Round-Robin Low weight: You can select 0 ~ 7 from the drop-down list. -
Page 50: Class Of Service Configuration - 1
DG-FS1526HP User Manual 7.8.2 Class of Service Configuration - 1 Choose QoS Setting > Port, 802.1p, IP/DS based and the following page appears. The COS of port supports the following mode. Based on port. Based on 802.1p: The priority is determined according to the value of 802.1p (bit... - Page 51 DG-FS1526HP User Manual 000-011 map to lower priority. Packets in which values of 802.1p (bit [15:13]) are 100-111 map to higher priority. Based on IP / DS: For IPv4 packets, the priority is determined according to the value of TOS [5:0] in the header. Packets in which values of TOS [5:0] are 101110, 001010, 010010, 011010, and 11x000 map to higher priority.
-
Page 52: Class Of Service Configuration - 2
DG-FS1526HP User Manual 7.8.3 Class of Service Configuration - 2 Choose QoS Setting > TCP/UDP Port Based and the following page appears. COS based on TCP/UDP port specifies the priority queues of packets or discards designated protocol packets according to the application layer protocols of packets received at the port. COS... -
Page 53: Security
DG-FS1526HP User Manual Field Description You can select it from the drop-down list: Option Port: The valid range is 1 ~ 65535. User_Define Mask: The valid range is 0 ~ 255. Override: When the "override" item is selected, the... -
Page 54: Mac Address Binding
DG-FS1526HP User Manual 7.9.1 MAC Address Binding Choose Security > MAC Address Binding and the following page appears. After MAC address binding is enabled at a port, only devices whose MAC addresses are consistent with the bound MAC address can communicate through the port. A port can be bound to a maximum of three MAC addresses. -
Page 55: Tcp/Udp Filter
DG-FS1526HP User Manual 7.9.2 TCP/UDP Filter Choose Security > TCP/UDP Filter and the following page appears. TCP/UDP port filter discards the set protocol packets at the secure WAN port. All ports can be set to secure WAN ports, and the available protocols include FTP, HTTP and TELNET. -
Page 56: Spanning Tree
DG-FS1526HP User Manual other protocols will be forwarded. Positive means the selected protocol will be forwarded and other protocol will be dropped. Select the protocol from the check box in the right area. Select the secure WAN port. Click Update to apply the settings. -
Page 57: Stp Bridge Settings
DG-FS1526HP User Manual 7.10.1 STP Bridge Settings Choose Spanning Tree > STP Bridge Settings, and the following page appears. Field Description STP Mode You can select it from the drop-down list:... - Page 58 DG-FS1526HP User Manual The valid range is 0 ~ 61440. The lower integer value for Bridge Priority precedence indicates the higher priority. And the integer should be a multiple of 4096. The valid range is 1 ~ 10. The unit is seconds. Hello time Hello Time indicates the interval of transmitting BPDU.
-
Page 59: Stp Port Settings
DG-FS1526HP User Manual 7.10.2 STP Port Settings Choose Spanning Tree > STP Port Settings, and the following page appears. - Page 60 DG-FS1526HP User Manual Field Description Port No. Select it from the drop-down list. Priority The valid range is 0 ~ 240. It should be a multiple of 16. Root Path Cost. The valid range is 1 ~ 200000000. 0 indicates Auto.
-
Page 61: Loopback Detection
DG-FS1526HP User Manual 7.10.3 Loopback Detection Choose Spanning Tree > Loopback Detection to configure loopback detection on an interface. When loopback detection is enabled and a port receives it’s own BPDU, the detection agent drops the loopback BPDU and places the interface in discarding mode. This... -
Page 62: Trunking
DG-FS1526HP User Manual These parameters are displayed: Field Description Loop back Detection Function Enables/Disables (Default: disable) Auto Wake Up Configures the interface for automatic loop back release. Wake-Up Time interval Defines the time interval for the port that will be released from the discarding state. - Page 63 DG-FS1526HP User Manual Choose Trunking, and the Link Aggregation Settings sub-menu is shown as below. Choose Trunking > Link Aggregation Settings, and the following page appears.
- Page 64 DG-FS1526HP User Manual Field Description System Priority The valid range is 1 ~ 65535. You can select it from the drop-down list: Link Aggregation Algorithm The system supports three link groups. Link Group 1: It includes the following ports: 1, 2, 3, 4.
- Page 65 DG-FS1526HP User Manual You can select it from the drop-down list: Time Out It is the time out of trunking, when the link port does not receive the corresponding LACPDU. You can select it from the drop-down list: Activity One switch should be set to Active between two switches.
-
Page 66: Dhcp Relay Agent
DG-FS1526HP User Manual 7.12 DHCP Relay Agent Choose DHCP Relay Agent and the submenu shown as below appears. 7.12.1 DHCP Relay Agent Field Description Select Enable or Disable to start or Stop the DHCP relay agent DHCP relay State respectively. -
Page 67: Relay Server
DG-FS1526HP User Manual 7.12.2 Relay Server Choose Relay Server and the following page appears. 7.12.3 VLAN MAP Relay Agent Choose VLAN MAP Relay Agent. After proper configuration, click Submit to apply the settings. Click Refresh to refresh the state of link group. -
Page 68: Configuration Backup And Recovery
DG-FS1526HP User Manual 7.13 Configuration Backup and Recovery Choose Backup/Recovery, and the following page appears. In this page, you can download the switch configuration to PC, or upload the configuration file to switch according to the page attention. -
Page 69: Miscellaneous Configuration
DG-FS1526HP User Manual 7.14 Miscellaneous Configuration Choose Miscellaneous, and the following page appears. In this page, you can enable Aging, VLAN striding and set VLAN uplink. -
Page 70: Snmp Settings
DG-FS1526HP User Manual 7.15 SNMP Settings Choose SNMP Settings, and the following page appears. In this page, you can configure SNMP related parameters. Field Description Community Name The community name used by SNMP. Access Right The right of community name. -
Page 71: Logout
DG-FS1526HP User Manual Field Description System Description System Contact System related information. System Location Trap State Enable Trap server Enable/disable SNMP trap/trap server. Trap Server Address Trap Server Status 7.16 Logout Choose Logout, and the following page appears. In this page, the system asks you whether to logout. Click Accept to logout. Click Back to... -
Page 72: Troubleshooting
DG-FS1526HP User Manual Troubleshooting If a fault occurs, refer to the following table for troubleshooting: Symptom Suggested Solution The Power indicator is not Check whether the power is correctly connected. ON after the system has Check whether the power switch is turned on. -
Page 73: Glossary
DG-FS1526HP User Manual Glossary Auto-negotiation: Auto-negotiation is an Ethernet procedure by which two connected devices choose common transmission parameters, such as speed, duplex mode and flow control. In this process, the connected devices first share their capabilities as for these parameters and then choose the highest performance transmission mode they both support. - Page 74 DG-FS1526HP User Manual FTP: File Transfer Protocol (FTP) is a standard network protocol used to copy a file from one host to another over a TCP-based network, such as the Internet. FTP is built on client-server architecture and utilizes separate control and data connections between the client and server.
- Page 75 DG-FS1526HP User Manual DHCP: Dynamic Host Configuration Protocol. Provides a framework for passing configuration information to hosts on a TCP/IP network. DHCP is based on the Bootstrap Protocol (BOOTP), adding the capability of automatic allocation of reusable network addresses and additional configuration options.
