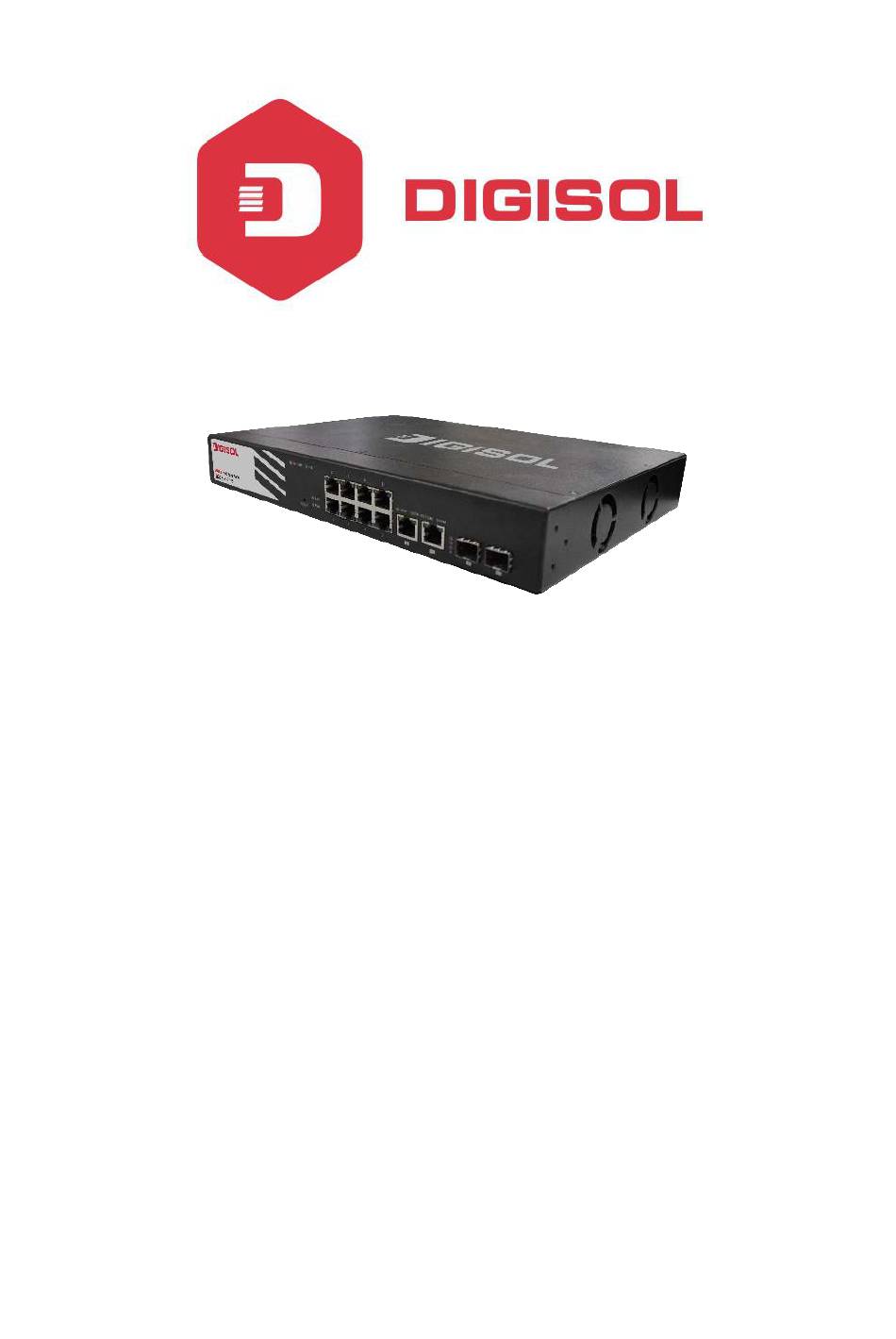

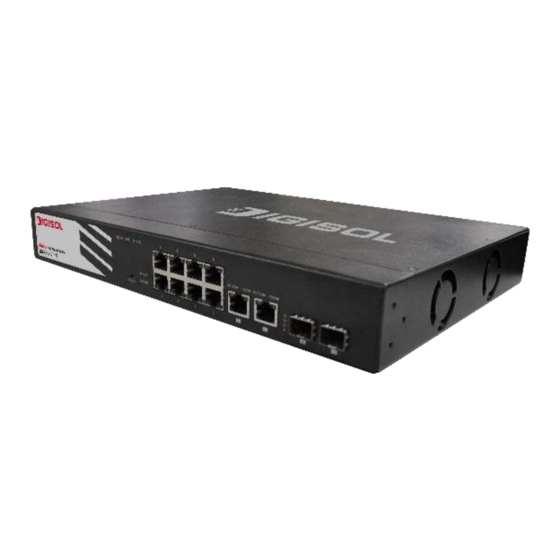

- Page 1 DG-FS1510HPE User Guide 8 PORT 10/100 MBPS WEB MANAGED POE SWITCH, 2 COMBO Ports V1.0 2018-01-24 As our products undergo continuous development the specifications are subject to change without prior notice...
- Page 2 Please check with your local distributors for latest information. No part of this document can be copied or reproduced in any form without written consent from the company. Trademark DIGISOL is a trademark of Digisol Systems Ltd. All other trademarks are the property of the respective manufacturers.
-
Page 3: Table Of Contents
DG-FS1510HPE User Guide Contents 1 Introduction............................4 2 Hardware Description........................5 2.1 Front Panel..........................5 2.2 LED Indicators........................5 2.3 Rear Panel..........................5 3 Hardware Installation........................6 3.1 Package contents........................6 3.2 Switch Installation.........................6 3.3 Grounding the Switch......................7 3.4 Plugging in the AC Power Cord................... 8 3.5 Connecting Ethernet Interface.................... -
Page 4: Introduction
DG-FS1510HPE User Guide Introduction Power-over-Ethernet (PoE) eliminates the need to run DC power to other devices on a wired LAN. Using a Power-over-Ethernet system, installers need to run only a single Category 5 Ethernet cable that carries both power and data to each device. This allows greater flexibility in the locating of network devices and, in many cases, significantly decreases installation costs. -
Page 5: Hardware Description
DG-FS1510HPE User Guide Hardware Description 2.1 Front Panel The front panel consists of LED indications, reset button and 8x10/100 PoE ports + 2x10/100/1000 Uplink pots. 2.2 LED Indicators Power LED: The Power LED lights up when the switch is connected to a power source. -
Page 6: Hardware Installation
DG-FS1510HPE User Guide Hardware Installation 3.1 Package contents Package contents include the following: PoE Switch:8x10/100 PoE ports with 2x10/100/1000 combo ports Ethernet Switch AC power cord Two (2) rack-mount pallet and Six (6) screws Four (4) adhesive-backed rubber feet ... -
Page 7: Grounding The Switch
DG-FS1510HPE User Guide Please be aware of following safety instructions when installing: Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. -
Page 8: Plugging In The Ac Power Cord
DG-FS1510HPE User Guide opening, as seen in the figure below. Step 3: Insert the ground screw into the ground-screw opening. Step 4: Using a screwdriver, tighten the ground screw to secure the ground cable to the switch. Step 5: Attach the terminal lug ring at the other end of the grounding cable to an appropriate grounding stud or bolt on rack where the switch is installed. - Page 9 DG-FS1510HPE User Guide UTP port explanation for Fast Ethernet is shown as follows: Pin NO. Description Name Note Data transmission positive TPTXD+ Output Data transmission negative TPTXD- Output Data receive positive TPRXD+ Input Data receive negative TPRXD- Input UTP port explanation for Gigabit Ethernet is shown as follows: Pin NO.
-
Page 10: Troubleshooting
DG-FS1510HPE User Guide Troubleshooting This section is intended to help solve the most common issues with the PoE Switch Incorrect connections Every port on this switch can automatically detect either straight or crossover cables when you link it with other Ethernet devices but other devices may demand a specific cable type (depending on the device). -
Page 11: Getting Started
DG-FS1510HPE User Guide include excessive cable length and too many repeaters (hubs) between end nodes. In addition, you should make sure that your network topology contains no data path loops. Between any two ends nodes, there should be only one active cabling path at any time. Data path loops will cause broadcast storms that will severely impact your network performance. -
Page 12: Configuration
DG-FS1510HPE User Guide A standard Ethernet cable Connect the Ethernet cable to any of the ports on the front panel of the switch and to the Ethernet port on the PC. Login Web-based Management In order to login and configure the switch via an Ethernet connection, the PC must have an IP address in the same subnet as the switch. -
Page 13: Administrator
DG-FS1510HPE User Guide 6.2 Administrator Administrator -> Authentication Configuration Here you can enter a new Username/Password and confirm it. Administrator -> System IP Configuration There are two ways for the switch to obtain an IP address: Static and DHCP (Dynamic Host Configuration Protocol). - Page 14 DG-FS1510HPE User Guide address (including network mask and default gateway) before using the default or previously entered settings. By default the IP setting is static mode with IP address is 192.168.0.1 and subnet mask is 255.255.255.0 Administrator -> System Status Comment: By entering a Comment, the device can more easily be recognized on the LAN.
- Page 15 DG-FS1510HPE User Guide Provide a safe reset option for the switch. All configuration settings in non-volatile RAM will be reset to factory default and then the switch will reboot. Administrator -> Firmware Update You must enter the password of device in order to determine the firmware needs to be updated.
-
Page 16: Port Management
DG-FS1510HPE User Guide Administrator -> Reboot Device Provide a safe way to reboot the system. Click Reboot to restart the switch. 6.3 Port Management Port Management -> Port Configuration In this page, the status of all ports can be monitored and adjusted for optimum configuration. - Page 17 DG-FS1510HPE User Guide Duplex: Copper connections can operate in Full-Duplex or Half-Duplex Mode Symmetric Pause: Asymmetric Pause: Backpressure: Addr. Learning: Enable or disable port learning MAC address. Port Management -> Port Mirroring Port Mirroring is a method of monitoring network traffic that forwards a copy of each incoming and/or outgoing packet from one port of the Switch to another port where the packet can be studied.
- Page 18 DG-FS1510HPE User Guide TX Rate: This allows you to enter data receive rate from 0 to 255 (base on speed base), 0 for full speed. RX Rate: This allows you to enter data transmit rate from 0 to 255 (base on speed base), 0 for full speed.
-
Page 19: Vlan Setting
DG-FS1510HPE User Guide 6.4 VLAN Setting VLAN Setting -> VLAN Mode A VLAN is a group of ports that can be anywhere in the network, but communicate as though they were in the same area. VLANs can be easily organized to reflect department groups (such as R&D, Marketing), usage groups (such as e-mail), or multicast groups (multimedia... -
Page 20: Per Port Counter
DG-FS1510HPE User Guide Add VLAN: Click to create a new VLAN name and to select VLAN ports. The VLAN name should be less than 10 characters. To save the members in a group, click Add. VLAN Setting -> 6.5 Per Port Counter Per Port Counter ->... -
Page 21: Qos Setting
DG-FS1510HPE User Guide 6.6 QoS Setting QoS Setting -> Priority Mode QoS Setting -> Port, 802.1p ,IP/DS based... -
Page 22: Security
DG-FS1510HPE User Guide QoS Setting -> TCP/UDP Port Based 6.7 Security Security -> MAC Address Binding... -
Page 23: Spanning Tree
DG-FS1510HPE User Guide Security -> TCP/UDP Filter 6.8 Spanning Tree Spanning Tree -> STP Bridge Settings... - Page 24 DG-FS1510HPE User Guide Spanning Tree -> STP Port Settings Spanning Tree -> Loopback Detection...
-
Page 25: Trunking
DG-FS1510HPE User Guide 6.9 Trunking Trunking -> Link Aggregation Settings The Trunking function allows the switch to combine two or four ports together to increase bandwidth. Select the Trunking Groups, choose the Members to be grouped together, and then click Submit to activate the selected Trunking Groups. -
Page 26: Dhcp Relay Agent
DG-FS1510HPE User Guide 6.10 DHCP Relay Agent DHCP Relay Agent -> DHCP Relay Agent DHCP Relay Agent -> Relay Server DHCP Relay Agent -> VLAN MAP Relay Agent... -
Page 27: Backup/Recovery
DG-FS1510HPE User Guide 6.11 Backup/Recovery Allow the current configuration settings to be saved to a file (not including the password), and if necessary, you can restore configuration settings from the file. Backup or restore the configuration file to or from your local drive. -
Page 28: Miscellaneous
DG-FS1510HPE User Guide 6.12 Miscellaneous Miscellaneous -> Miscellaneous Settings 6.13 SNMP Settings... -
Page 29: Logout
DG-FS1510HPE User Guide 6.15 Logout Click this to end this session Note: If you close the web browser without clicking the Logout button, it will be seen as an abnormal exit and the login session will still be occupied. 6.16 PoE PoE ->... - Page 30 DG-FS1510HPE User Guide Status: Can enable or disable the PoE function. Class: Class 0 is the default for PDs. However, to improve power management at the PSE, the PD may opt to provide a signature for Class 1 to 4.
- Page 31 DG-FS1510HPE User Guide Delay Mode: Enable or disable the port’s PoE Power Delay function. Delay Time: Set PoE power delay time (0~300). PoE -> PoE Scheduling PoE Schedule user can configure a duration time for PoE port as default value does not provide power.
- Page 32 DG-FS1510HPE User Guide This section provide the NTP Configuration of PoE Switch System Time: Display current time information NTP Server: Allow assign #1 or #2 NTP server IP address manually Time Zone: Allow select the time zone according to current location PoE ->...
- Page 33 DG-FS1510HPE User Guide Checking Time: Select time interval of ping action (1-10Min) Enable Checking Port. No: Select the port witch you want to enable PoE Auto-check...
- Page 34 DG-FS1510HPE User Guide...
