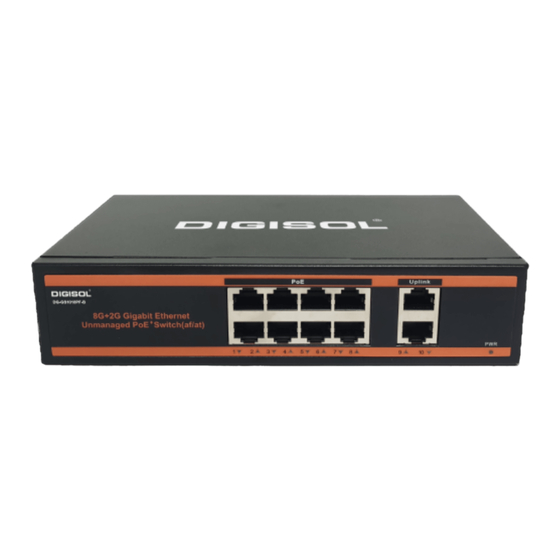

- Page 1 Quick Installation Guide 8 Port 10/100/1000Mbps Gigabit Switch with 2 Port 10/100/ 1000Mbps Uplink Ports DG-GS1010PF-B 2000Mbps V1.1 2024-01-04...
- Page 2 Please check with your local distributors for the latest information. No part of this document can be copied or reproduced in any form without written consent from the company. Trademarks: ® DIGISOL is a trademark of DIGISOL SYSTEMS LTD. All other trademarks are the property of the respective manufacturers.
- Page 3 Package Contents : The following items should be present in your package: • Switch (1 No) • Power Cord (1 No) • Quick Installation Guide Make sure that the package contains above items. Product Overview : This document will guide you on the correct use of products, to prevent any loss or damage to the device to avoid void of warranty.
- Page 4 Warning : The product must use the wired components (power cable) recommended by the region and be used within its permissible specifications. Use the power supply that meets the requirements of SELV (Safe Ultra-Low Voltage) and conform to IEC 60950-1. The rated voltage of Limited Power Source (restricted power supply) is used for power supply.
- Page 5 Product Characteristics : • Supports 2 *1000 Mbps uplink ports and 8 *1000 Mbps PoE ports. • The switching capacity is 20 Gbps. • Support IEEE802.3af, IEEE802.3at standard PoE total power 150W. • MAC automatic learning and aging, the capacity of MAC address list is 8K. •...
- Page 6 (2) Check whether the network cables and other transmission lines to be used are connected to the other equipment (3) Connect DG-GS1010PF-B to the RJ45 interface and PoE network camera with network cable. (4) Connect the Uplink port to the NVR port with the network cable.
- Page 8 DIGISOL SYSTEMS LIMITED L-7, Verna Industrial Estate, Digisol is a Subsidiary of Smartlink Holdings Limited Salcete, GOA - 403722 www.digisol.com 1800 209 3444 helpdesk@digisol.com...
