5
OPTIONAL PRODUCTS

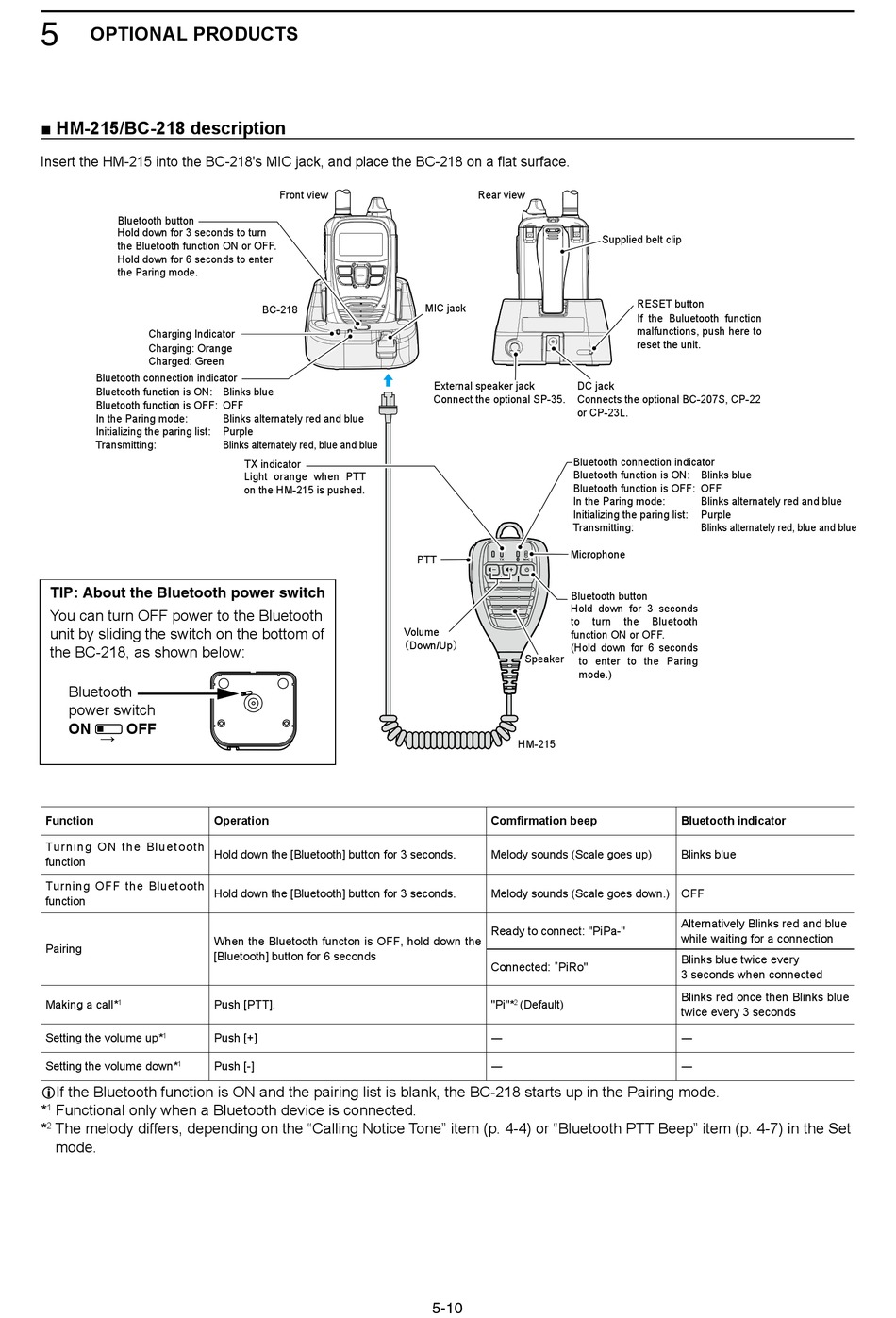

■ HM-215/BC-218 description

Insert the HM-215 into the BC-218's MIC jack, and place the BC-218 on a flat surface.
Bluetooth button
Hold down for 3 seconds to turn
the Bluetooth function ON or OFF.
Hold down for 6 seconds to enter
the Paring mode.
Charging Indicator
Charging: Orange
Charged: Green
Bluetooth connection indicator
Bluetooth function is ON: Blinks blue
Bluetooth function is OFF: OFF
In the Paring mode:
Initializing the paring list:
Transmitting:
TIP: About the Bluetooth power switch
You can turn OFF power to the Bluetooth
unit by sliding the switch on the bottom of
the BC-218, as shown below:
Bluetooth
power switch
ON OFF
→
Function
Turning ON the Bluetooth
function
Turning OFF the Bluetooth
function
Pairing
Making a call*
1
Setting the volume up*
1
Setting the volume down*
1
LIf the Bluetooth function is ON and the pairing list is blank, the BC-218 starts up in the Pairing mode.
* Functional only when a Bluetooth device is connected.
1
* The melody differs, depending on the "Calling Notice Tone" item (p. 4-4) or "Bluetooth PTT Beep" item (p. 4-7) in the Set
2
mode.
Front view
BC-218
Blinks alternately red and blue
Purple
Blinks alternately red, blue and blue
TX indicator
Light orange when PTT
on the HM-215 is pushed.
Operation
Hold down the [Bluetooth] button for 3 seconds.
Hold down the [Bluetooth] button for 3 seconds.
When the Bluetooth functon is OFF, hold down the
[Bluetooth] button for 6 seconds
Push [PTT].
Push [+]
Push [-]
Rear view
MIC jack
External speaker jack
Connect the optional SP-35.
PTT
Volume
（Down/Up）
Speaker
HM-215
Comfirmation beep
Melody sounds (Scale goes up)
Melody sounds (Scale goes down.) OFF
Ready to connect: "PiPa-"
Connected: "PiRo"
"Pi"* (Default)
2
―
―
5-10
Supplied belt clip
RESET button
If the Buluetooth function
malfunctions, push here to
reset the unit.
DC jack
Connects the optional BC-207S, CP-22
or CP-23L.
Bluetooth connection indicator
Bluetooth function is ON: Blinks blue
Bluetooth function is OFF: OFF
In the Paring mode: Blinks alternately red and blue
Initializing the paring list: Purple
Transmitting: Blinks alternately red, blue and blue
Microphone
Bluetooth button
Hold down for 3 seconds
to turn the Bluetooth
function ON or OFF.
(Hold down for 6 seconds
to enter to the Paring
mode.)
Bluetooth indicator
Blinks blue
Alternatively Blinks red and blue
while waiting for a connection
Blinks blue twice every
3 seconds when connected
Blinks red once then Blinks blue
twice every 3 seconds
―
―
