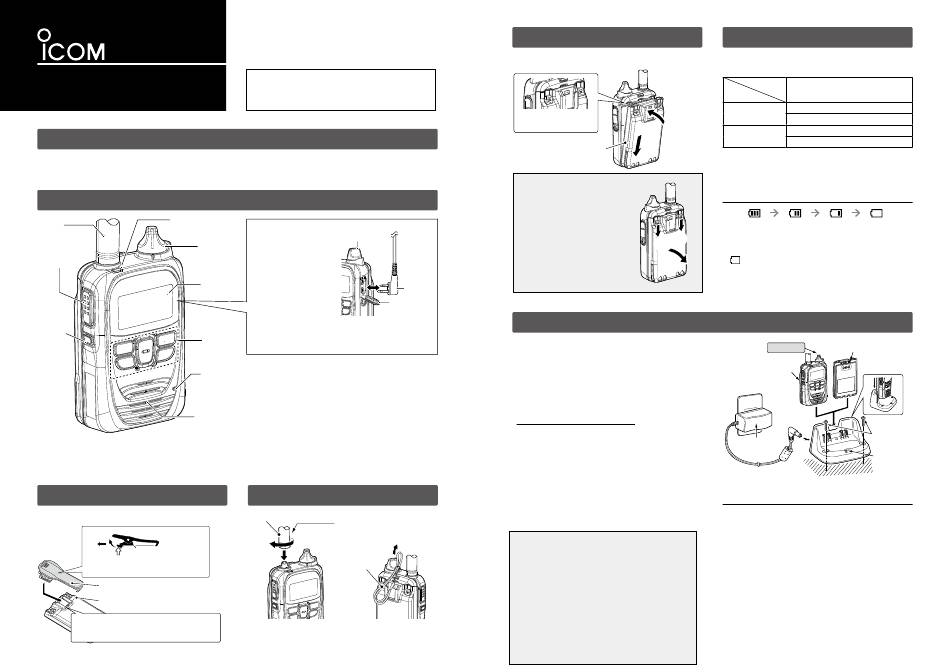

Icom IP501H User Manual

GUIDE
IP ADVANCED RADIO SYSTEM
IP501H
1. SUPPLIED ACCESSORIES
• Battery pack （BP-272） ....................................1
• Belt clip (MB-135)...........................1
• Hand strap ...................................................1

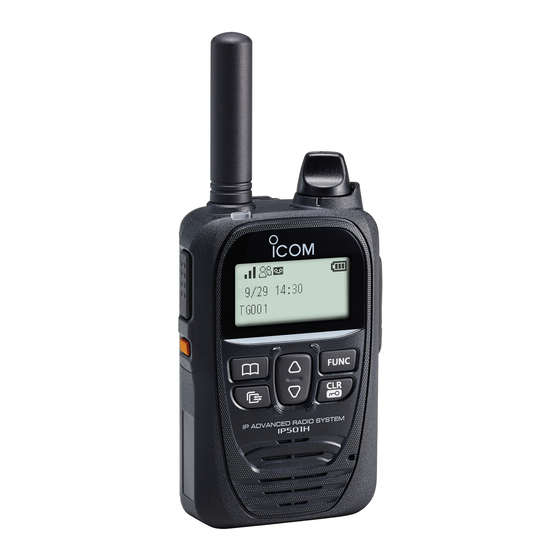

2. PANEL DESCRIPTION
[TX/RX] indicator
Antenna
[PWR/VOL]
dial
[PTT] switch
Function
screen
[Optional]
key
★1
Keypad
(Refere to the
other side.)
Microphone
Speaker
3. ATTACHING THE BELT CLIP
※ Remove the battery pack before attaching the belt clip.
q
w
Lift the tab up (1), and slide the belt
clip in the direction of the arrow (2).
Supplied belt clip
Battery pack
Slide the belt clip in the direction of the
arrow until the belt clip locks in place, and
makes a 'click' sound.
Thank you for choosing the IP501H
ip advanced radio
.
system communication terminal
READ ALL INSTRUCTIONS carefully and completely
before using this product.
• Antenna ....................................... 1
[PWR/VOL] dial
When connecting optional
equipment
◎ Be sure to turn power
OFF before connecting
or disconnecting optional
equipment to or from the
jack.
Connector
◎ Hold the plug when you
cover
remove the cable.
◎ Insert the plug securely when connecting the cable.
◎ CAUTION: Attach the jack cover when optional equipment is
not used.
★1 Ask for your dealer about the assigned function.
★2 While connecting an optional speaker microphone, the audio is not output from
the internal speaker.
NOTE: Instructions and screens on this guide may differ, depending on the
settings.
★2
4. ATTACHING THE ANTENNA/HAND STRAP
Supplied antenna
Hold this part to turn.
Supplied
hand strap
5. ATTACHING THE BATTERY PACK
Follow the order (1 ~ 2) on the illustration below.
After attaching, check that
the battery pack is securelly
attached.
Battery pack
CAUTION
Even when the communication terminal
power is OFF, a small current still flows
in the communication terminal. Remove
the battery pack or case when not
using it for a long time. Otherwise, the
batteries will become exhausted.
NOTE: Turn OFF the power before
remove the battery pack in
order (1 ~ 2) on the illustration
to the left.
Plug
7. BATTERY CHARGING （Using the BC-202）
Fully charge the battery pack when fist time of use or has not
been used for more than 2 months.
WARNING! NEVER charge the communication
terminal during a lightning storm. It may result in an
electric shock, cause a fire or damage the communication
terminal. Always disconnect the power adapter
before a storm.
• Turn OFF the power before charging.
Otherwise, the battery may not be fully charged.
• Insert the communication terminal (battery attached to
the communication terminal) into the charger as shown
to the light.
• Charging indicator lights orange while charging. When
the battery pack is fully charged, lights green.
If the indicator blinks in orange, read the IP501H
instruction manual on the Icom web site.
• The charger automatically restarts charging when the
attached battery pack voltage drops.
• Disconnect the AC cable from the outlet when the
charger is not in use.
RDANGER
• Use and charge only specified Icom battery
packs with Icom communication terminals or Icom
chargers. Only Icom battery packs are tested and
approved for use with Icom communication terminals
or charged with Icom chargers. Using thirdparty or
counterfeit battery packs or chargers may cause
smoke, fire, or cause the battery to burst.
• Use the battery only with the communication
terminal for which it is specified. Never use a battery
with any other equipment, or for any purpose that is
not specified in this instruction manual.
• Read "PRECAUTION" before attempt to charging
the battery pack.
6. STANDARD CHARGING TIME AND
BATTERY LIFE
NOTE: Operating time or charging time may be shorter depending
on the environment such as roaming frequency.
Battery
Spec item
17 hours (Approximately)
Operating time
TX:RX:Stand-by=5:5:90
w
q 3.5 hours (Approximately)
Charging time
Charging with BC-202 or BC-211
※ The supplied battery is BP-272.
• Immediately stop using the battery if it emits an abnormal
odor, heats up, or is discolored or deformed. If any of
these conditions occur, contact your Icom dealer or
distributor.
About the remaining voltage indication
sufficient exhausted a
nearing exhaustion
capacity little.
(Charging is necessary)
q
q
※ When the battery charge is almost exhausted, the battery status indicator,
" ," starts blinking, and warning beeps sound every 30 seconds.
w Charge the battery pack when the beeps begin to sound.
※ When "LOW BATTERY" is displayed, the communication terminal power
will automatically turn OFF soon.
Turn OFF
[Terminal+Battery pack]
AC Outlet
BC-123S
(Supplied with BC-202)
Optional rapid charger BC-202
About the battery life cycle
BE SURE to replace the battery pack with a new one after five
years, even if still holds a charge. The material inside the battery will
deteriorate after a period of time, even with little use. The estimated
number of times you can charge the battery is between 300 and 500.
Even when the battery appears to be fully charged, the operating
time of the communication terminal may become short when:
・ Approximately five years have passed since the battery was
manufactured.
・ The battery has been repeatedly charged.
BP-272
Blink
Exhausted
(Charging required)
[Battery pack]
Tapping screw
(Purchase separately)
Charge indicator
Charging ： Orange
Finished ： Green
