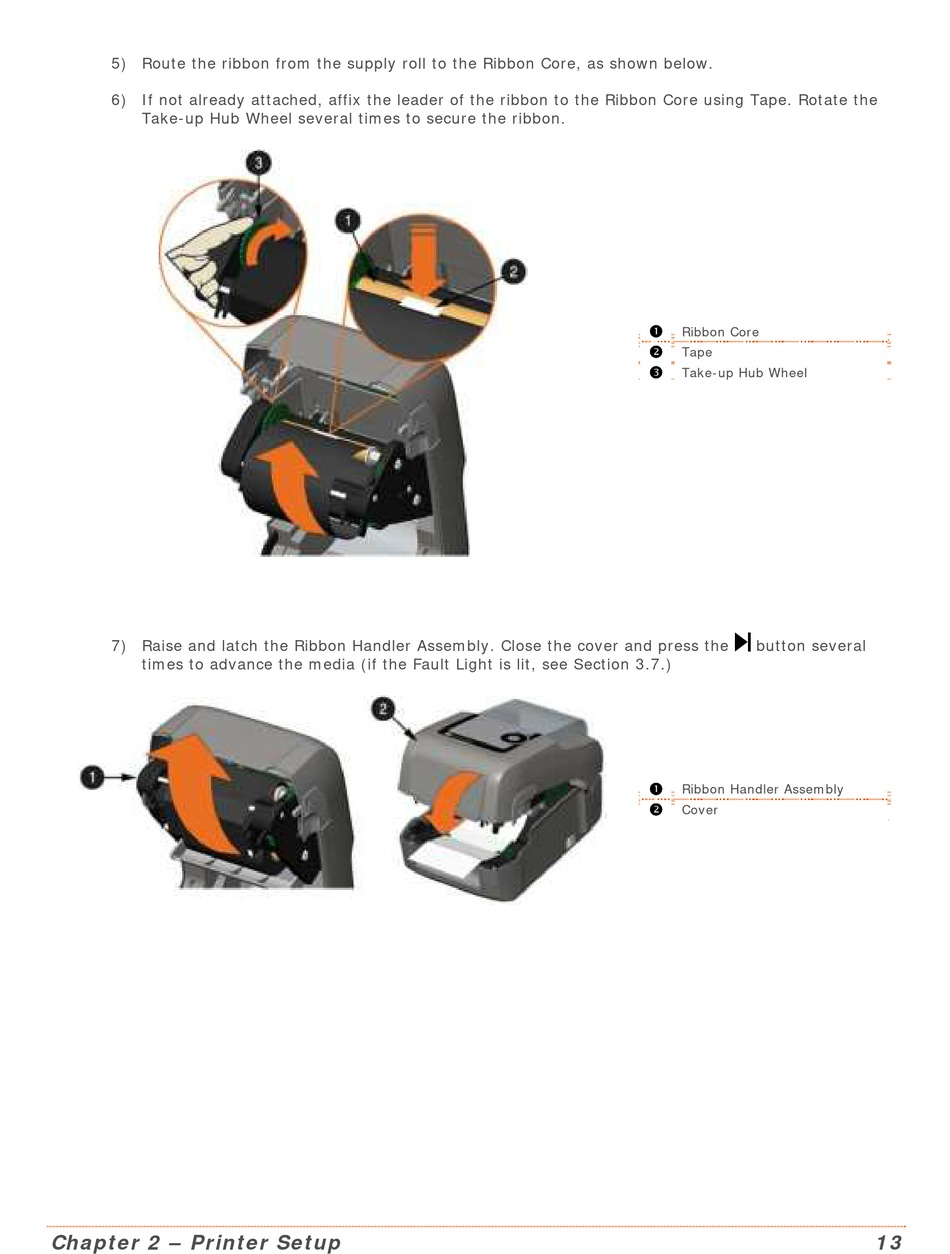

5) Rout e t he ribbon from t he supply roll t o t he Ribbon Core, as shown below.
6) I f not already at t ached, affix t he leader of t he ribbon t o t he Ribbon Core using Tape. Rot at e t he
Take- up Hub Wheel several t im es t o secure t he ribbon.
7) Raise and lat ch t he Ribbon Handler Assem bly. Close t he cover and press t he
t im es t o advance t he m edia ( if t he Fault Light is lit , see Sect ion 3.7.)
Ch a pt e r 2 – Pr in t e r Se t u p
312
312

Ribbon Core

Tape

Take- up Hub Wheel
but t on several

Ribbon Handler Assem bly

Cover
