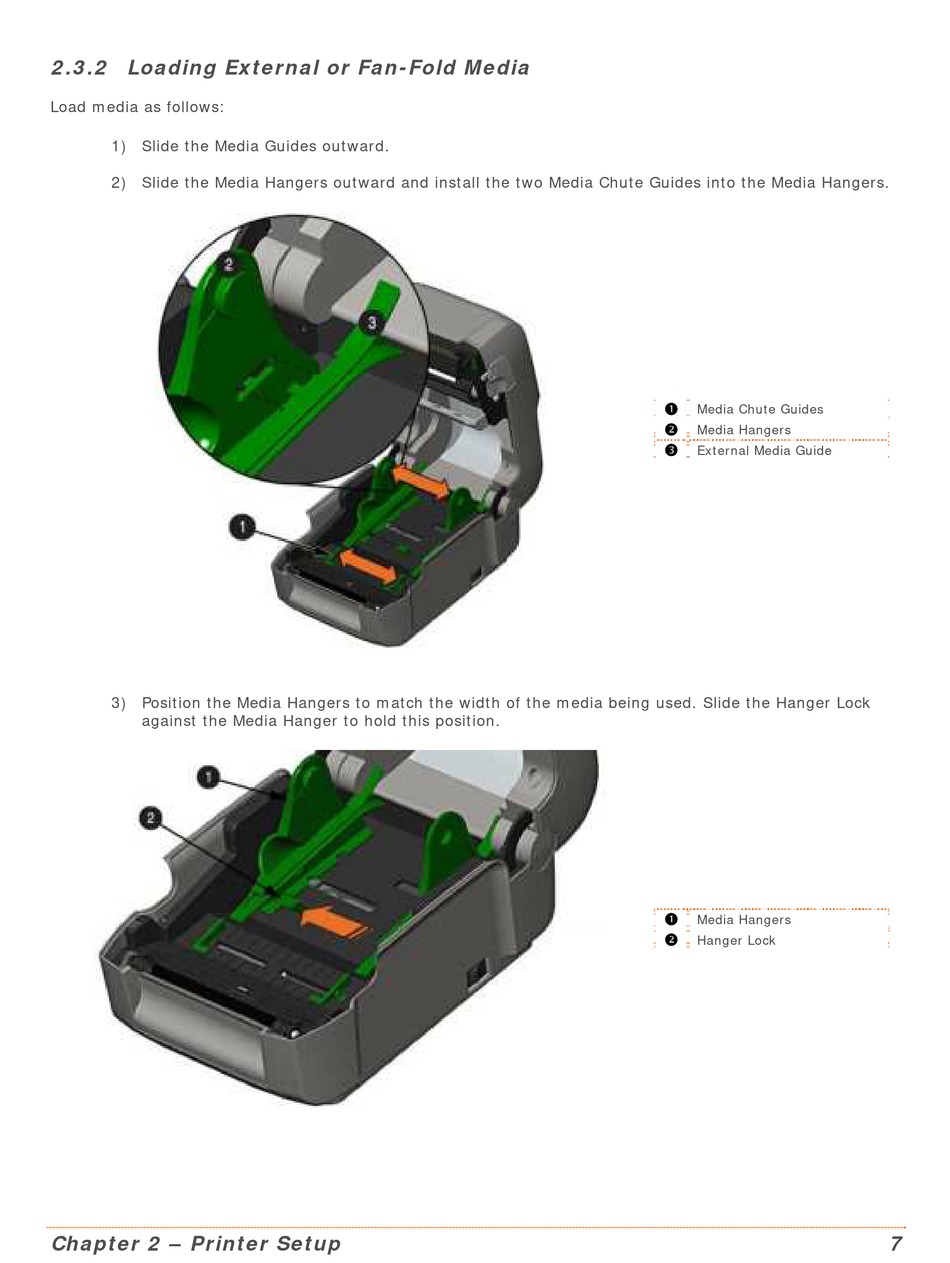

2 .3 .2 Loa din g Ex t e r n a l or Fa n - Fold M e dia
Load m edia as follows:
1) Slide t he Media Guides out ward.
2) Slide t he Media Hangers out ward and inst all t he t wo Media Chut e Guides int o t he Media Hangers.
3) Posit ion t he Media Hangers t o m at ch t he widt h of t he m edia being used. Slide t he Hanger Lock
against t he Media Hanger t o hold t his posit ion.
Ch a pt e r 2 – Pr in t e r Se t u p

Media Chut e Guides

Media Hangers

Ext ernal Media Guide

Media Hangers

Hanger Lock
7
