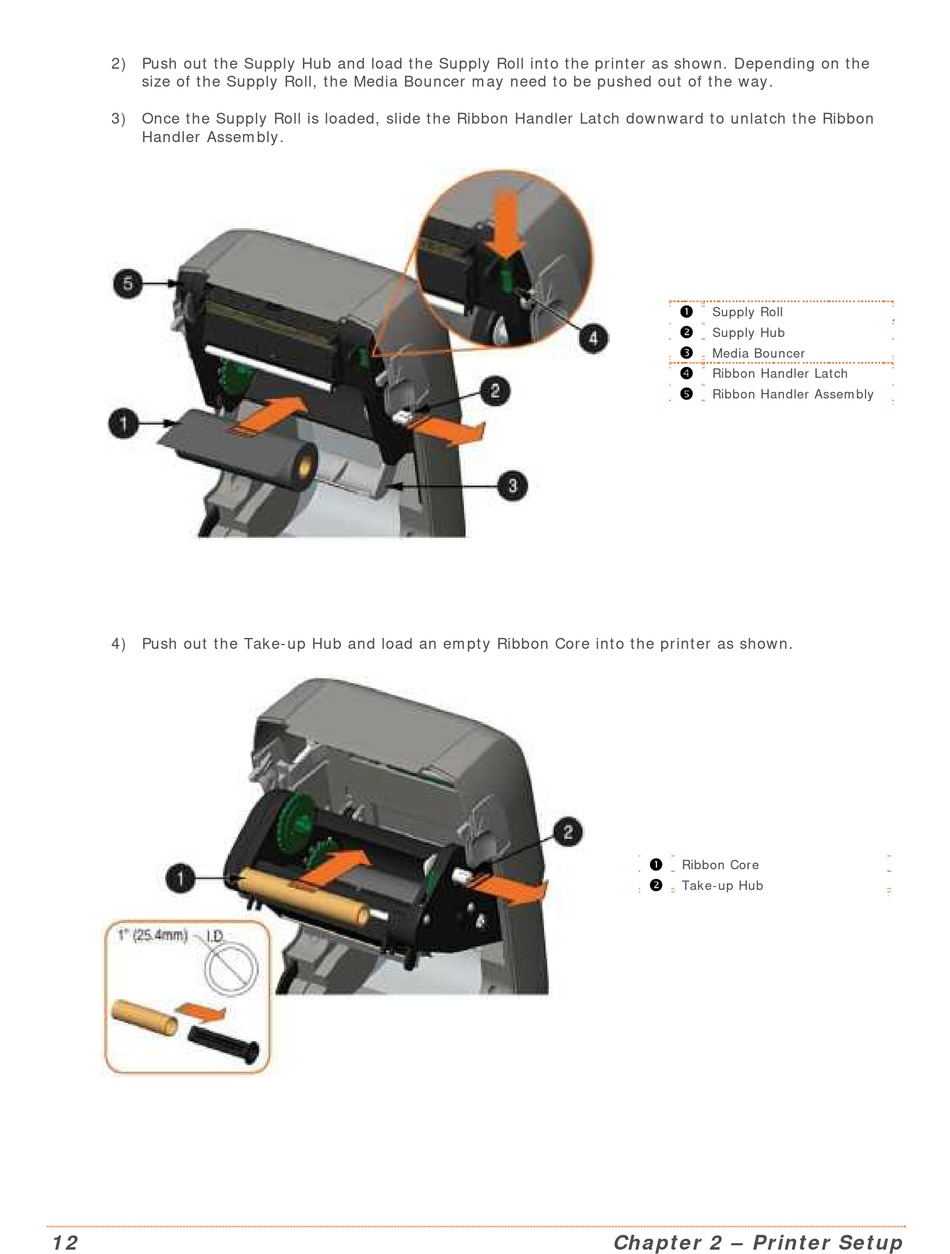

2) Push out t he Supply Hub and load t he Supply Roll int o t he print er as shown. Depending on t he
size of t he Supply Roll, t he Media Bouncer m ay need t o be pushed out of t he way.
3) Once t he Supply Roll is loaded, slide t he Ribbon Handler Lat ch downward t o unlat ch t he Ribbon
Handler Assem bly.
4) Push out t he Take- up Hub and load an em pt y Ribbon Core int o t he print er as shown.
1 2
312
312

Supply Roll

Supply Hub

Media Bouncer

Ribbon Handler Lat ch

Ribbon Handler Assem bly

Ribbon Core

Take- up Hub
