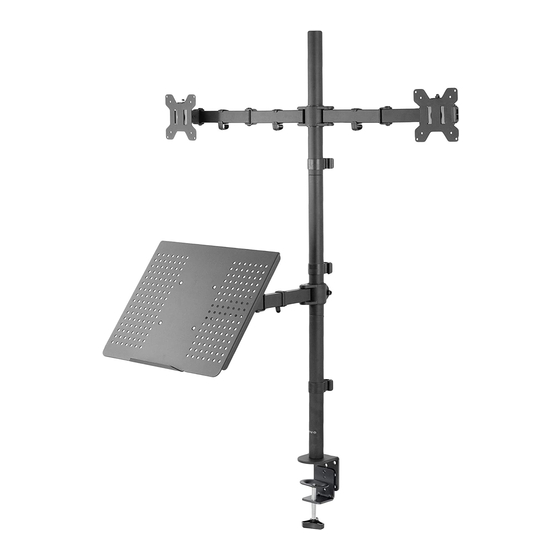

Dual Monitor Extra Tall Desk Mount
with Laptop Holder
Instruction Manual
SKU: STAND-V012L
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v012l
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V012L
Summary of Contents for Vivo STAND-V012L
- Page 1 Dual Monitor Extra Tall Desk Mount with Laptop Holder Instruction Manual SKU: STAND-V012L Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v012l GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Tools Needed
TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22lbs Failure to do so may result in serious injury. (9.98kg) Phillips PER ARM Drill Wrench Screwdriver ASSEMBLY STEPS PRE-ASSEMBLY Thread the Pole Set (A) together as shown below. STEP 1 Option A: Desk Clamp Install Install the clamp brace (C) to the pole (A) using x3 M5x14 bolts (F). - Page 4 STEP 1 (Continued) Option B: Grommet Install If desk does not have an existing grommet hole, drill a 3/8” (10mm) diameter hole at the desired position through the mounting surface. Completely disassemble clamp (B) into individual parts. Set knob (B1) and clamp plate (B2) aside for later use.
- Page 5 STEP 3 FOR LAPTOP Attach VESA plate (E) to laptop tray (Q) using bolts (R) and M4 nuts (S). FOR FLAT BACK MONITOR Attach VESA plate (E) to the monitor using M4x12 thumb screws (N). NOTE: Hand tighten screws to avoid over tightening.
- Page 6 STEP 4 Slide the monitor onto the head of Swivel Arm (D) as shown in the diagram. Install the security Nut (H). Make sure the security nut is installed before you rotate the monitor. Repeat for the laptop tray (Q).
- Page 7 STEP 5 If needed, tighten the tilt joint bolt with the medium Allen wrench (M) to fix the tilt angle. Use the medium Allen wrench (M) to adjust the swivel joints as needed. To level the monitors, remove the nut (H) and turn the bolt with the Allen key (M) to raise or lower the monitor.
- Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
